1. Introduction and Goals

We are a team of four Software Engineering students from the University of Oviedo developing YOVI, a web-based gaming platform for the company Micrati as part of our Architecture of Software Systems (ASR) course project.

The platform will allow users to play Game Y against AI opponents with strategies and track their games via their own account. Our solution is built with a service-oriented architecture comprising three main components: a React frontend (webapp/), a Node.js user service (users/), and a Rust game engine (gamey/), all orchestrated via an API gateway. This architecture ensures clarity, maintainability, and scalability while fulfilling both academic requirements and player expectations.

This document outlines the architectural vision for YOVI, balancing functionality with clarity and maintainability to meet both academic requirements and player expectations.

1.1. Requirements Overview

The YOVI system is a web-based gaming platform based on Game Y, developed for the company Micrati. The main goal is to allow users to play matches against the machine or via bots, with support for registration and statistics functionalities.

Key functional requirements include:

  • Public deployment and web accessibility.

  • Development of a web application in React that allows playing at least the classic version of Game Y.

  • Implementation of a Rust module to verify the game state and suggest moves to the bot.

  • User registration and access to match history.

  • Support for multiple strategies and difficulty levels in the vs. machine mode.

1.2. Quality Goals

The main quality attributes for the system architecture are:

  • Functionality: The system must correctly implement Game Y rules and provide at least one working AI strategies.

  • Usability: The React-based interface must be intuitive for players. The component-based architecture of the webapp supports future internationalization (i18n)

  • Modularity & Maintainability: The clear separation into services ensures that components can be developed, tested, and extended independently.

  • Deployability & Availability: Using Docker and Docker Compose ensures that the multi-service application can be consistently deployed in any environment. The gateway provides a single entry point, simplifying deployment

  • Testability: The separation of concerns allows for comprehensive testing at multiple levels: unit tests in Rust and Node.js, integration tests between services, and end-to-end tests for the webapp

1.3. Stakeholders

Role/Name Contact Expectations

Development Team

yovi_en2d

Implement a scalable, maintainable, and well-documented solution.

End Users

N/A

Usable, stable interface with complete gameplay and statistics features.

Micrati (Client)

N/A

Fulfillment of game, API, and public deployment requirements.

Project Evaluators

Arquisoft

Compliance with documentation, testing, deployment, and code quality criteria.

Bot Developers

API users

Well-documented and stable API for automated integration.

2. Architecture Constraints

This section lists the main constraints that shape the architecture of the YOVI system. Unlike requirements, constraints define how it must be done or which technologies must be used. These are non-negotiable boundaries within which we must operate.

2.1. Technical Constraints

These constraints are imposed by the client (Micrati). They dictate the technology stack and communication protocols.

Constraint

Explanation

Rationale

Negotiable?

Frontend Technology

The web application MUST be implemented in TypeScript. React is the chosen framework but not strictly mandatory.

The client requires TypeScript for type safety and maintainability.

No (TypeScript is mandatory)

Game Engine Language

The game logic module MUST be implemented in Rust.

Performance and safety requirements for game state validation and AI strategies.

No

Communication Protocol

All communication between the webapp and game engine MUST use JSON messages following YEN notation for game states.

Standardized format specified by the client for interoperability.

No

Public API

The system MUST expose a documented public API that allows external bots to interact.

Core requirement from Micrati for third-party integration.

No

Deployment

The complete system MUST be publicly accessible via the Web using HTTPS.

Ensures secure communication and production readiness.

No

Containerization

All services MUST be containerized using Docker with a root-level docker-compose.yml.

Ensures consistent deployment across environments.

Partial (format flexible)

Database

User data MUST be persisted. MongoDB is the current implementation, but alternatives are possible.

Data persistence is mandatory; the specific database technology is negotiable.

Yes (technology choice)

2.2. Domain Constraints

These constraints come from the game domain itself and the specific requirements of Game Y.

Constraint

Explanation

Rationale

Negotiable?

Game Rules

The system MUST correctly implement the rules of Game Y (classic version minimum).

Core business requirement; incorrect game rules make the product worthless.

No

Game Mode

A player-versus-machine mode MUST be available.

Primary use case for the platform.

No

Board Size

The game MUST support variable board sizes configurable by the user.

Required for different difficulty levels and game variants.

No

AI Strategies

The computer MUST implement more than one strategy, selectable by the user.

Demonstrates AI sophistication and provides varied gameplay.

No

User Data

Users MUST be able to register and access their match history.

Basic user management requirement.

No

2.3. Organizational Constraints

These constraints govern our development process and team practices.

Constraint

Explanation

Rationale

Negotiable?

Documentation Standard

Architecture MUST be documented following the Arc42 template.

Course requirement for the ASR lab.

No

Decision Recording

Architectural decisions MUST be recorded as ADRs (Architectural Decision Records) in the wiki of GitHub.

Ensures traceability and rationale documentation.

No

Version Control

Development MUST use Git with the repository hosted on GitHub (Arquisoft/yovi_en2c).

Course requirement for collaboration and evaluation.

No

Branching Strategy

A branch-based workflow MUST be followed (feature branches, pull requests, code reviews).

Ensures code quality and team coordination.

Partial (specific workflow details negotiable)

Testing Requirements

The system MUST include unit tests, integration tests, and end-to-end tests.

Quality assurance requirement from course evaluation.

No

Test Coverage

Code coverage MUST meet thresholds defined in sonar-project.properties (minimum 80%).

Quality gate for acceptance.

No

CI/CD

Automated build, test, and deployment MUST be implemented via CI/CD pipelines (GitHub Actions).

Ensures reproducible builds and deployment automation.

No

Issue Tracking

All tasks MUST be tracked using GitHub Issues.

Project management and traceability requirement.

No

2.4. External Constraints

These constraints come from external stakeholders and the operating environment.

Constraint

Explanation

Rationale

Negotiable?

Bot Integration

External bots can ONLY interact through the public API exposed via the secure HTTPS endpoint; no direct access to internal services is allowed.

Security and encapsulation requirement.

No

API Documentation

The public API MUST be documented for third-party developers.

Enables external developers to build compatible bots.

Partial (documentation format negotiable)

YEN Notation Compliance

Any system claiming to support Game Y MUST use YEN notation for game state representation.

Industry standard for this game family.

No

Public Accessibility

The deployed system MUST be accessible without special network configuration.

End users and evaluators need to access the platform easily.

No

2.5. Quality Constraints

These constraints define the minimum acceptable quality levels the architecture must guarantee.

Constraint

Target

Measurement

Negotiable?

Response Time

Game engine must respond within 2 seconds for standard board sizes.

Performance testing with realistic loads.

Partial (exact threshold)

Concurrent Users

Support at least 10 concurrent users without degradation.

Load testing simulation.

Yes (scale up with resources)

Availability

System must achieve 99% uptime during evaluation period.

Monitoring and observability tools.

Partial (percentage)

2.6. Implications of These Constraints

These constraints collectively shape our architecture in specific ways:

  • Three-service structure: The technology constraints (TypeScript + Rust) force a separation between frontend (webapp) and game engine (gamey). The user management requirement adds a third service (users).

  • API Gateway necessity: Multiple services with public API exposure require a gateway for request routing and security.

  • Reverse proxy layer: A reverse proxy is required to handle HTTPS, enforce secure communication, and route external traffic to the appropriate internal services.

  • Docker standardization: The containerization constraint ensures consistent development and deployment environments.

  • Documentation overhead: Arc42 and ADR requirements mean we must invest time in documentation alongside development.

  • Testing necessity: The testing requirements force us to design for testability from the start.

3. YOVI System Architecture Documentation – Context and Scope

4. Context and Scope

This section delimits the YOVI system from its environment. Following Arc42 guidelines, we separate business context (what the system does) from technical context (how it communicates).

4.1. Business Context

The YOVI system is a web-based gaming platform for Game Y. From a business perspective, it provides two distinct value propositions:

  • For human players: An intuitive web interface to play Game Y against AI opponents, register, and track performance.

  • For bot developers: A public API that allows automated bots to interact with the game engine, request moves, and play matches.

The system is self-contained; all game logic, user management, and AI strategies are implemented within YOVI boundaries.

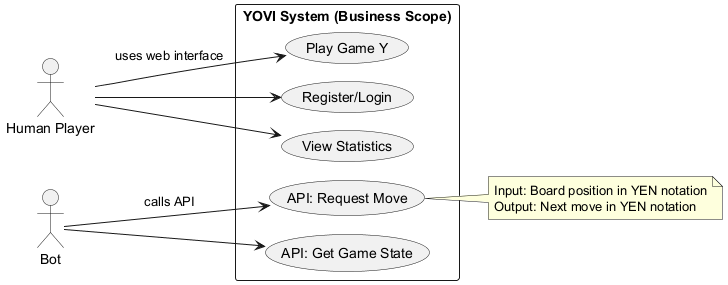

4.1.1. Business Context Diagram

Business Context Diagram YOVI System

4.1.2. Business Interfaces

Interface Description Input Output Communication Partner

Game Play Interface

Web UI for human players to interact with the game

Mouse clicks, keyboard

Visual board, game state

Human Player

User Management

Registration and login interface

Username, password

Session token, user profile

Human Player

Statistics Interface

Access to match history and metrics

User ID

Win/loss records, game history

Human Player

Bot API - Move Request

Programmatic interface for bots to get next move

Board state (YEN), strategy

Move (YEN)

Bot

Bot API - Game State

Programmatic interface to query game status

Game ID

Current board, turn, winner

Bot

4.2. Technical Context

From a technical perspective, the YOVI system is implemented as five independent services communicating via HTTP/REST, plus an API gateway that routes external requests.

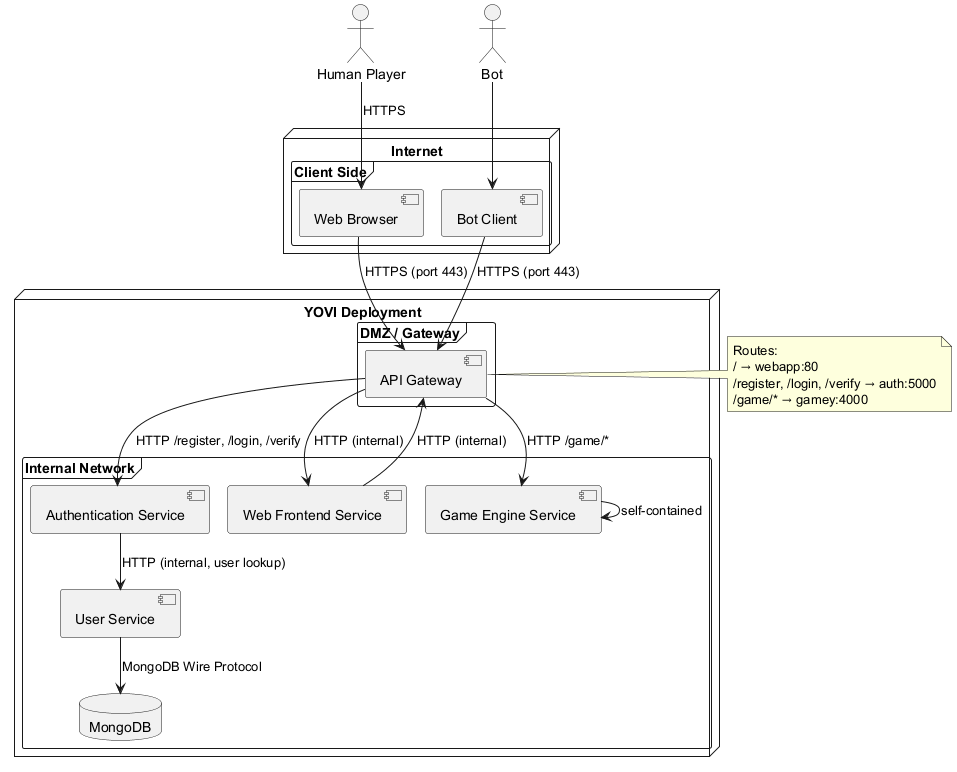

4.2.1. Technical Context Diagram

Technical Context Diagram YOVI System

4.2.2. Technical Interfaces and Channels

Business Interface Technical Channel Protocol Data Format

Game Play UI

Browser ↔ Gateway

HTTPS

HTML/CSS/JS + JSON

User Registration

Browser ↔ Gateway ↔ Auth ↔ Users

HTTPS → HTTP → HTTP

JSON

User Login

Browser ↔ Gateway ↔ Auth ↔ Users

HTTPS → HTTP → HTTP

JSON

Token Verification

Browser ↔ Gateway ↔ Auth

HTTPS → HTTP

JSON (JWT)

Statistics Retrieval

Browser ↔ Gateway ↔ Users

HTTPS → HTTP

JSON

Bot API - Move Request

Bot ↔ Gateway ↔ Gamey

HTTPS → HTTP → JSON

JSON (YEN)

Bot API - Game State

Bot ↔ Gateway ↔ Gamey

HTTPS → HTTP → JSON

JSON (YEN)

Game Logic Execution

Gateway ↔ Gamey Service

HTTP (internal)

JSON (YEN)

Database Access

Users Service ↔ MongoDB

MongoDB Wire Protocol

BSON

5. Solution Strategy

This section summarizes the fundamental decisions that shape the YOVI system architecture. Each decision is motivated by specific constraints (from section 2) and quality goals (from section 1), and forms the foundation for detailed design decisions in later sections.

5.1. 1. Technology Decisions

These decisions are primarily driven by the technical constraints defined in section 2 (TypeScript, Rust, Docker) and the quality goal of maintainability.

Decision Rationale Constraints/Goals Addressed Alternatives Considered

Frontend: React + TypeScript

React’s component model enables UI reuse and supports future i18n. TypeScript is mandatory per client.

Technical Constraint: TypeScript; Quality: Usability, Maintainability

Vue, Angular (rejected due to team familiarity)

User Service: Node.js/Express

Lightweight, fast for prototyping, integrates well with MongoDB. Team has JavaScript expertise.

Quality: Development speed, Testability

Python/Flask, Java/Spring (rejected: heavier, slower for simple CRUD)

Game Engine: Rust

Mandated by client. Provides memory safety and performance for game logic and AI.

Technical Constraint: Rust; Quality: Performance, Reliability

C++, Go (not allowed by constraint)

Database: MongoDB

Schema flexibility for user data, easy integration with Node.js, quick setup.

Quality: Development speed, Deployability

PostgreSQL (rejected: schema changes slower for evolving requirements)

Containerization: Docker + docker-compose

Ensures consistent environments across dev/test/prod. Required for deployment.

Technical Constraint: Containerization; Quality: Deployability

Manual deployment (rejected: inconsistent, error-prone)

CI/CD: GitHub Actions

Integrated with repository, automates testing and deployment, free for students.

Organizational Constraint: CI/CD; Quality: Testability

Jenkins (rejected: requires separate infrastructure)

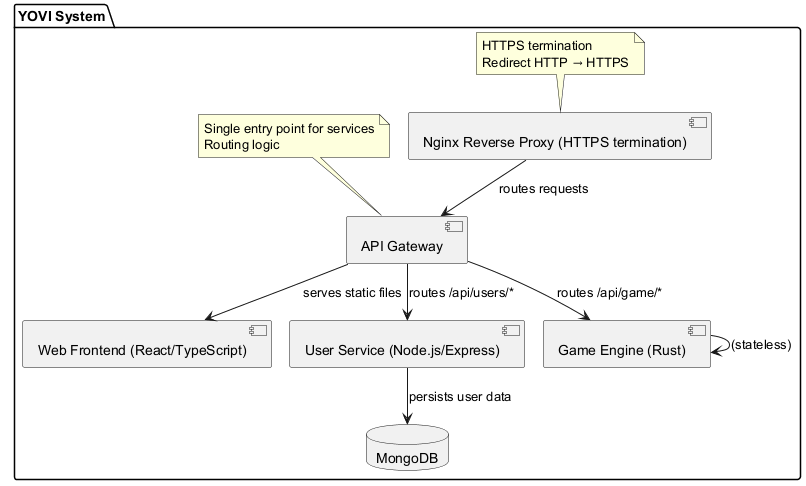

5.2. 2. Top-Level Decomposition (Architectural Pattern)

Decision: Microservices architecture with three independent services (webapp, users, gamey) plus an API gateway behind an Nginx reverse proxy.

Reasons: - Technology constraints (TypeScript + Rust) force separation—cannot run in same process - Separating user management from game logic allows independent scaling and development - The API gateway provides a single entry point, hiding internal complexity and enforcing security - Nginx reverse proxy handles HTTPS termination and redirects HTTP → HTTPS

How it maps to quality goals:

  • Maintainability: Services can be modified independently

  • Testability: Each service can be tested in isolation

  • Deployability: Services can be deployed independently or together via docker-compose

  • Security: HTTPS handled at proxy, internal services not exposed

Service Decomposition with Reverse Proxy

5.3. 3. Design Patterns

Pattern Application Rationale Location

Model-View-Controller

Webapp structure

Separates UI (View) from game state (Model) and user input handling (Controller). Essential for maintainability.

webapp/src/

Strategy Pattern

Bot AI implementation

Allows multiple difficulty levels/strategies without changing game core. New strategies = new classes, no modification to existing code.

gamey/src/bot/

Observer Pattern

UI updates

When game state changes, UI must update automatically. React’s virtual DOM and state management handle this efficiently.

webapp/src/

Gateway/Router Pattern

API Gateway + reverse proxy

Single entry point routes requests to appropriate services. Simplifies client and adds security layer. HTTPS enforced at reverse proxy.

gateway/ + Nginx config

5.4. 4. Quality Goal Realization

Quality Goal How We Achieve It Key Decisions Verification

Functionality

Rust engine ensures correct game rules; multiple strategies in gamey/src/bot/

Rust for game logic; Strategy pattern for AI

Unit tests in gamey/; integration tests verify bot moves

Usability

React provides responsive UI; component design supports i18n

React frontend; Externalized strings

E2E tests verify user flows; usability testing

Modularity & Maintainability

Microservices separation; Strategy pattern for extensions

Three-service architecture; Strategy pattern

Independent deployment possible; new strategies added without modifying core

Deployability & Availability

Docker containers; docker-compose; CI/CD; HTTPS via Nginx

Containerization; GitHub Actions; Reverse proxy

docker-compose up works; CI pipeline runs; HTTPS verified

Testability

Separation of concerns; dependency injection; Rust test framework

Microservices; Repository pattern

Unit tests: cargo test, npm test; Integration tests; E2E tests

Interoperability

REST API with YEN notation; documented for bots

Public API in gamey; OpenAPI docs

API tests verify YEN format; documentation generated automatically

5.5. 5. Organizational and Process Decisions

Decision Rationale Impact Constraint Addressed

Iterative Development (2-week sprints)

Early validation of gameplay; adapt to feedback

Regular demos; continuous integration

Course timeline; quality goals

Kanban Board (GitHub Projects)

Visualize work; identify bottlenecks

Issues tracked; clear priorities

Organizational: issue tracking

Code Reviews via Pull Requests

Catch issues early; share knowledge

All PRs require review; coding standards enforced

Quality: maintainability, reliability

Pair Programming for Complex Features

Rust game logic is critical

Higher quality for core engine

Quality: functionality, reliability

Architectural Decision Records (ADRs)

Document why decisions were made

Github wiki with numbered ADRs

Organizational: documentation standard

Definition of Done

Feature = code + tests + docs + reviewed

Ensures completeness before merge

Quality: testability, maintainability

5.6. 6. Key Architectural Decisions Summary

Decision ADR Summary Status

Modes of game available to the user

ADR-001

Basic functionality, extendable project

Implemented

MongoDB for user data

ADR-002

Schema flexibility for evolving requirements

Implemented

Three-service architecture

ADR-003

Separate webapp, users, gamey services due to technology constraints

Implemented

API Gateway + Reverse Proxy

ADR-004

Single entry point, routing, HTTPS enforced

Implemented

Strategy Pattern for AI

ADR-005

Bot strategies as pluggable components

In progress

5.7. 7. Traceability to Constraints

Constraint (from Section 2) How Solution Strategy Addresses It

TypeScript frontend

React + TypeScript in webapp/

Rust game engine

gamey/ service with core logic and bot strategies

JSON + YEN communication

REST APIs with YEN validation in gamey/

Public API for bots

gamey/ exposes /api/game/* endpoints via gateway

Docker containerization

Each service has Dockerfile; root docker-compose.yml

User data persistence

MongoDB in users/ service

Multiple AI strategies

Strategy pattern in gamey/src/bot/

Testing requirements

Unit, integration, E2E tests in all services

CI/CD

GitHub Actions workflows for test and deploy

Documentation (Arc42 + ADRs)

This document + ADRs in Github wiki

Secure HTTPS access

Nginx reverse proxy terminates SSL; internal services not exposed

6. Building Block View

This section describes the static decomposition of the YOVI system into building blocks. Following arc42 guidelines, we present a hierarchical view:

  • Level 1: Overview of top-level building blocks with responsibilities and key interfaces.

  • Level 2: White box descriptions of selected building blocks showing their internal structure.

This abstraction allows understanding the system structure without going deep into implementation details.

6.1. Level 1: Overall System White Box

The YOVI system consists of five top-level building blocks: Nginx reverse proxy, API gateway, three services, and an external database.

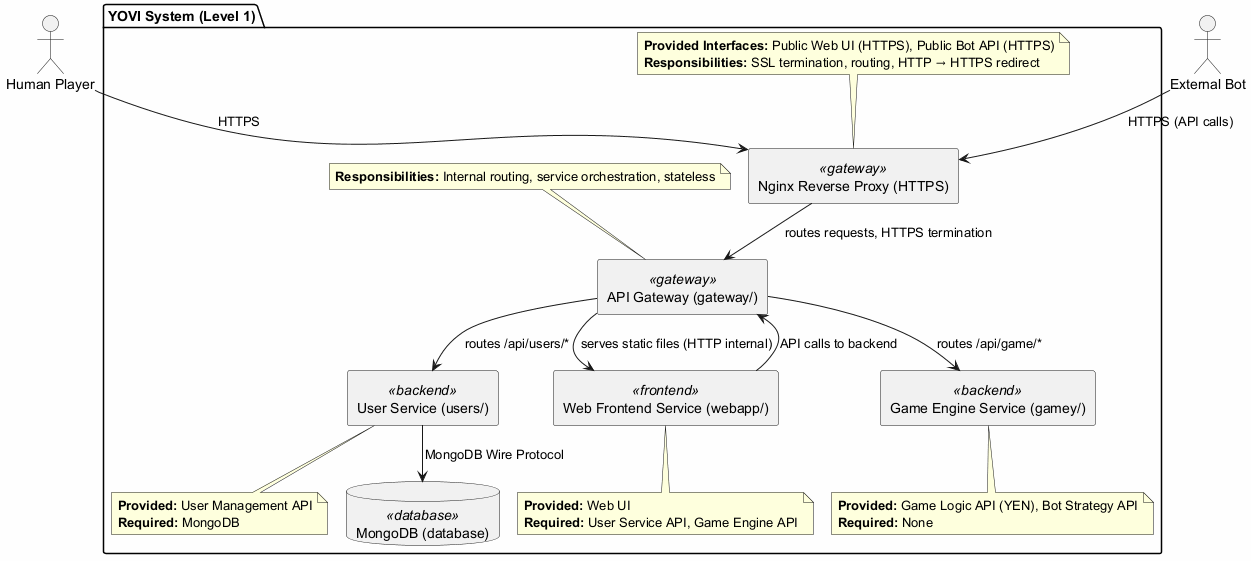

Level 1 System White Box with Reverse Proxy

6.1.1. Black Box Descriptions

Nginx Reverse Proxy

  • Purpose: Public-facing entry point for HTTPS requests. Handles SSL termination, HTTP → HTTPS redirects, forwards traffic to API gateway.

  • Provided: Public Web UI endpoint (HTTPS), Public Bot API endpoint (HTTPS)

  • Required: API Gateway (internal HTTP)

  • Quality/Performance: Stateless, scalable horizontally, must handle all external traffic

  • Location: /gateway/nginx/

  • Fulfilled Requirements: Public deployment, secure HTTPS

  • Open Issues: Certificate renewal, load balancing

API Gateway

  • Purpose: Internal routing and orchestration between services. Receives traffic from reverse proxy.

  • Provided: Routes for Webapp, Users, Gamey

  • Required: Webapp, Users, Gamey (internal HTTP)

  • Quality/Performance: Stateless, scalable horizontally

  • Location: /gateway/

  • Open Issues: None (internal use only)

Web Frontend Service

  • Purpose: Provides the user interface for humans. Handles game rendering, user interaction, backend calls.

  • Provided: Web UI (HTML/CSS/JS)

  • Required: User Service API, Game Engine API

  • Quality/Performance: Responsive (<100ms), supports i18n, stateless

  • Location: /webapp/

  • Open Issues: Real-time updates for future multiplayer features

User Service

  • Purpose: Manages user data: registration, authentication, profiles, match history, stats.

  • Provided: REST API for registration, login, profile, stats

  • Required: MongoDB

  • Quality/Performance: Response <200ms, reliable persistence

  • Location: /users/

  • Open Issues: Token expiration & refresh strategy

Game Engine Service

  • Purpose: Game logic, move validation, win conditions, AI move calculation.

  • Provided: REST API (/api/game/*) using YEN notation

  • Required: None

  • Quality/Performance: Low latency (<500ms), high correctness

  • Location: /gamey/

  • Open Issues: Performance optimization for large boards

MongoDB Database

  • Purpose: Persist user data including profiles, credentials, match history, stats.

  • Provided: MongoDB Wire Protocol

  • Required: None

  • Quality/Performance: Durable, supports concurrent connections

  • Location: Managed via Docker

  • Open Issues: Backup and recovery strategy

6.2. Level 2: Building Block Internals

6.2.1. Web Frontend Service (webapp/)

  • Component-based architecture: UI Components, State Management, API Client, Routing, i18n module.

  • Relationships:

    • UI Components → State Management, Routing, i18n

    • State Management → API Client

    • API Client → External Services

  • Key building blocks:

    • GameBoard, RegisterForm, UserProfile

6.2.2. Game Engine Service (gamey/)

  • Layered architecture: HTTP Server, YEN Parser, Game Core, AI Strategies, Board Model

  • Relationships:

    • HTTP Server → Parser → Core → Board & AI

  • Strategies:

    • Random (implemented), Heuristic (discussing), Minimax (discussing)

6.2.3. User Service (users/)

  • Layered architecture for REST APIs: Routes → Controllers → Services → Repositories → Models → MongoDB

  • Key endpoints: POST /register, POST /login, GET /profile/:id, GET /:id/stats

7. Runtime View

This section describes the dynamic behavior of the YOVI system. Following arc42 guidelines, we present a representative selection of architecturally significant scenarios:

  • Critical use cases: User registration, gameplay against bot, bot API usage

  • Key interactions: How building blocks cooperate

  • Error scenarios: How the system handles failures

  • Operation scenarios: System startup and shutdown

These scenarios demonstrate how the building blocks defined in Section 5 collaborate at runtime.

7.1. Runtime Scenario 1: User Registration (In development)

This scenario shows how a new user creates an account in the system. Currently, only username is required, but verification works the same way.

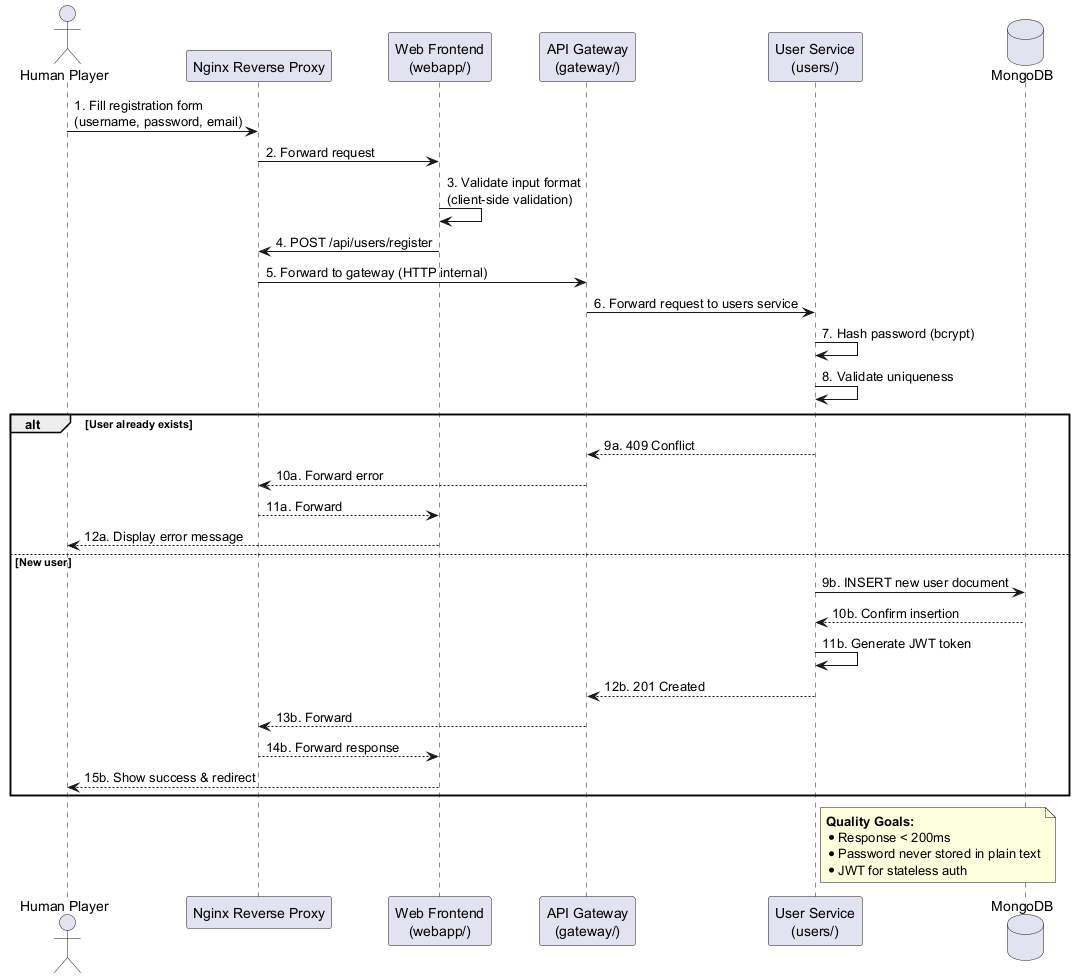

User Registration Sequence with Proxy

Steps:

  1. User fills registration form in browser.

  2. Reverse proxy receives HTTPS request.

  3. Proxy forwards request to Web Frontend.

  4. Frontend performs validation.

  5. Web frontend sends registration request to Proxy → Gateway.

  6. Gateway forwards to User Service.

  7. User Service hashes password and checks uniqueness.

  8. Alternative 1: User exists → 409 Conflict sent back through Gateway → Proxy → Webapp → User.

  9. Alternative 2: New user inserted into DB, JWT generated. Response flows back through Gateway → Proxy → Webapp → User.

7.2. Runtime Scenario 2: Playthrough of a Game against Two Players

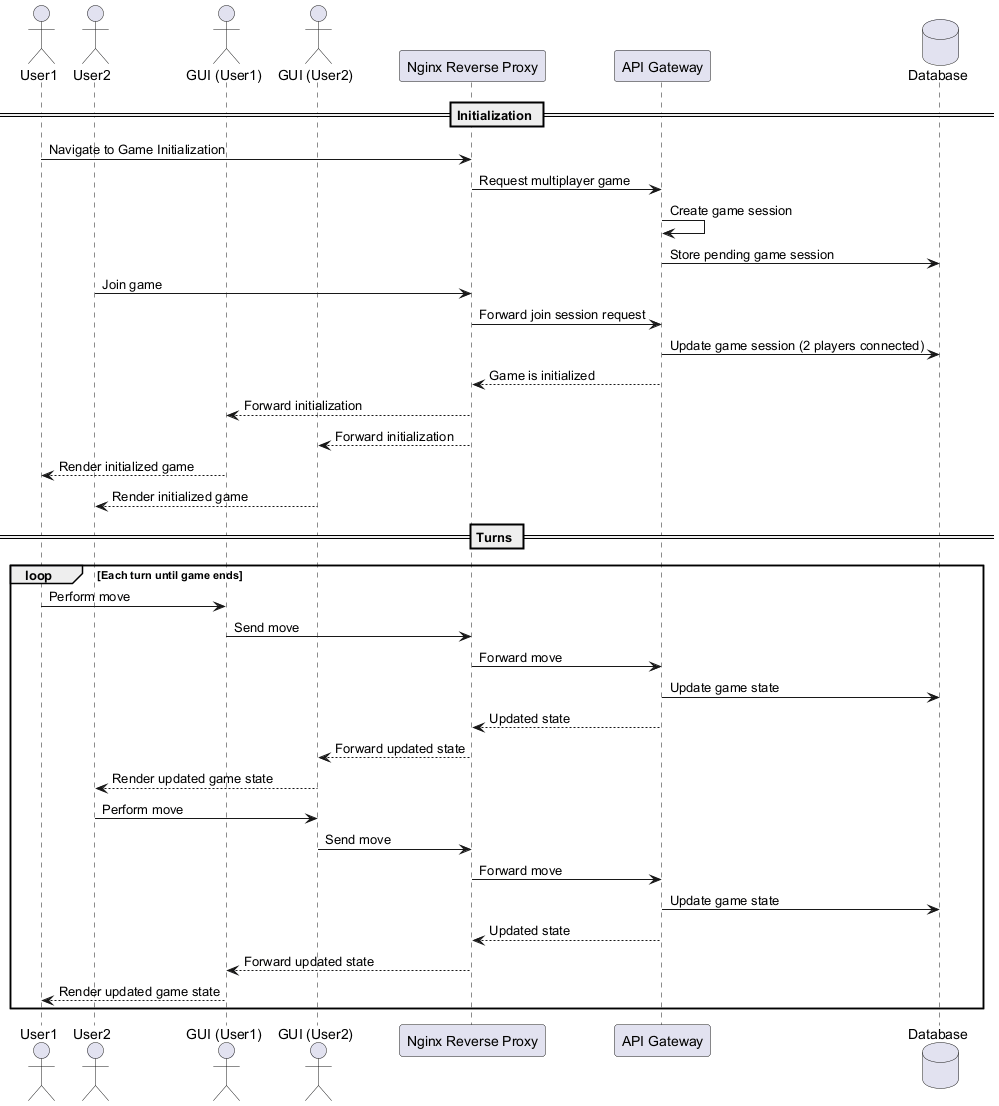

User VS User Game Diagram with Proxy

Steps Summary: Same as original, but all external requests go through Proxy → Gateway.

7.3. Runtime Scenario 3: Play Game vs. AI Bot

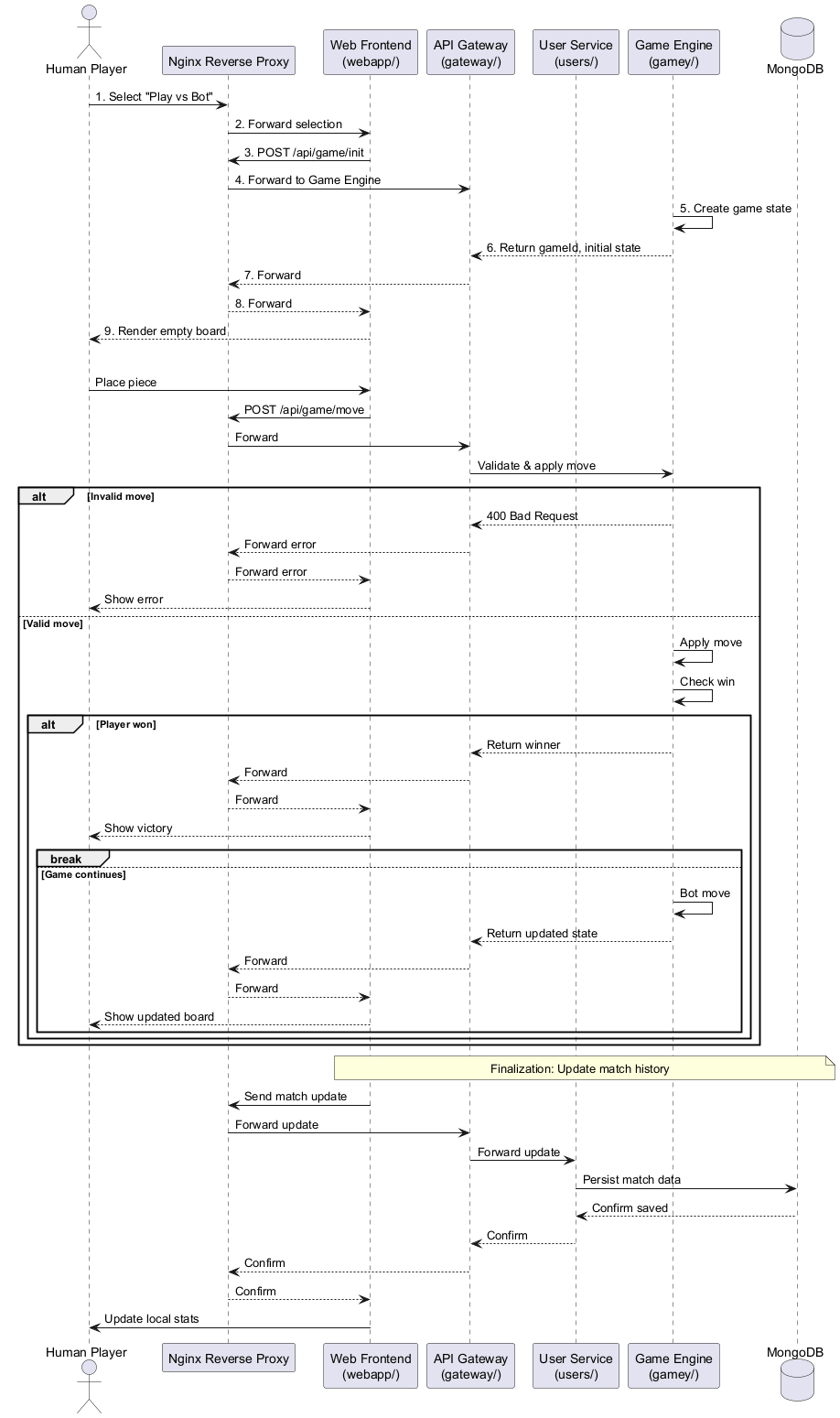

Game vs Bot Sequence with Proxy

7.4. Runtime Scenario 4: Error and Exception Handling

All scenarios updated to include Nginx Reverse Proxy as first hop for external requests.

  • Game Engine Unavailable: User request → Proxy → Gateway → Gamey → error returned through Proxy.

  • Invalid Move: Same, request flows through Proxy → Gateway → Gamey.

  • Database Connection Lost: Requests from Webapp still go through Proxy → Gateway → Users → MongoDB.

8. Deployment View

This section describes the technical infrastructure that executes the YOVI system and the mapping of building blocks (from Section 5) to infrastructure elements. Following arc42 guidelines, we present:

  • Level 1: Overall deployment environment (production)

  • Level 2: Internal structure of key infrastructure nodes

  • Environment variations: Development, test, and production differences The application is built to use Docker and a Virtual Machine as a host in such a way that it combines the portability of the containers with the security and isolation features of the VM.

8.1. Level 1: Production Deployment Overview

The YOVI system is deployed as a containerized application running on a cloud virtual machine. All services run in Docker containers, orchestrated with docker-compose.

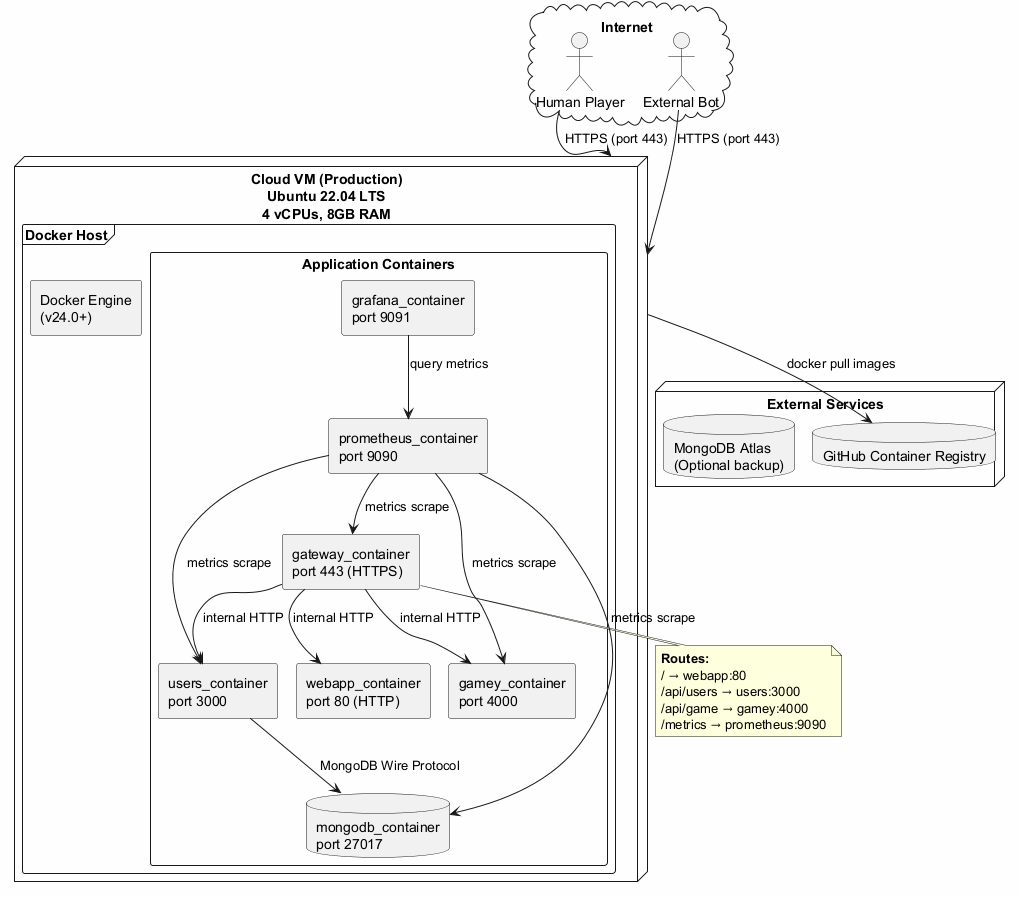

Production Deployment Level 1

8.1.1. Infrastructure Elements (Level 1)

Element

Description

Technology

Purpose

Cloud VM

Virtual machine hosting all containers

Ubuntu 22.04 LTS

Execution environment

Docker Engine

Container runtime

Docker v24.0+

Container orchestration

Gateway Container

API Gateway service

Nginx / Express Gateway

Request routing, SSL termination

Webapp Container

Frontend service

Node.js + React (static files)

Serve UI to users

Users Container

User management service

Node.js + Express

User data & auth

Gamey Container

Game engine service

Rust

Game logic & AI

MongoDB Container

Database

MongoDB 7.x

Data persistence

Prometheus Container

Metrics collection

Prometheus latest

Monitoring

Grafana Container

Metrics visualization

Grafana latest

Dashboards

GitHub Registry

Container image registry

GitHub Container Registry

Image storage

8.1.2. Communication Channels (Level 1)

Channel

Protocol

Source

Destination

Purpose

External HTTPS

HTTPS (TLS 1.3)

Internet

Gateway (port 443)

User/bot access

Internal HTTP

HTTP (plain)

Gateway

Webapp/Users/Gamey

Service communication

MongoDB Wire

MongoDB protocol

Users

MongoDB (27017)

Database access

Docker Pull

HTTPS

VM

GitHub Registry

Image download

Metrics Scrape

HTTP

Prometheus

All services

Monitoring data

Grafana Query

HTTP

Grafana

Prometheus

Dashboard queries

8.2. Level 2: Internal Structure of Key Nodes

8.2.1. Level 2: Cloud VM Internal Structure

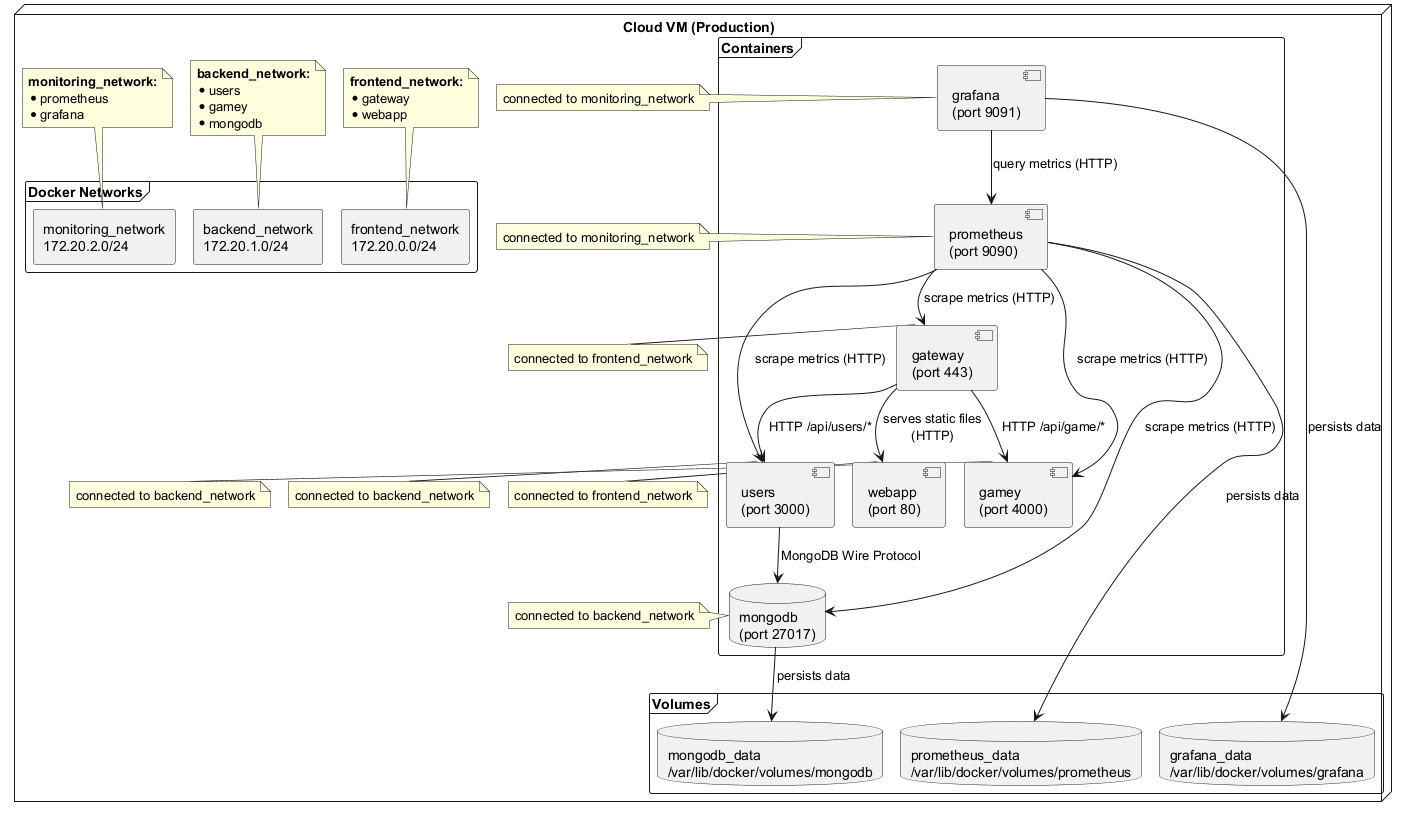

This diagram zooms into the Cloud VM, showing the container organization and internal networks.

Cloud VM Internal Structure

8.2.2. Production Environment

Aspect Configuration Justification

Location

Cloud VM (AWS EC2 / DigitalOcean)

Public accessibility

Orchestration

docker-compose + systemd

Simple, sufficient for scale

Networking

Public IP + domain

User access

Data

Persistent volumes

Data durability

Monitoring

Prometheus + Grafana

Observability

Backup

Daily automated backups

Disaster recovery

SSL

Let’s Encrypt auto-renew

Security

8.3. Mapping of Building Blocks to Infrastructure

This table maps the building blocks from Section 5 to the infrastructure elements described above.

Building Block Deployed As Environment Node Container Network

Web Frontend Service

Static files + Node server

Production

Cloud VM

webapp_container

frontend_network

User Service

Node.js application

Production

Cloud VM

users_container

backend_network

Game Engine Service

Rust binary

Production

Cloud VM

gamey_container

backend_network

API Gateway

Nginx configuration

Production

Cloud VM

gateway_container

frontend_network

MongoDB Database

MongoDB instance

Production

Cloud VM

mongodb_container

backend_network

Prometheus

Prometheus server

Production

Cloud VM

prometheus_container

monitoring_network

Grafana

Grafana server

Production

Cloud VM

grafana_container

monitoring_network

8.4. Deployment Decisions and Rationale

Decision Rationale Alternatives Considered Trade-offs

Single VM with docker-compose

Simplicity, cost-effective for expected load (10 concurrent users)

Kubernetes (overkill), separate VMs (costly)

Limited horizontal scaling, but simpler operations

Separate networks

Security isolation between frontend and backend

Single flat network

More complex config, but better security

Monitoring stack included

Required for observability and course evaluation

External monitoring service

Additional resource usage, but integrated

Persistent volumes

Data durability across container restarts

Ephemeral storage

Requires backup strategy

Let’s Encrypt SSL

Free, automated certificates

Paid certificates, self-signed

Auto-renewal complexity, but free

8.5. Deployment Scripts and Configuration

The deployment is automated via:

  • docker-compose.yml – at repository root. Defines all services.

  • deploy.sh – script for production deployment.

  • GitHub Actions workflow – CI/CD pipeline for testing and deployment.

8.6. Quality and Performance Features

Some of the characteristics obtained by the use of the specified implementation:

  • Isolation: Both thanks to the container isolation of Docker and the own security features of the Virtual Machine.

  • Portability and Compatibility: Thanks to the use of the Docker containers.

  • Security: If a container is compromised, the VM can act as another security layer.

  • Others: Scalability, easily maintainable, would be very simple to backup…​

8.7. Mapping of Building Blocks to Infrastructure

  • Webapp: Located in port 80, it is the one the user will connect to and interact with. It is the GUI (Graphic User Interface), and as such the frontend of the application.

  • Gateway: This block has port 8080 assigned, and it is in charge of acting as a bridge between the rest of the building blocks of the application.

  • Users: It is in charge of the user management as well as the authentication feature, and its port is 3000.

  • Gamey: This service, written in Rust, is the one containing the complete functionality of the Y Game. It uses port 4000.

  • Database: It is an external block containing all the information of the application (user data, game data…​).

Additionally, it is worth mentioning the presence of Prometheus, Loki and Grafana, they are external blocks that will be used to monitor and obtain metrics of the application and its usage.

9. Cross-cutting Concepts

9.1. Game State Representation

All game state across the system is represented using YEN notation, as mandated by the client.

{
  "size": 11,
  "turn": "R",
  "board": {
    "cells": [
      ["R", "B", "R", "B"]
    ]
  }
}

Usage: - gamey/ service: Parses and validates YEN, returns moves in YEN - webapp/: Converts UI interactions to YEN for API calls - Public API: Accepts and returns YEN exclusively

Rationale: Standardization ensures interoperability with external bots and consistency across services.

9.2. Internationalization

For accessibility, the application supports English and Spanish, with a design that allows easy addition of new languages.

Implementation: - All UI strings externalized to JSON files - Language selection in user preferences - Optional URL-based language: /en/play, /es/play

// i18n file structure
/locales/
  en/
    common.json
    game.json
    user.json
  es/
    common.json
    game.json
    user.json

Fallback: English as default if translation is missing

9.3. Network Flow (Proxy → Gateway → Services)

The external client requests flow through the reverse proxy and API gateway to reach internal services:

  • External Clients → Reverse Proxy → API Gateway

  • API Gateway forwards requests to Webapp and Users

  • Webapp communicates with the Game Engine

The flow diagrammatically is:

   External Clients
          |
          v
   +----------------+
   | Reverse Proxy  |
   +----------------+
          |
          v
   +----------------+
   |  API Gateway   |
   +----------------+
      |        |
      v        v
+-----------+ +-----------+
| Webapp    | | Users     |
+-----------+ +-----------+
      |
      v
  Game Engine

9.4. Secrets Management

Secrets are handled differently depending on environment:

  • Development: .env files (gitignored)

  • CI/CD: GitHub Secrets for all credentials

  • Production: Environment variables in docker-compose (never committed)

Example secrets: - JWT_SECRET - MONGODB_URI - GITHUB_TOKEN

9.5. Architecture and Design Patterns

Key design patterns applied across services:

  • Strategy Pattern: Used in Bot AI strategies; allows extensibility (adding new strategies = new classes).

  • Repository Pattern: Applied in users service for data access; improves testability (mock repositories).

  • Gateway/Router: API Gateway implementation; ensures security, routing, and monitoring (internal traffic behind proxy).

  • Observer/Reactive: UI updates via React state; ensures consistent UI across state changes.

9.6. Error Handling Strategy

All services implement consistent error handling, including requests coming via the reverse proxy:

  • 400 Bad Request: Invalid input format, e.g., malformed YEN

  • 401 Unauthorized: Missing or invalid token (no JWT)

  • 403 Forbidden: Valid token but insufficient permissions

  • 404 Not Found: Resource does not exist (invalid game ID)

  • 409 Conflict: Business rule violation, e.g., username already exists

  • 500 Internal Error: Unexpected server error, e.g., database connection lost

  • 503 Unavailable: Service temporarily down, e.g., game engine unreachable (proxied)

9.7. Code Organization

All services follow a consistent structure:

/service-name/
    src/            # Production code
    test/           # Unit tests
    integration/    # Integration tests
package.json/Cargo.toml
Dockerfile
README.md

9.8. Testing Strategy

The project follows a comprehensive testing strategy to ensure correctness, reliability, and quality across all system components. Different types of tests are implemented, including unit tests, end-to-end tests, and load testing.

9.8.1. Unit Tests

Unit tests are implemented for individual services to validate core logic in isolation. These tests focus on:

  • Business logic in backend services

  • API endpoint behavior

  • Game logic validation in the game engine

Code coverage is measured and reported as part of the continuous integration process, ensuring that critical components are adequately tested.

9.8.2. End-to-End Tests (E2E)

End-to-End tests are implemented using Playwright together with Cucumber for behavior-driven development (BDD). These tests validate the system from the user’s perspective, ensuring that all components work together correctly.

The E2E tests are executed against the deployed application and simulate real user interactions through the browser.

Tested Flows

The following key user flows are covered:

  • Authentication flow

    • User registration

    • User login (valid and invalid credentials)

    • Logout functionality

  • Game flow

    • Navigation from home to game configuration

    • Selection of bot and board size

    • Starting a new game

    • Interaction with the game board (selecting cells, sending moves)

    • Returning to home

  • Bot interaction

    • Playing against AI bots

    • Verifying game state updates after moves

    • Ensuring correct rendering of game elements

  • Navigation and UI flow

    • Access to statistics page

    • Navigation between pages (home, game, stats)

    • UI validation (buttons, selectors, labels)

Architecture Coverage

A key aspect of the E2E tests is that they validate the full system integration, covering the entire request flow:

User → Reverse Proxy → API Gateway → Microservices → Response

Specifically:

  • Requests are sent to the public URL (HTTPS endpoint)

  • The reverse proxy (Nginx) handles routing and SSL termination

  • Requests are forwarded to the API Gateway

  • The gateway routes requests to the appropriate services:

    • Users service

    • Game service

    • Authentication service

  • Responses propagate back through the same path to the user interface

This ensures that all infrastructure components (networking, routing, and service communication) are tested as part of the system.

9.8.3. Load Testing

Load testing is performed to evaluate system performance under concurrent usage.

The tests simulate multiple users interacting with the system simultaneously, focusing on:

  • Concurrent game sessions

  • API response times under load

  • System stability under stress

Key metrics analyzed include:

  • Average response time

  • Throughput (requests per second)

  • Error rate under load

These tests help identify performance bottlenecks and validate that the system meets performance requirements.

9.8.4. Continuous Integration

All tests are integrated into the CI pipeline, ensuring that:

  • Tests are executed automatically on pull request (Unit Tests) or release (Unit Tests, e2e Tests and Load Tests)

  • Failures are detected early in the development process

  • Code quality and stability are maintained over time

9.8.5. Summary

This multi-layered testing strategy ensures:

  • Correctness of individual components (unit tests)

  • Proper integration of all services (E2E tests)

  • System performance and scalability (load tests)

Together, these tests contribute to the overall reliability, maintainability, and quality of the system.

10. Architecture Decisions

This section documents the most significant architectural decisions made during the design and development of the YOVI platform. Each decision follows the ADR (Architecture Decision Record) format to provide context, rationale, and consequences. These decisions complement the solution strategy outlined in Section 4, providing deeper rationale for key choices.

10.1. ADR-001: Game Modes Available to the User

  • Status: Implemented

  • Date: 2026-01-15

  • Deciders: Development Team

Context: The platform needs to offer users different ways to play Game Y. The initial requirements specify player-versus-machine mode, but the architecture should be extensible to support additional modes in the future (multiplayer, different variants, etc.).

Decision: We will design the game mode system with extensibility as a core principle. The architecture will separate game mode logic from core game rules, allowing new modes to be added by:

  • Defining new mode types in the webapp UI

  • Extending the game engine to support mode-specific rules

  • Keeping mode state separate from core game state

Alternatives Considered:

  • Hard-code only PvM mode: Rejected - would require major refactoring for future modes

  • Configuration-driven modes: Considered but deferred - adds complexity for current requirements

  • Plugin architecture: Rejected - overkill for project scope

Consequences:

  • Positive: New game modes can be added without modifying core game logic

  • Positive: Clear separation between "how game is played" and "game rules"

  • Positive: Meets current requirements while preparing for future

  • Negative: Slightly more complex initial implementation

  • Negative: Requires careful design to avoid over-engineering

  • ️ Mitigation: Focus on PvM mode first, ensure extension points are clean

10.2. ADR-002: MongoDB for User Data Persistence

  • Status: Implemented

  • Date: 2026-01-20

  • Deciders: Development Team

Context: The users service needs to persist user profiles, authentication data, and match history. The team needed to choose a database technology that balances development speed with future flexibility.

Decision: We will use MongoDB for user data persistence. The schema will be designed to accommodate:

  • User profiles (username, password hash, email)

  • Authentication data (tokens, sessions)

  • Match history (games played, results, moves)

Alternatives Considered:

  • PostgreSQL: Rejected - schema changes for evolving requirements would be slower

  • MySQL: Rejected - similar concerns

  • In-memory storage: Rejected - data must persist

  • SQLite: Rejected - not suitable for concurrent access

Consequences:

  • Positive: Flexible schema allows easy addition of user fields

  • Positive: Excellent integration with Node.js via Mongoose ODM

  • Positive: Fast prototyping and iteration on data models

  • Negative: No built-in relations (handled in application code)

  • Negative: Eventual consistency (not critical for this domain)

  • Mitigation: Use atomic operations for critical updates (e.g., game statistics)

10.3. ADR-003: Three-Service Microservices Architecture

  • Status: Implemented

  • Date: 2026-01-15

  • Deciders: Development Team

Context: The lab assignment requires a web application in TypeScript and a game engine in Rust. These technologies cannot run in the same process. Additionally, user management (registration, history) is a distinct responsibility that could be separated.

Decision:

We will implement a microservices architecture with three independent services:

  • webapp/ - TypeScript/React frontend

  • users/ - Node.js/Express user management service

  • gamey/ - Rust game engine service

All services will communicate via REST APIs and be orchestrated with an API gateway.

Consequences:

  • Positive: Clear separation of concerns

  • Positive: Each service can be developed and tested independently

  • Positive: Technology-specific optimizations possible

  • Negative: Increased operational complexity (multiple services to deploy)

  • Negative: Network latency between services

  • Mitigation: docker-compose simplifies local development and deployment

10.4. ADR-004: API Gateway as Single Entry Point

  • Status: Implemented

  • Date: 2026-01-20

  • Deciders: Development Team

Context: With three independent services, external clients (human users and bots) would need to know multiple endpoints. This increases complexity and exposes internal service topology.

Decision:

We will implement an API Gateway (gateway/) as the single entry point for all external requests. The gateway will:

  • Route / → webapp service (static files)

  • Route /users/* → users service

  • Route /game/* → gamey service

  • Handle SSL termination

  • Provide a security layer

Alternatives Considered:

  • Direct client-to-service communication: Rejected - exposes internal services, complicates client logic

  • Load balancer only: Rejected - doesn’t provide routing based on paths

  • No gateway: Rejected - security concerns

Consequences:

  • Positive: Single URL for all clients simplifies access

  • Positive: Internal services remain hidden from external clients

  • Positive: Centralized SSL and security policies

  • Negative: Additional component to deploy and maintain

  • Negative: Potential performance bottleneck

  • Mitigation: Gateway is stateless and can be scaled horizontally

10.5. ADR-005: Strategy Pattern for AI Bot Behaviors

  • Status: In Progress

  • Date: 2026-01-25

  • Deciders: Development Team

Context: The system must support multiple AI strategies and difficulty levels. New strategies may be added in the future without modifying existing code. The requirement states "more than one strategy" must be available.

Decision: We will implement the Strategy Pattern in the gamey service. Each AI strategy will be a separate module implementing a common trait (BotStrategy). The game engine will select the appropriate strategy based on user input. Initial strategies will include:

  • Random move (implemented)

  • Heuristic-based (in discussion)

  • Minimax (in discussion)

Alternatives Considered:

  • Conditional logic (if/else or switch): Rejected - violates Open/Closed principle, hard to extend

  • Configuration flags with hard-coded algorithms: Rejected - similar concerns

  • Machine learning model: Rejected - overkill for requirements, unpredictable performance

Consequences:

  • Positive: New strategies can be added without modifying core game logic

  • Positive: Each strategy can be tested independently

  • Positive: Clear separation of concerns

  • Negative: Slight indirection overhead (negligible)

  • Negative: Requires understanding of trait/interface design

  • Mitigation: Well-documented strategy trait and example implementations

10.6. ADR-006: Reverse Proxy and HTTPS Termination

  • Status: Implemented

  • Date: 2026-04-06

  • Deciders: Development Team

Context: The platform must be accessible securely over HTTPS and expose multiple internal services through a single public endpoint. Additionally, SSL/TLS certificate management should be centralized to avoid duplication across services.

Decision: We introduce a reverse proxy using Nginx as the public entry point of the system. The reverse proxy is responsible for:

  • Redirecting all HTTP traffic (port 80) to HTTPS

  • Handling SSL/TLS termination using Let’s Encrypt certificates

  • Routing incoming requests:

  • / → webapp service

  • /api/* → API Gateway

This approach ensures that all internal services communicate over HTTP, while external communication is secured via HTTPS.

Alternatives Considered:

  • Handling HTTPS in each service: Rejected - duplicates configuration and increases complexity

  • Letting the API Gateway manage HTTPS: Rejected - mixes routing and infrastructure concerns

  • No HTTPS: Rejected - insecure and not suitable for production environments

Consequences:

  • Positive: Centralized SSL/TLS management simplifies configuration

  • Positive: Improved security by enforcing HTTPS

  • Positive: Clean separation between infrastructure (proxy) and application logic

  • Positive: Single public endpoint for all services

  • Negative: Additional component to deploy and maintain

  • Negative: Slight latency introduced by proxy layer

  • Mitigation: Nginx is lightweight and widely used in production environments

10.7. ADR-007: Monitoring and Observability Stack

  • Status: Implemented

  • Date: 2026-04-20

  • Deciders: Development Team

Context: As the system evolved into a distributed microservices architecture, it became necessary to ensure visibility into system behavior, performance, and failures. Without proper monitoring and logging, diagnosing issues across multiple services would be complex and time-consuming. Additionally, the evaluation criteria require support for availability and observability.

Decision: We implemented a complete monitoring and observability stack composed of:

  • Prometheus for metrics collection

  • Grafana for metrics visualization and dashboards

  • Loki for centralized log aggregation

  • Promtail for log collection from Docker containers

All monitoring components are deployed within the same Docker Compose environment and connected through the shared internal network.

The system collects and monitors:

  • Resource usage (CPU, memory)

  • Request rates and response times

  • Error rates and failed requests

  • Service availability

Logs from the user and authentication services are centralized and can be queried and visualized through Grafana, enabling correlation between logs and metrics.

Consequences:

  • Positive: Improved visibility into system performance and behavior

  • Positive: Faster debugging through centralized logs

  • Positive: Real-time monitoring via Grafana dashboards

  • Positive: Supports availability and reliability quality attributes

  • Negative: Additional infrastructure components to maintain

  • Negative: Slight increase in resource consumption

  • Mitigation: Lightweight tools (Prometheus, Loki) and containerized deployment minimize overhead

10.8. Summary of Architectural Decisions

ID

Decision

Key Rationale

Status

ADR-001

Game Modes

Extensibility for future modes

Implemented

ADR-002

MongoDB for User Data

Schema flexibility, Node.js integration

Implemented

ADR-003

Three-Service Architecture

Technology constraints (TypeScript + Rust)

Implemented

ADR-004

API Gateway

Security, single entry point

Implemented

ADR-005

Strategy Pattern for AI

Extensibility for multiple strategies

Implemented

ADR-006

Reverse Proxy + HTTPS

Security and centralized routing

Implemented

ADR-007

Monitoring and Observability Stack

Observability

Implemented

11. Quality Requirements

This section details the quality requirements for the YOVI system. While Section 1.2 introduced the high-level quality goals, this section makes them concrete, measurable, and testable through scenarios and descriptive metrics.

Quality requirements are critical because they influence architectural decisions and determine whether stakeholders consider the system a success.

11.1. Quality Tree

The quality tree organizes requirements hierarchically, following the ATAM (Architecture Tradeoff Analysis Method) approach. "Quality" is decomposed into categories and subcategories, each linked to measurable scenarios:

  • Performance

  • Response Time → QS-01: Move calculation < 2 seconds

  • Throughput

  • Resource Usage

  • Usability

  • Learnability → QS-02: New user starts without help

  • Operability

  • Accessibility (i18n) → QS-07: EN + ES supported

  • Maintainability

  • Modularity

  • Testability → QS-10: Coverage > 80%

  • Extensibility → QS-03: New feature < 2 days

  • Reliability

  • Availability → QS-05: 10+ concurrent users

  • Fault Tolerance → QS-04: Crash recovery < 30 sec

  • Recoverability

  • Portability

  • Browser Support → QS-06: Chrome, Firefox, Edge

  • Platform Independence

  • Security

  • Authentication → QS-08: Unauthorized access blocked

  • Data Protection → QS-09: Zero data loss

11.2. Quality Scenarios

11.2.1. QS-01: Move Calculation Performance

Measures the game engine response time for calculating a bot move.

  • Stimulus: Human player makes a move vs. bot

  • Source: Human player

  • Environment: Normal operation, board size 11x11

  • Artifact: Game Engine Service (gamey/)

  • Response: System calculates and returns bot move

  • Response Measure: 95% of moves < 2 seconds

  • Priority: High

  • Verification: Automated performance tests with timing metrics

Flow: Human Player → Web Frontend → API Gateway → Game Engine → returns move → Web Frontend → User

11.2.2. QS-02: New User Learnability

Tests whether a new user can start playing without external instructions.

  • Stimulus: New user wants to play

  • Source: First-time player

  • Environment: User has never seen Game Y

  • Artifact: Web Frontend (webapp/)

  • Response: User starts a valid game without help

  • Response Measure: 80% complete first move within 2 minutes

  • Priority: High

  • Verification: Usability testing with 5 new users

Flow: New User → Web Frontend → explore UI → make first move → UI updates

11.2.3. QS-03: Feature Extensibility

Measures how easily a new game variant can be added.

  • Stimulus: Developer adds new variant (e.g., Hex)

  • Source: Development team

  • Environment: Development environment, existing codebase

  • Artifact: Game Engine Service (gamey/)

  • Response: New variant added with minimal changes

  • Response Measure: Implementation < 2 developer-days, changes only at extension points

  • Priority: Medium

  • Verification: Code review, time tracking, demonstration

Flow: Developer → Codebase → implement variant → run tests → all pass

11.2.4. QS-04: Crash Recovery (Fault Tolerance)

Tests the system’s ability to recover from a service failure.

  • Stimulus: Game Engine crashes

  • Source: Internal failure

  • Environment: Production, active game

  • Artifact: Game Engine Service (gamey/)

  • Response: System detects failure, restarts service, continues game

  • Response Measure: Downtime < 30 seconds, game state recoverable

  • Priority: High

  • Verification: Chaos testing: kill container, measure recovery time

Flow: User → Web Frontend → API Gateway → Game Engine crash → detect & restart → User continues

11.2.5. QS-05: Concurrent Users

Tests system performance under load.

  • Stimulus: Multiple users play simultaneously

  • Source: Human players

  • Environment: Production deployment

  • Artifact: All services

  • Response: All users experience normal response times

  • Response Measure: Support 10+ concurrent users, response degradation < 50%

  • Priority: Medium

  • Verification: Load testing with 10 concurrent sessions

Flow: Users 1–10 → System → Responses → Users

11.2.6. QS-06: Browser Compatibility

Tests frontend across major browsers.

  • Stimulus: User accesses game from different browsers

  • Source: Human player

  • Environment: Latest Chrome, Firefox, Edge

  • Artifact: Web Frontend (webapp/)

  • Response: Game renders correctly, fully playable

  • Response Measure: Core functionality works in Chrome, Firefox, Edge

  • Priority: Medium

  • Verification: CI cross-browser testing, manual verification

Flow: User → Chrome/FF/Edge → Web Frontend → Game renders

11.2.7. QS-07: Internationalization

Tests language switching functionality.

  • Stimulus: User selects Spanish language

  • Source: Spanish-speaking player

  • Environment: Normal operation

  • Artifact: Web Frontend (webapp/)

  • Response: All UI text in Spanish

  • Response Measure: 100% of strings translated to EN and ES

  • Priority: Low (optional feature)

  • Verification: Automated checks for missing translations

Flow: User → Web Frontend → i18n Module → UI in Spanish

11.2.8. QS-08: Unauthorized Access Prevention

Tests authentication and authorization.

  • Stimulus: User tries to access another user’s data

  • Source: Malicious/curious user

  • Environment: Production

  • Artifact: User Service (users/), API Gateway

  • Response: Access rejected with 403 Forbidden

  • Response Measure: 100% of cross-user attempts blocked

  • Priority: High

  • Verification: CI security tests, penetration testing

Flow: User A → API Gateway → User Service → blocked → 403 → User A

11.2.9. QS-09: Data Persistence

Tests data durability after system restart.

  • Stimulus: System restarts

  • Source: Maintenance or crash

  • Environment: Post-restart

  • Artifact: MongoDB, User Service

  • Response: All user data intact

  • Response Measure: Zero data loss, 100% records recoverable

  • Priority: High

  • Verification: Backup/restore tests, crash simulation

Flow: User → System → MongoDB → Restart → User → System → MongoDB → Data intact

11.2.10. QS-10: Code Maintainability

Tests code quality and maintainability for new developers.

  • Stimulus: New developer joins

  • Source: Onboarding

  • Environment: Development

  • Artifact: All services

  • Response: Developer can locate/modify feature in a day

  • Response Measure: Coverage > 80%, cyclomatic complexity < 10

  • Priority: Medium

  • Verification: SonarQube metrics, onboarding test

Flow: Developer → Codebase → Read docs → Modify feature → Run tests → Coverage verified

11.3. Traceability to Quality Goals

Mapping scenarios to Section 1.2 quality goals:

  • Functionality: QS-01, QS-03 → correct game rules, multiple AI strategies

  • Usability: QS-02, QS-07 → learnability (80% success), i18n support (EN+ES)

  • Modularity & Maintainability: QS-03, QS-10 → extensibility < 2 days, coverage > 80%

  • Deployability & Availability: QS-04, QS-05 → recovery < 30 sec, 10+ concurrent users

  • Testability: QS-10 → coverage > 80%

  • Interoperability: Covered in Section 6 → API works for external bots

12. Risks and Technical Debts

Following the principle that "risk management is project management for grown-ups" (Tim Lister), we systematically evaluate and track items that could impact project success.

Each item is assessed using a risk matrix:

  • Probability: Low (1), Medium (2), High (3)

  • Impact: Low (1), Medium (2), High (3)

  • Risk Score = Probability × Impact (1-9)

Items with score ≥ 6 require active mitigation. Items with score ≥ 8 are critical and require immediate attention.

12.1. Technical Risks

Identified technical risks (ordered by Risk Score, highest first):

  • R1: Rust learning curve

  • Probability / Impact / Score: 3 / 3 / 9

  • Description: Team lacks Rust experience

  • Mitigation: Learning sprint (week 1), pair programming, focus on core game verification first, leverage Rust’s type system

  • R2: TypeScript-Rust integration

  • Probability / Impact / Score: 3 / 3 / 9

  • Description: Communication bugs between services

  • Mitigation: Versioned JSON interface (YEN), contract tests, integration tests in CI, OpenAPI documentation

  • R3: Game Y rules misunderstanding

  • Probability / Impact / Score: 2 / 3 / 6

  • Description: Incorrect implementation of rules

  • Mitigation: Domain analysis session, shared glossary, early walking skeleton, reference authoritative sources

  • R4: Scope creep

  • Probability / Impact / Score: 2 / 3 / 6

  • Description: Optional features delay mandatory ones

  • Mitigation: MoSCoW prioritization, clear definition of done for optional features, feature flags

  • R5: Reverse Proxy misconfiguration

  • Probability / Impact / Score: 2 / 3 / 6

  • Description: Proxy incorrectly routes traffic or breaks TLS

  • Mitigation: Automated integration tests via proxy, configuration templates, staging verification, monitoring/logging

  • R6: API stability for bots

  • Probability / Impact / Score: 2 / 2 / 4

  • Description: Changes break external bots

  • Mitigation: Versioned API (/v1/), documentation, deprecation policy (6 months), compatibility tests

  • R7: AI performance

  • Probability / Impact / Score: 2 / 2 / 4

  • Description: Slow on large boards

  • Mitigation: Performance budget (< 2s), early profiling, CI performance tests

  • R8: DevOps complexity

  • Probability / Impact / Score: 2 / 2 / 4

  • Description: Inconsistent deployments

  • Mitigation: Docker + docker-compose, CI/CD automation, environment parity

  • R9: MongoDB data loss

  • Probability / Impact / Score: 1 / 3 / 3

  • Description: Corruption or deletion of data

  • Mitigation: Daily backups, 30-day retention, monthly restore tests, replication

  • R10: JWT vulnerability

  • Probability / Impact / Score: 1 / 3 / 3

  • Description: Weak secrets or token leakage

  • Mitigation: Strong secrets (env vars), short expiration (1h), refresh tokens, GitHub Secrets

  • R11: Gateway single point of failure

  • Probability / Impact / Score: 1 / 3 / 3

  • Description: Entire system down if gateway fails

  • Mitigation: Stateless design, multiple instances, Docker restart, Prometheus monitoring

12.2. Technical Debts

Technical debts are already incurred design or implementation shortcuts that need to be addressed:

  • TD1: Frontend Component Duplication

  • Impact if not fixed: Medium – inconsistent UI, harder maintenance

  • Planned Resolution: Refactor to use shared component library

  • TD2: Hardcoded Configuration

  • Impact if not fixed: Low – works in dev but may cause production issues

  • Planned Resolution: Move all configuration to .env files

  • TD3: Missing Input Validation

  • Impact if not fixed: Medium – poor user experience, extra server load

  • Planned Resolution: Add validation to all forms

  • TD4: Incomplete Test Coverage

  • Impact if not fixed: Medium – higher risk of undetected bugs

  • Planned Resolution: Increase coverage to 80% (per QS-10)

  • TD5: Proxy Integration Not Fully Tested

  • Impact if not fixed: Medium – could cause downtime or failed API calls

  • Planned Resolution: Add automated end-to-end tests covering Proxy → Gateway → Services, including stress tests

13. Glossary

This glossary defines the most important domain and technical terms used throughout the YOVI project. It ensures that all stakeholders (developers, client, evaluators, bot developers) have an identical understanding of these terms.

13.1. Domain Terms

  • YOVI: The name of the system developed in this project. A web-based platform for playing Game Y, supporting human players and external bots.

  • Game Y: An abstract strategy board game in which players aim to connect three different sides of the board. Played on a triangular or hexagonal grid.

  • Classic Game Y: The standard version of Game Y defined by the original rules, without additional variants or optional mechanics. Mandatory implementation for the project.

  • Game Variant: An alternative version of Game Y with modified rules, such as Poly-Y, Hex, Tabu Y, or Holey Y. Optional features.

  • Player: A human user who interacts with the system through the web frontend to play games.

  • Bot: An external program that interacts with the system exclusively through the public API to retrieve information and play games automatically. Bots have no UI.

  • Player-versus-Machine (PvM): A game mode in which a human player competes against a computer-controlled opponent (AI).

  • Match / Game Session: A single instance of a game, from initialization to completion, including all moves and the final result.

  • Move: A single action by a player placing a piece on the board. Represented in YEN notation.

  • Strategy: A specific algorithm or heuristic used by the AI to determine its next move. Examples: Random, Heuristic, Minimax.

  • Difficulty Level: A configuration of the AI strategy that affects its playing strength. Usually implemented by varying strategy parameters or search depth.

  • User Registration: The process of creating an account in the system, providing username, password, and optionally email.

  • Match History: A record of all games played by a user, including date, opponent (human/bot), result, and moves.

  • Statistics: Aggregated metrics about a user’s performance, such as total games played, wins, losses, and win rate.

  • Leaderboard: An optional feature ranking users based on various metrics (win rate, games played, etc.).

13.2. Technical Terms

  • Architecture Decision Record (ADR): A document capturing an important architectural decision, including context, rationale, alternatives, and consequences. Stored in the project wiki.

  • API Gateway: A service acting as a single entry point for all external requests. Routes requests to the appropriate internal service (webapp, users, gamey) and handles SSL termination.

  • Microservice: An architectural style in which a system is composed of small, independent services that communicate over a network and can be developed, deployed, and scaled separately. YOVI uses three microservices.

  • Web Frontend Service (webapp/): The TypeScript/React service providing the UI for human players. Handles game rendering, user interaction, and API calls to backend services.

  • User Service (users/): Node.js/Express service responsible for user management: registration, authentication, profile storage, match history, and statistics.

  • Game Engine Service (gamey/): Rust service implementing all Game Y logic: move validation, win condition checking, and AI move calculation with multiple strategies.

  • MongoDB: NoSQL database used by the User Service to persist user profiles, authentication data, and match history.

  • Docker: Containerization platform used to package each service with dependencies, ensuring consistent execution across development, test, and production.

  • docker-compose: Tool for defining and running multi-container Docker applications. Orchestrates all YOVI services locally and in production.

  • CI/CD (Continuous Integration / Continuous Deployment): Automated pipeline (via GitHub Actions) that builds, tests, and deploys the system on code changes.

  • GitHub Actions: CI/CD platform used for automated testing, building, and deployment of YOVI.

  • SonarQube: Code quality analysis tool integrated into the CI pipeline to monitor test coverage, code smells, bugs, and technical debt.

  • Prometheus: Monitoring and metrics collection tool used to gather performance data from all services.

  • Grafana: Visualization tool creating dashboards from Prometheus metrics, used for monitoring system health.

  • JWT (JSON Web Token): Compact, URL-safe token used for stateless authentication. Contains user identity and claims, signed with a secret key.

  • YEN Notation: JSON-based notation representing the state of a Game Y match, including board size, current turn, players, and board layout. Mandated by the client.

  • REST API: Architectural style for designing networked applications. YOVI exposes RESTful APIs for service-to-service and external communication.

  • HTTP / HTTPS: Hypertext Transfer Protocol (Secure). Used for all communication between clients, bots, and services.

  • JSON: JavaScript Object Notation, a lightweight data-interchange format used for all API payloads, especially YEN notation.

  • TypeScript: Statically typed programming language extending JavaScript, used to implement the web frontend.

  • Rust: Systems programming language focused on safety and performance, used to implement the game engine.

  • Node.js: JavaScript runtime used to execute the User Service backend.

  • Express: Web framework for Node.js used to build the User Service REST API.

  • React: JavaScript library for building user interfaces, used in the web frontend.

13.3. Acronyms

  • ADR: Architecture Decision Record

  • API: Application Programming Interface

  • CI/CD: Continuous Integration / Continuous Deployment

  • DoD: Definition of Done

  • HTTP: Hypertext Transfer Protocol

  • HTTPS: Hypertext Transfer Protocol Secure

  • i18n: Internationalization

  • JSON: JavaScript Object Notation

  • JWT: JSON Web Token

  • MVC: Model-View-Controller

  • ODM: Object Document Mapper

  • PvM: Player versus Machine

  • REST: Representational State Transfer

  • SSL: Secure Sockets Layer

  • TLS: Transport Layer Security

  • UI: User Interface

  • UX: User Experience

  • VM: Virtual Machine

  • YEN: Y Notation (specific to Game Y)
