1. Introduction and Goals

Describes the relevant requirements and the driving forces that software architects and development team must consider. These include

  • underlying business goals,

  • essential features,

  • essential functional requirements,

  • quality goals for the architecture and

  • relevant stakeholders and their expectations

1.1. Functional requirements

  • Publicly accessible application via web which allows users to play matches of Game Y.

  • To offer a possibility to play against the machine.

  • Ability for users to register in the system.

  • Game history for registers users that includes at least the number of matches played, win/loss statistics and other relevant metrics.

  • API through which user info and game data can be managed.

  • Game state should follow YEN notation using JSON messages

Contents

Short description of the functional requirements, driving forces, extract (or abstract) of requirements. Link to (hopefully existing) requirements documents (with version number and information where to find it).

Motivation

From the point of view of the end users a system is created or modified to improve support of a business activity and/or improve the quality.

Form

Short textual description, probably in tabular use-case format. If requirements documents exist this overview should refer to these documents.

Keep these excerpts as short as possible. Balance readability of this document with potential redundancy w.r.t to requirements documents.

Further Information

See Introduction and Goals in the arc42 documentation.

1.2. Quality Goals

Contents

The top three (max five) quality goals for the architecture whose fulfillment is of highest importance to the major stakeholders. We really mean quality goals for the architecture. Don’t confuse them with project goals. They are not necessarily identical.

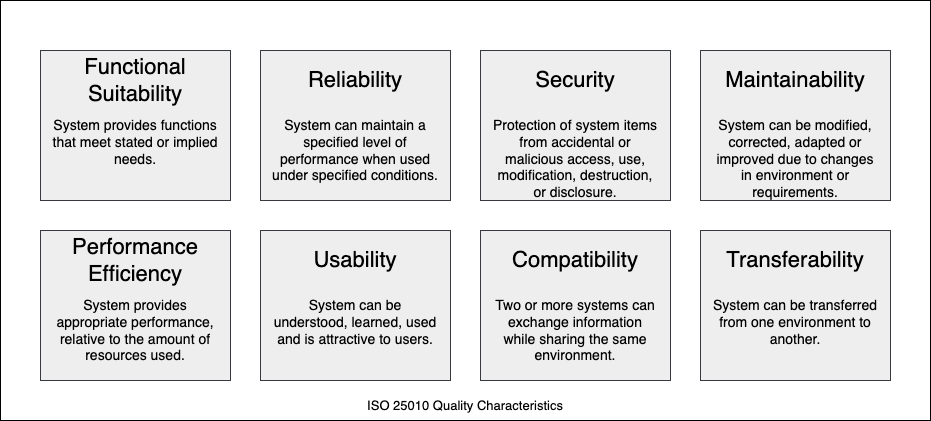

Consider this overview of potential topics (based upon the ISO 25010 standard):

Categories of Quality Requirements
Motivation

You should know the quality goals of your most important stakeholders, since they will influence fundamental architectural decisions. Make sure to be very concrete about these qualities, avoid buzzwords. If you as an architect do not know how the quality of your work will be judged…​

Quality Goal Description

Usability

Intuitive user interface to boost use experience. Logical move suggestions by the bot.

Performance efficiency

Game should process moves with minimal response time.

Maintainability

Organized and easy-to-read code to facilitate easier modifications and updates in the future.

Availability

Having the servers be up with only minimal downtime.

1.3. Stakeholders

Contents

Explicit overview of stakeholders of the system, i.e. all person, roles or organizations that

  • should know the architecture

  • have to be convinced of the architecture

  • have to work with the architecture or with code

  • need the documentation of the architecture for their work

  • have to come up with decisions about the system or its development

Motivation

You should know all parties involved in development of the system or affected by the system. Otherwise, you may get nasty surprises later in the development process. These stakeholders determine the extent and the level of detail of your work and its results.

Form

Table with role names, person names, and their expectations with respect to the architecture and its documentation.

Role/Name Expectations

Micrati

Top notch user experience to boost engagement with the product. To have the servers up and running as much as possible.

End Users

Intuitive and well performing game platform.

Course professors

Easy to read documentation which highlights key decisions and how work has been divided.

Development team

To create a game which satisfies other stakeholders' expectations.

2. Architecture Constraints

Contents

Any requirement that constraints software architects in their freedom of design and implementation decisions or decision about the development process. These constraints sometimes go beyond individual systems and are valid for whole organizations and companies.

Motivation

Architects should know exactly where they are free in their design decisions and where they must adhere to constraints. Constraints must always be dealt with; they may be negotiable, though.

Form

Simple tables of constraints with explanations. If needed you can subdivide them into technical constraints, organizational and political constraints and conventions (e.g. programming or versioning guidelines, documentation or naming conventions)

Further Information

See Architecture Constraints in the arc42 documentation.

2.1. Technical Constraints

Contents

Technical constraints that restrict architectural and implementation decisions.

Motivation

These constraints shape the fundamental design of the system and affect technology choices.

Constraint ID Constraint Impact Rationale

TC-01

Microservices Architecture

System must be deployed as three independent containerized services (Webapp, Users Service, GameY)

University ASW labs require practice with distributed system architecture and Docker-based deployments

TC-02

Docker Containerization

All services must be containerized and orchestrated via Docker Compose

Standardized deployment environment across development, testing, and production

TC-03

Git Repository Structure

All code must be maintained in a single monorepo with multi-component structure

Facilitates coordinated development across multiple teams and services

TC-04

Use of Arc42 as documentation standard

All the documentation must be completed using the standard of the Arc42 documentation template

Creates more unified project making it easier to understand by people not belonoging to the team

2.2. Organizational Constraints

Contents

Organizational constraints and political constraints that influence architectural decisions.

Motivation

Understanding organizational constraints is essential for realistic and feasible architecture decisions.

Constraint ID Constraint Impact Rationale

OC-01

GitHub Repository

Code must be hosted on GitHub under Arquisoft organization (arquisoft/yovi_0)

Version control, CI/CD integration, and artifact publication requirements

OC-02

SonarCloud Quality Gates

Code must pass SonarCloud quality analysis and coverage thresholds

Quality assurance and maintainability requirements

OC-03

Release and Deployment Automation

Automated CI/CD pipelines must build, test, and deploy on every release

Ensures consistency and reduces manual deployment errors

2.3. Conventions and Naming Guidelines

Contents

Programming, documentation and naming conventions that should be adhered to by all team members.

Motivation

Conventions improve consistency, readability and maintainability of the codebase and documentation.

Convention Rules Example

Project Structure

Each service in separate directory; services are independently deployable

/webapp, /users, /gamey, /docs

Package Naming

Services follow npm/Cargo naming conventions; lowercase with hyphens where appropriate

yovi_0-webapp, yovi_0-users, gamey

API Endpoints

REST endpoints follow RESTful conventions; resource-based paths

POST /createuser, GET /game/:id, POST /move

Configuration

Environment-specific settings via environment variables and .env files

VITE_API_URL, service ports, database URLs

Documentation

Arc42 template in AsciiDoc format; architecture documentation in /docs/src

01_introduction.adoc, 03_context_and_scope.adoc

Testing

Unit tests co-located with source code; test files suffixed with .test.ts/.test.js

RegisterForm.test.tsx, users-service.test.js

Code Quality

TypeScript strict mode; ESLint configuration; Rust clippy lints

All code must pass linting before CI/CD acceptance

3. Context and Scope

Contents

Context and scope - as the name suggests - delimits your system (i.e. your scope) from all its communication partners (neighboring systems and users, i.e. the context of your system). It thereby specifies the external interfaces.

If necessary, differentiate the business context (domain specific inputs and outputs) from the technical context (channels, protocols, hardware).

Motivation

The domain interfaces and technical interfaces to communication partners are among your system’s most critical aspects. Make sure that you completely understand them.

Form

Various options:

  • Context diagrams

  • Lists of communication partners and their interfaces.

Further Information

See Context and Scope in the arc42 documentation.

3.1. Business Context

Contents

Specification of all communication partners (users, IT-systems, …​) with explanations of domain specific inputs and outputs or interfaces. Optionally you can add domain specific formats or communication protocols.

Motivation

All stakeholders should understand which data are exchanged with the environment of the system.

Form

All kinds of diagrams that show the system as a black box and specify the domain interfaces to communication partners.

Alternatively (or additionally) you can use a table. The title of the table is the name of your system, the three columns contain the name of the communication partner, the inputs, and the outputs.

Table 1. YOVI Communication Partners
Communication Partner Inputs Outputs

End User (Browser)

User registration data (name, credentials)

HTML/CSS/JavaScript web interface, game board rendering

Game Player

Game moves, game commands (create game, choose piece, etc.)

Game state, board updates, move validation responses

External Bots/AI Players

Game state queries, available moves requests

Bot moves, strategic decisions

System Administrators

Configuration parameters, monitoring queries

System health status, performance metrics, logs

Domain Interfaces Explanation:

  • User Management Interface: Users interact with the system through the web application to create accounts and manage their profiles.

  • Game Interface: The core business logic revolves around game creation, move validation, and game state management (pieces, coordinates, players).

  • Bot Interface: The system supports bot players that communicate with the game engine to perform moves and participate in games.

  • Monitoring Interface: System health and performance data is exposed for operational monitoring.

3.2. Technical Context

Contents

Technical interfaces (channels and transmission media) linking your system to its environment. In addition a mapping of domain specific input/output to the channels, i.e. an explanation which I/O uses which channel.

Motivation

Many stakeholders make architectural decision based on the technical interfaces between the system and its context. Especially infrastructure or hardware designers decide these technical interfaces.

Form

E.g. UML deployment diagram describing channels to neighboring systems, together with a mapping table showing the relationships between channels and input/output.

Table 2. Technical Components and Communication Channels
Component Protocol Port Technology Purpose

Webapp (Frontend)

HTTP/HTTPS

80, 443

React, TypeScript, Vite

Web user interface

API Gateway Service

HTTP

8000

Node.js, Express

Entry point to the rest of the services.

Users Service

HTTP/REST

3000

Node.js, Express

User management and registration

GameY Engine

HTTP/REST, WebSocket

4000

Rust, Axum

Game logic and bot registry

Monitoring (Prometheus)

HTTP

9090

Prometheus

Metrics collection

Monitoring (Grafana)

HTTP

9091

Grafana

Metrics visualization

Technical Interfaces:

The system uses standard web protocols for communication:

  • HTTP/REST API: Primary interface for synchronous communication between services and browser clients

  • WebSocket: Real-time bidirectional communication for game interactions

  • JSON: Data format for all API requests and responses

  • Prometheus Metrics: Time-series metrics collection for system observability

Mapping of Business I/O to Channels:

  • User registration data → HTTP POST /createuser endpoint (Users Service)

  • Game moves and state → HTTP REST or WebSocket (GameY Engine)

  • System metrics → Prometheus endpoints on each service

  • Monitoring dashboards → Grafana HTTP interface

4. Solution Strategy

Contents

A short summary of fundamental decisions and solution strategies (tech, patterns, quality goals).

4.1. Technological decisions

Here are the key decisions related to the technological aspects of our project. Reasons behind these decisions are described briefly for each solution.

Name Motivation

Rust

An in-demand programming language in the industry and renowned for its performance.Our professors have set this as a so-called constraint.

TypeScript

Better performance and error catching capabilities than its subset JavaScript. Works seamlessly with HTML and CSS.

MongoDB

Flexible data storage model fits our project than its relational counterparts.

React

Widely used JavaScript framework facilitates user-friendly components for the front-end.

Vite

Complements React UI library. Modern industry standard for React projects.

Express

Facilitates easy HTTP req/res cycle for the back end of the user creation page.

Docker

We can encapsulate different components of our software application into Docker containers which can be hosted on Azure.

Azure

Offers an on-demand computing environment over the cloud for our virtual machine that is highly scalable.

Github

Easier code management via Git version control. Automatic code deployment to the virtual machine via GitHub Actions.

4.2. Achieving key quality goals

Quality goal How we achieve it

Maintainability

Well-structured code and clear documentation to support future changes.

Usability

Intuitive UI with React; Rust for efficient, reliable behavior.

Availability

Multiple server instances for redundancy and reduced single points of failure.

5. Building Block View

5.1. Level 1: White Box of the Overall System

The building block view shows the static decomposition of the system into building blocks and their dependencies.

Motivation: Decomposing the system into separate components (Frontend, Backend, and Database) allows us to handle user interface, game logic, and data persistence independently, using the best technology for each (React, Rust/Node.js, and MongoDB). All controlled by the gateway.

Contained Building Blocks:

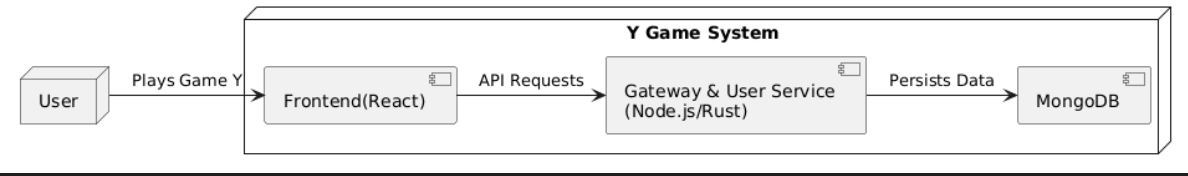

Level 1 Architecture Diagram
Name Responsibility

Frontend(React)

Provides the user interface for playing Game Y and user registration.

API Gateway

Acts as entry point for all requests, the frontent is another client of the gateway.

Backend Services

Coordinates game logic, authentication, and service communication.

MongoDB

(Database) Acts as the primary NoSQL data store for user profiles and history.

5.1.1. Frontend(React)

Purpose/Responsibility: Provides the user interface for playing Game Y, handling user registration, and displaying real-time game updates.

Interface(s): * Web UI: React-based frontend accessible via browser. * API Consumer: Communicates with the gateway via REST/JSON.

Directory/File Location: ./webapp

5.1.2. API Gateway

Purpose/Responsibility: Provides the backend interface for Game Y, handling all rerouting requests and validating them.

Interface(s): * API Consumer: Communicates with Services via REST/JSON.

Directory/File Location: ./gateway

5.1.3. Backend Services

Purpose/Responsibility: Acts as the central orchestrator. It manages authentication, coordinates game logic between the engine and the user, and handles data persistence.

Interface(s): * REST API: Provides endpoints for login and game actions. * Engine Connector: Internal communication with the Rust Game Engine and users service.

Directory/File Location: ./gamey , ./users

5.1.4. MongoDB

Purpose/Responsibility: Stores persistent data including user credentials and match history.

Directory/File Location: ./users Important Interfaces: * REST API: Communication between frontend and backend via JSON. * Database Connection: Backend access to MongoDB on port 27017.

5.2. Level 2: White Box of the Backend Services

This level zooms into the Backend to show how it is decomposed into specialized microservices.

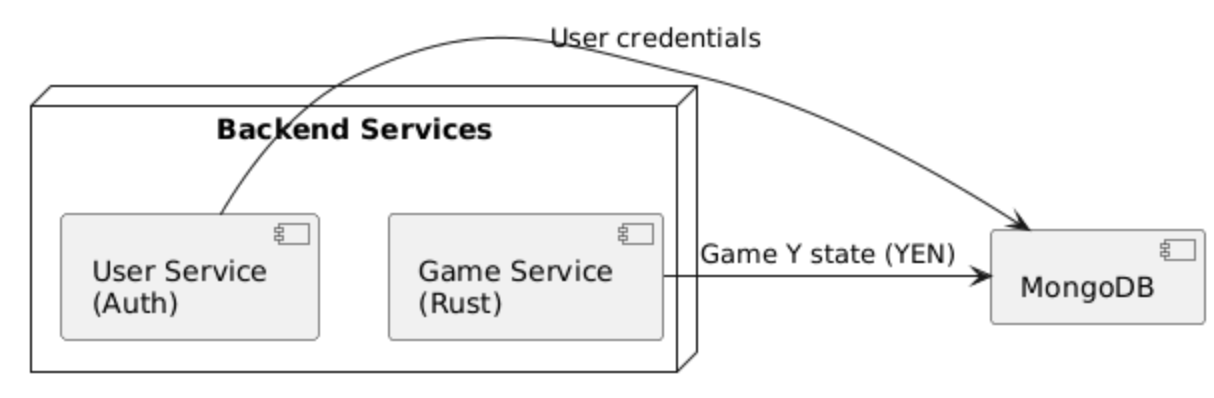

Level 2 Architecture Diagram

Contained Building Blocks (Internal):

Name Responsibility

Users Service

(Node.js) Manages user identity, registration, security and data persistence.

Game Engine

(Rust) Handles the core rules and hexagonal grid logic for Game Y.

5.2.1. Users Service

Purpose/Responsibility: Handles user registration, authentication, and session management. It issues JWT (JSON Web Tokens) for secure access to other services.

Interface(s): * HTTP POST /createuser: Creates new user accounts. * HTTP POST /login: Validates credentials and returns a token.

Directory/File Location: ./users

5.2.2. Game Engine (Rust)

Purpose/Responsibility: The core of the system. It handles the Game Y logic, validates hexagonal grid moves, and calculates win/loss conditions. Built in Rust.

Interface(s): * Rust-Node Bridge: Internal API for receiving game moves and returning states.

Directory/File Location: ./gamey

5.3. Level 3: White Box of the Database

At this level, we describe how the data is structured within MongoDB to support the system’s requirements.

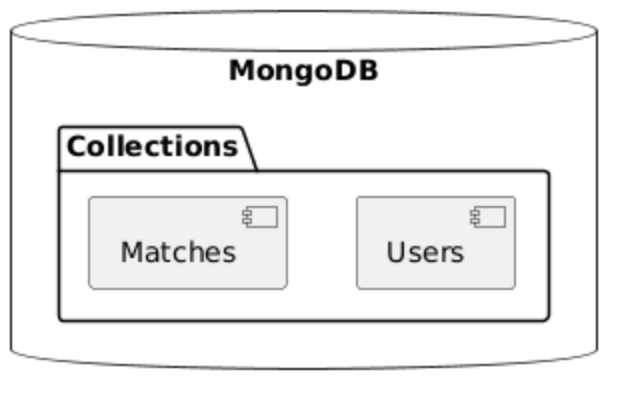

Level 3 Architecture Diagram

5.3.1. Users Collection

Purpose/Responsibility: Stores unique user profiles and secure authentication data. It ensures each player has a persistent identity within the Y Game System.

  • username: Unique identifier for the user.

  • password: Salted and hashed using BCrypt for security.

  • email: Used for account recovery and notifications.

  • createdAt: Timestamp of account creation used for verification and logging.

Directory/File Location: ./users/users-service.js & ./users/db.js

5.3.2. Matches Collection

Purpose/Responsibility: Maintains a persistent record of all games played, allowing for match history tracking and game state resumption.

  • username: Unique identifier for the user.

  • result: (Enum) The outcome of the match; strictly restricted to player_won or bot_won.

  • board: (Object) A snapshot of the final state of the game board.

  • points: Calculated score based on difficulty, board size, and moves efficiency.

  • totalMoves: The count of moves made during the game.

  • difficulty: The level chosen.

  • boardSize: Dimensions of the board.

  • playedAt: Timestamp of the match, used for progression tracking.

Directory/File Location: ./users/users-service.js & ./users/db.js

6. Runtime View

The runtime view describes the dynamic behavior of the Game Y system. It focuses on how different building blocks (Frontend, Gateway, Services and Database) communicate with each other during specific execution scenarios.

6.1. User Registration (Sign Up)

When a new user wants to join the system, the data must be sanitized and securely stored.

Scenario Steps:

Step Description

1

The User fills the registration form in the Web Application.

2

The Web Application validates and prepares the input data to ensure it meets the required format before transmission.

3

The Web Application sends a POST request to the API Gateway.

4

The API Gateway forwards the request to the Users Service.

5

The Users Service checks if the username is unique and hashes the password.

6

The Users Service stores the record in MongoDB and returns a success response.

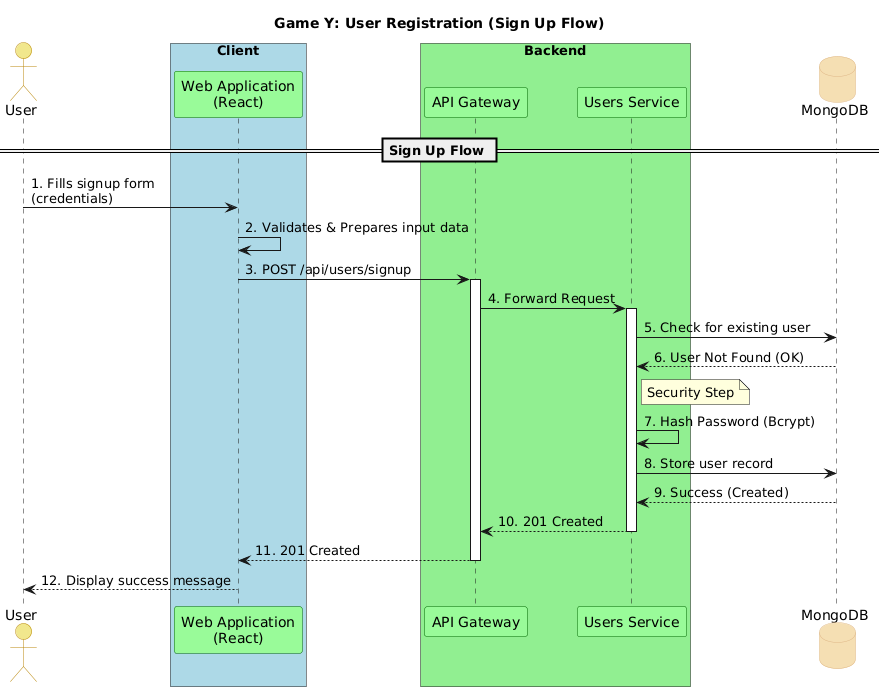

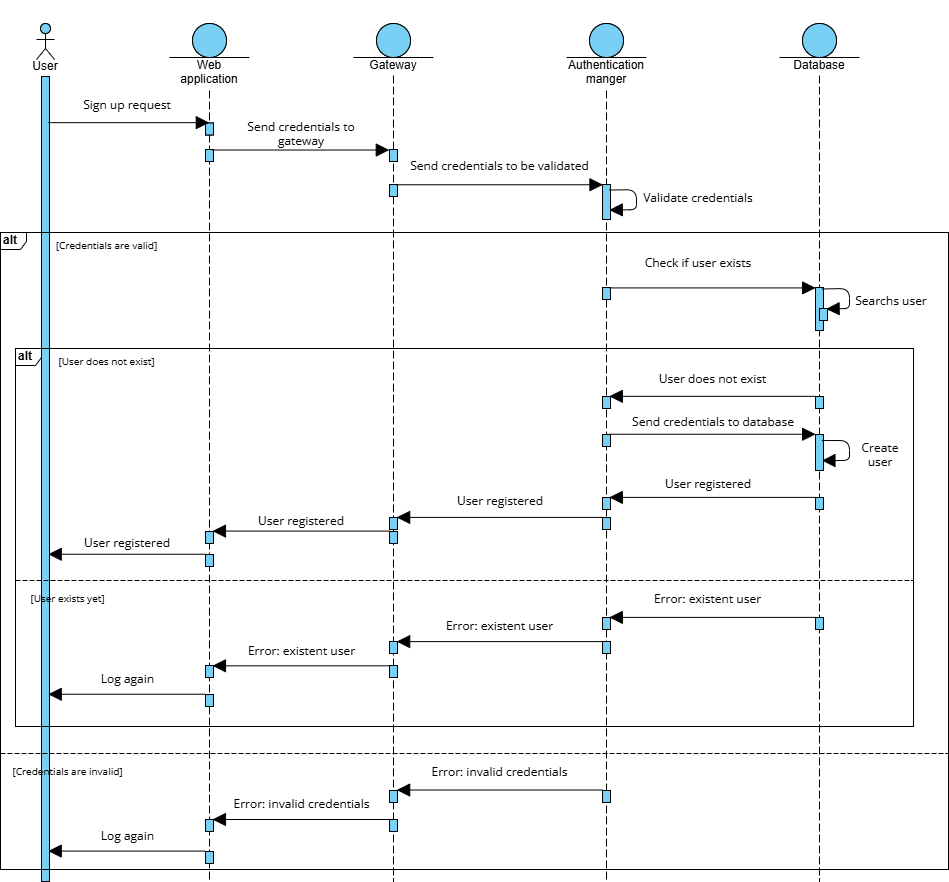

Sign Up Diagram

6.2. User Authentication (Sign In)

The authentication process verifies the user credentials and provides a secure session token (JWT).

Scenario Steps:

Step Description

1

The User enters their username and password in the Web Application.

2

The Web Application validates the input format and sends a POST request to the API Gateway.

3

The API Gateway forwards the login request to the Users Service.

4

The Users Service retrieves the stored user data and password hash from MongoDB.

5

The Users Service compares the hashes and, if successful, generates a JWT Token.

6

The Web Application receives the token and stores it securely for subsequent requests.

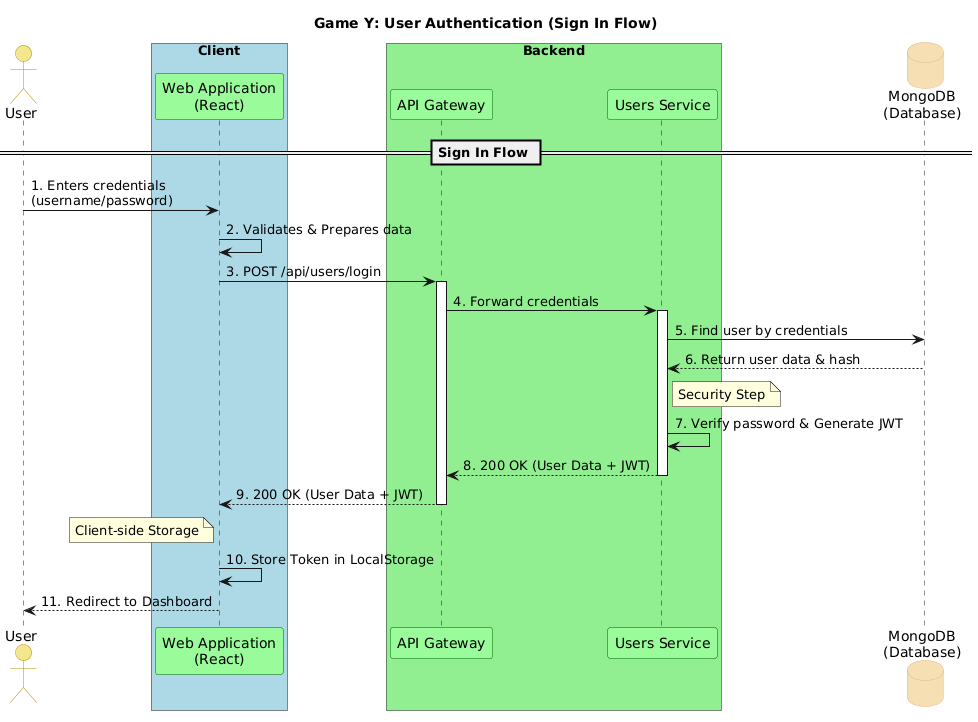

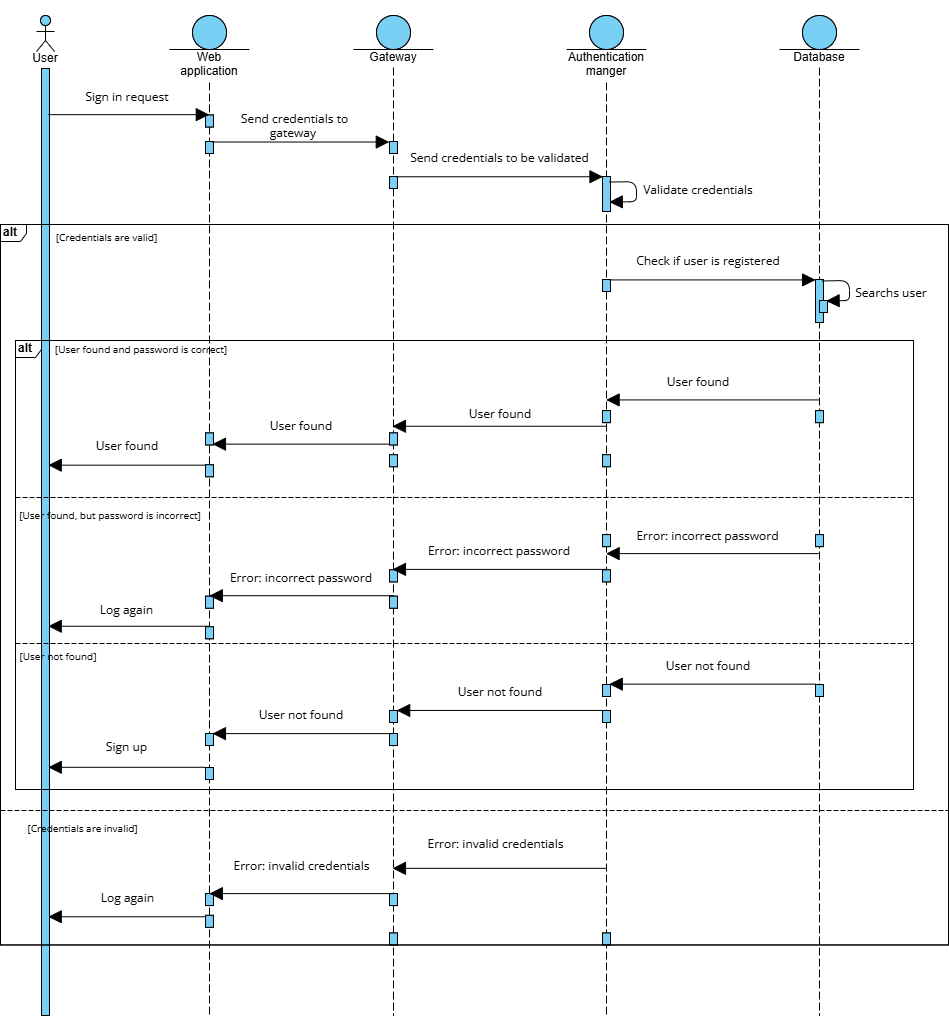

Sign In Diagram

6.3. Game Play (Move Execution)

This flow describes how a user performs an action within the game and how the system validates and updates the game state.

Scenario Steps:

Step Description

1

The User performs a move (e.g., placing a piece) on the Web Application.

2

The Web Application sends the move details along with the JWT Token to the API Gateway.

3

The API Gateway validates the token and forwards the move to the Game Service.

4

The Game Engine (Core Logic) validates the move based on the hexagonal grid rules.

5

The Game Service updates the game state in MongoDB.

6

The system returns the updated game state to the Web Application to refresh the UI.

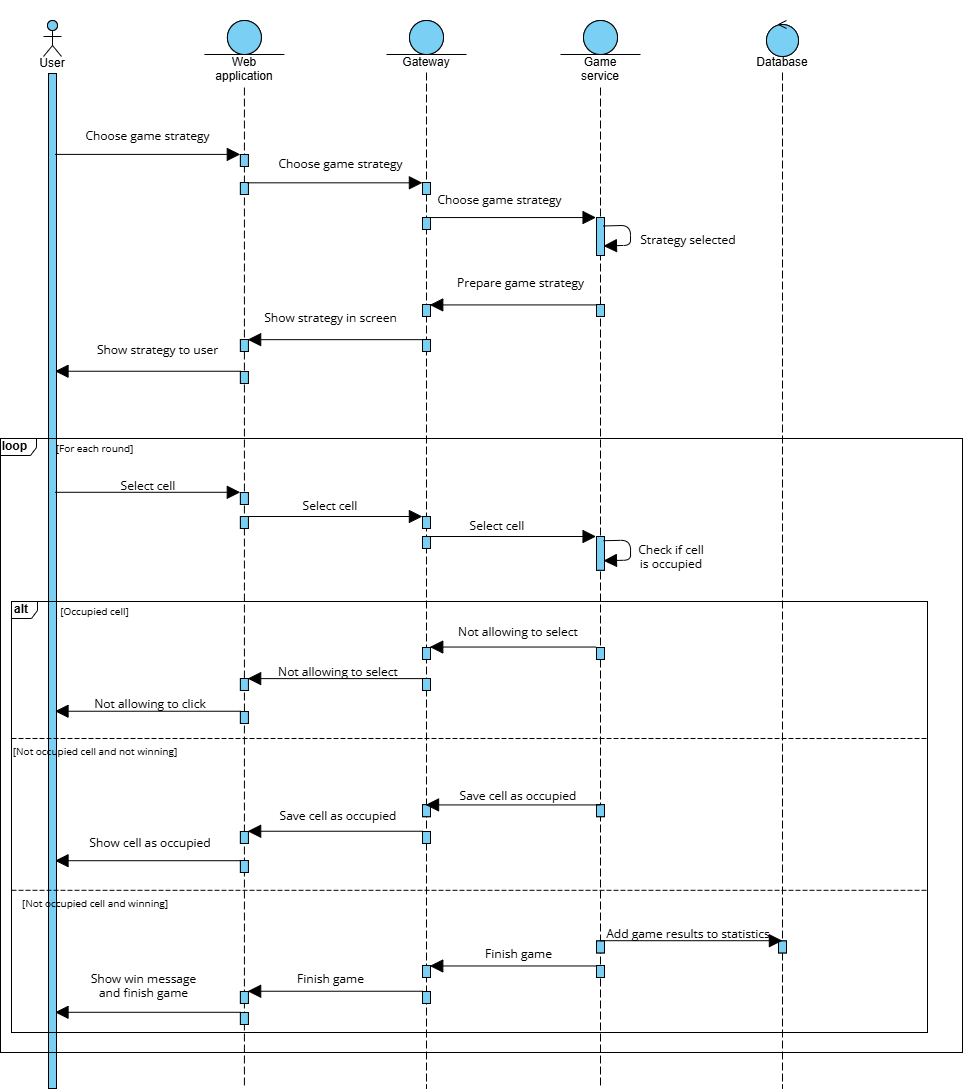

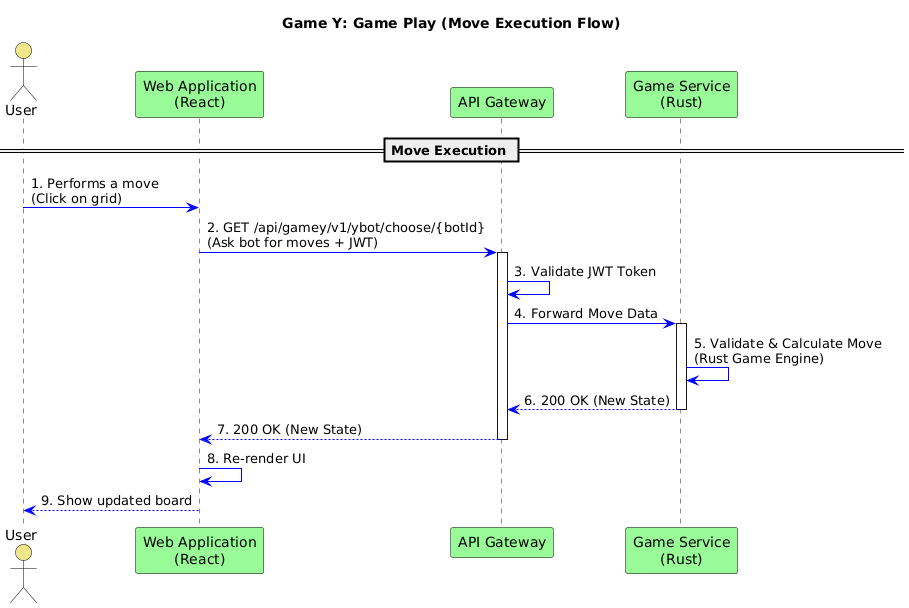

Game Flow Diagram

6.4. Statistics and Leaderboard Flow

This flow explains how game results are persisted and how performance metrics (points, win rates) are retrieved for the leaderboard.

Scenario Steps:

Step Description

1

The Web Application sends the game outcome (moves, difficulty, result) to the /savegame endpoint.

2

The Users Service calculates points based on difficulty and efficiency using the calculatePoints logic.

3

The game record is persisted in the MongoDB games collection.

4

When a user views the leaderboard, the Web Application requests the top scores from the /games/leaderboard endpoint.

5

The Users Service executes a MongoDB aggregation to sum points per user and returns the top 10 players.

6

The Web Application renders the statistics and ranking for the user.

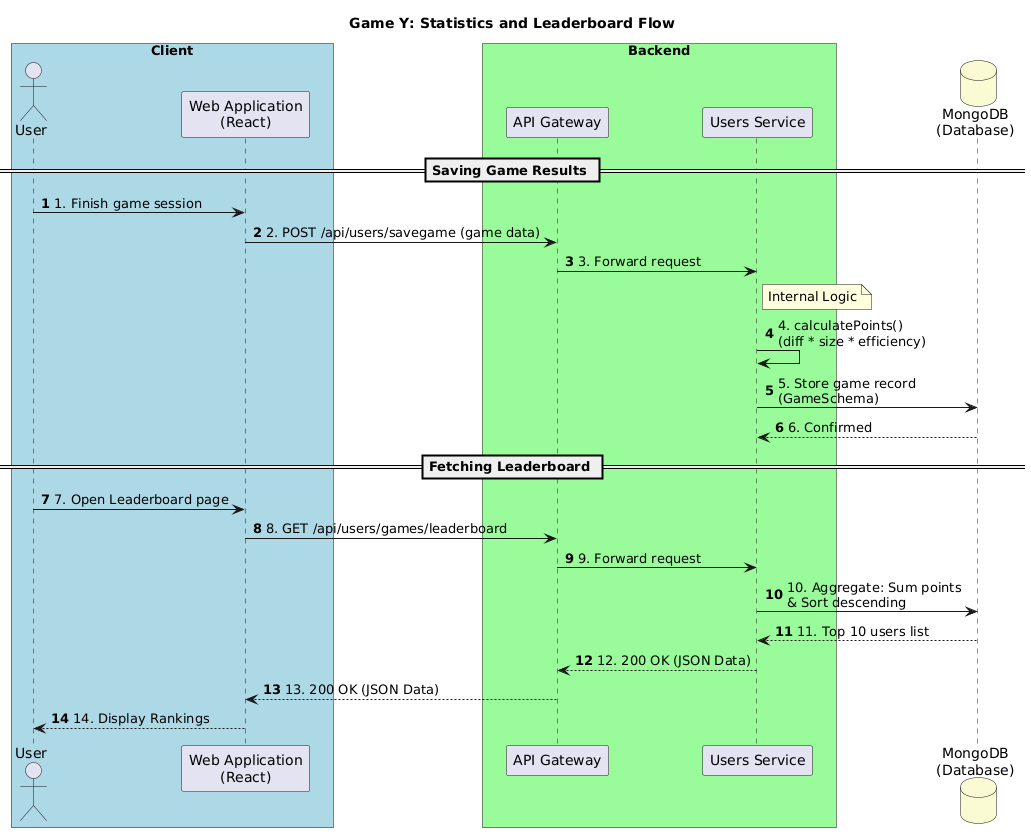

Statistics Flow Diagram

7. Deployment View

Content

The deployment view describes:

  1. technical infrastructure used to execute your system, with infrastructure elements like geographical locations, environments, computers, processors, channels and net topologies as well as other infrastructure elements and

  2. mapping of (software) building blocks to that infrastructure elements.

Often systems are executed in different environments, e.g. development environment, test environment, production environment. In such cases you should document all relevant environments.

Especially document a deployment view if your software is executed as distributed system with more than one computer, processor, server or container or when you design and construct your own hardware processors and chips.

From a software perspective it is sufficient to capture only those elements of an infrastructure that are needed to show a deployment of your building blocks. Hardware architects can go beyond that and describe an infrastructure to any level of detail they need to capture.

Motivation

Software does not run without hardware. This underlying infrastructure can and will influence a system and/or some cross-cutting concepts. Therefore, there is a need to know the infrastructure.

Form

Maybe a highest level deployment diagram is already contained in section 3.2. as technical context with your own infrastructure as ONE black box. In this section one can zoom into this black box using additional deployment diagrams:

  • UML offers deployment diagrams to express that view. Use it, probably with nested diagrams, when your infrastructure is more complex.

  • When your (hardware) stakeholders prefer other kinds of diagrams rather than a deployment diagram, let them use any kind that is able to show nodes and channels of the infrastructure.

Further Information

See Deployment View in the arc42 documentation.

7.1. Infrastructure Level 1

Describe (usually in a combination of diagrams, tables, and text):

  • distribution of a system to multiple locations, environments, computers, processors, .., as well as physical connections between them

  • important justifications or motivations for this deployment structure

  • quality and/or performance features of this infrastructure

  • mapping of software artifacts to elements of this infrastructure

For multiple environments or alternative deployments please copy and adapt this section of arc42 for all relevant environments.

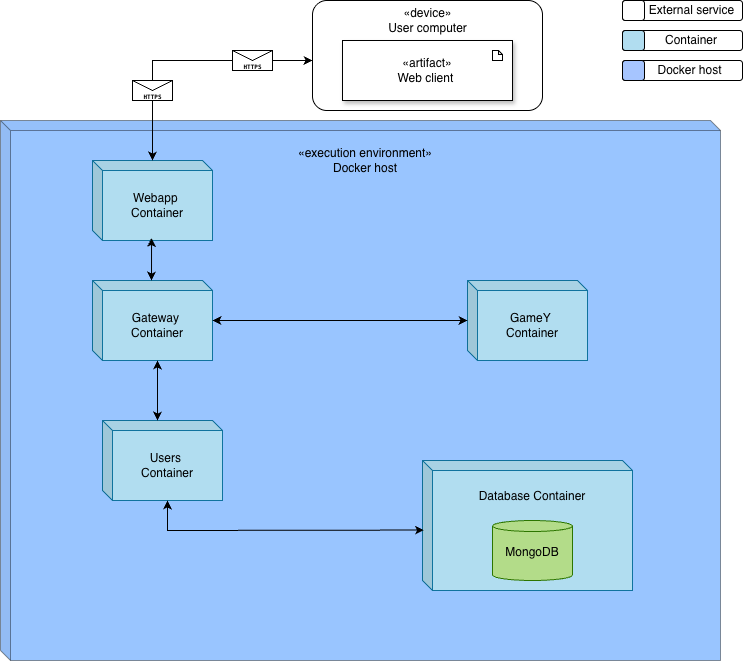

Deployment Diagram Level 1 Infrastructure
Motivation

The system uses Docker to keep services isolated and portable, ensuring smooth transitions between development, testing, and production. A microservices approach separates key functions like authentication, game logic, allowing independent scaling and preventing failures in one service from affecting the rest.

If something goes wrong, the container system helps because if one part fails, it can be restarted without affecting the others.

Quality and/or Performance Features

This system can be scaled up as needed, therefore handling growth. We’ve focused on performance too, MongoDB is used for flexible and efficient data storage for the game information.

Mapping of Building Blocks to Infrastructure
Artifact Infrastructure

webapp (React)

WebApp Container

gateway (Node.js/Express)

Gateway Container

users (Node.js/Express)

Users Container

gamey (Rust)

GameY Container

Database (MongoDB)

Database Container

8. Cross-cutting Concepts

8.1. Persistence and Data Access

The system uses MongoDB as its NoSQL database, managed through Mongoose as the ODM (Object Document Mapper) abstraction layer.

The connection is established via the MONGO_URI environment variable. If not defined, the application falls back to mongodb://mongo:27017/yovi, intended for Docker Compose environments.

The main data model is User, which includes the following fields:

  • name — user display name (String)

  • email — unique email address (String, unique)

  • createdAt — creation timestamp, auto-generated (Date, default: Date.now)

To prevent model redefinition errors, Mongoose models are registered using the following pattern:

const User = mongoose.models.User || mongoose.model("User", schema);

8.2. Configuration and Environments

The application adapts its behavior based on the NODE_ENV environment variable, requiring no code changes between deployments.

The database URI is injected via MONGO_URI, allowing the application to point to different instances per environment:

Environment Configuration

Local (Docker)

Uses fallback mongodb://mongo:27017/yovi

Local (no Docker)

Set MONGO_URI=mongodb://localhost:27017/yovi

Cloud (MongoDB Atlas)

Set MONGO_URI=mongodb+srv://user:pass@cluster.mongodb.net/yovi

Production (Railway, Render, etc.)

MONGO_URI is injected automatically by the platform

8.3. Test Data (Seeding)

In non-production environments (NODE_ENV !== "production"), the database is cleared and populated with predefined test data on every application startup.

This guarantees a known and reproducible state for development and testing, removing any dependency on external or pre-existing data. The seed data is centralized in the database configuration file.

if (process.env.NODE_ENV !== "production") {
  await User.deleteMany({});
  await User.insertMany(seedUsers);
}

This logic is completely disabled in production, protecting real data from accidental deletion or corruption.

8.4. Error Handling

Database connection errors are handled centrally inside the connectDB() function:

  • Caught via try/catch

  • Logged to the console using console.error

  • Re-thrown with throw err to prevent the application from starting in an invalid state without a database connection

This behavior applies across the entire application, as no module can operate correctly without an established database connection.

8.5. Testing Strategy

The project uses a component and integration testing approach based on the following tools:

  • Vitest — test runner and assertion library

  • React Testing Library — component rendering and user interaction simulation

  • @testing-library/user-event — realistic user event simulation (typing, clicking)

  • @testing-library/jest-dom — extended DOM matchers

Tests are organized using describe blocks per component or feature, and cover the following scenarios:

  • Validation — ensures the UI shows the correct error messages when required fields are empty.

  • Successful API response — mocks fetch to return a successful response and verifies the UI reflects it.

  • API error response — mocks fetch to return ok: false and verifies the error message is displayed.

  • Network failure — mocks fetch to reject entirely and verifies a fallback error message appears.

  • Default error messages — verifies that when the API returns no error detail, a generic fallback ("Server error", "Network error") is shown.

  • Backend connectivity — verifies the application correctly displays online/offline status based on backend reachability.

All external dependencies (e.g., fetch) are mocked using vi.fn() and restored after each test via afterEach) ⇒ vi.restoreAllMocks(, ensuring test isolation.

8.6. End-to-End (E2E) Testing

The project includes end-to-end tests using Cucumber (BDD) combined with Playwright as the browser automation engine.

Tests are written in Given/When/Then format, making them readable and traceable to user stories:

  • Given — sets up the initial state (e.g., navigating to the register page)

  • When — simulates user actions (e.g., filling a form and submitting)

  • Then — asserts the expected outcome (e.g., success or error message visible)

The following scenarios are covered:

  • Successful registration — fills the username field and verifies the welcome message appears

  • API error (400) — intercepts the network call via page.route() and returns a mocked error response

  • Network failure — aborts the network call entirely and verifies the fallback error message

Network interception is done at the browser level using Playwright’s page.route(), allowing full control over API responses without modifying the backend. UI assertions rely on CSS class selectors (.success-message, .error-message) and waitForSelector with a timeout to handle async rendering.

In addition to unit and component tests, the project includes End-to-End (E2E) tests using:

  • Cucumber — BDD-style test definitions using Given/When/Then syntax

  • Playwright — browser automation for real user interaction simulation

E2E tests cover full user flows through the actual UI, including:

  • Successful registration flow

  • API error handling (mocked via page.route())

  • Network failure scenarios (aborted requests)

Network calls are intercepted and mocked at the browser level using Playwright’s page.route(), allowing E2E tests to run in isolation without a live backend.

8.7. YEN Notation

YEN (Y-game Extended Notation) is the standard format used across the system to represent the state of a Game Y match at any point in time. It is used as the communication language between the TypeScript web application and the Rust game logic module.

A game state is expressed as a JSON object with the following fields:

  • size — the board size (number of cells per side)

  • turn — the identifier of the player whose turn it is

  • players — array of player identifiers

  • layout — string representing the current piece placement on the board, using / as row separators and . for empty cells

Example:

{
  "size": 4,
  "turn": "R",
  "players": ["B", "R"],
  "layout": "B/.B/RB./B..R"
}

This notation is transversal to the entire system — any component that reads or writes game state must produce and consume valid YEN format.ifndef::imagesdir[:imagesdir: ../images]

9. Architecture Decisions

The ADRs (Architecture Decision Records) are stored in the GitHub Wiki of the project and are available at: https://github.com/Arquisoft/yovi_en1c/wiki/Architectural-Decisions

Contents

Important, expensive, large scale or risky architecture decisions including rationales. With "decisions" we mean selecting one alternative based on given criteria.

Please use your judgement to decide whether an architectural decision should be documented here in this central section or whether you better document it locally (e.g. within the white box template of one building block).

Avoid redundancy. Refer to section 4, where you already captured the most important decisions of your architecture.

Motivation

Stakeholders of your system should be able to comprehend and retrace your decisions.

Form

Various options:

  • ADR (Documenting Architecture Decisions) for every important decision

  • List or table, ordered by importance and consequences or:

  • more detailed in form of separate sections per decision

Further Information

See Architecture Decisions in the arc42 documentation. There you will find links and examples about ADR.

10. Quality Requirements

Content

This section contains all quality requirements as quality tree with scenarios. The most important ones have already been described in section 1.2. (quality goals)

Here you can also capture quality requirements with lesser priority, which will not create high risks when they are not fully achieved.

Motivation

Since quality requirements will have a lot of influence on architectural decisions you should know for every stakeholder what is really important to them, concrete and measurable.

Further Information

See Quality Requirements in the arc42 documentation.

10.1. Quality Tree

The following diagram shows the hierarchical structure of the main non-functional requirements.

Quality Tree
Content

The quality tree (as defined in ATAM – Architecture Tradeoff Analysis Method) with quality/evaluation scenarios as leafs.

Motivation

The tree structure with priorities provides an overview for a sometimes large number of quality requirements.

Form

The quality tree is a high-level overview of the quality goals and requirements:

  • tree-like refinement of the term "quality". Use "quality" or "usefulness" as a root

  • a mind map with quality categories as main branches

In any case the tree should include links to the scenarios of the following section.

10.2. Quality Scenarios

Quality Goal Scenario Description Measure

Time Behaviour

Fast game action processing

Backend validates player’s move and frontend updates the board quickly.

Move is visible to players within a second.

Time Behaviour

Page loading

The frontend should load the application and the game lobby without excessive delay.

No longer than five seconds to load the game page.

Ease-of-Use

First time user starts a game

A new user opens the app for the first time and wants to start a match.

First time user should be able to start a match within two minutes of opening the app.

Ease-of-Use

Intuitive game interface

Players are automatically aware of whose turn it is and how to do their move without thinking.

User testing with new users does not show any signs of struggle with the gameplay use.

Attractiveness

Pleasant user interface

Consistent layout and color scheme across the application.

Test users do not complain about annoyance with the application’s outlook.

Availability

Server stability

Game should be available for players as much as possible.

MTBF goal of over 99%

Consistency

Game state tracking

Game state is stored in the backend correctly upon each move.

Final game state stored correctly in the database after each game.

Resilience

Handling connection failures

Players should be able to restore the game after losing connection.

Game can be reconnected and continued from the same state within 10 seconds of connection recovery.

Modularity

Separate functional units

Modules should be able to be edited in isolation as much as possible, with minimal coupling between the functional units.

Modules can be tested in isolation for their functionalities.
Contents

Concretization of (sometimes vague or implicit) quality requirements using (quality) scenarios.

These scenarios describe what should happen when a stimulus arrives at the system.

For architects, two kinds of scenarios are important:

  • Usage scenarios (also called application scenarios or use case scenarios) describe the system’s runtime reaction to a certain stimulus. This also includes scenarios that describe the system’s efficiency or performance. Example: The system reacts to a user’s request within one second.

  • Change scenarios describe a modification of the system or of its immediate environment. Example: Additional functionality is implemented or requirements for a quality attribute change.

Motivation

Scenarios make quality requirements concrete and allow to more easily measure or decide whether they are fulfilled.

Especially when you want to assess your architecture using methods like ATAM you need to describe your quality goals (from section 1.2) more precisely down to a level of scenarios that can be discussed and evaluated.

Form

Tabular or free form text.

11. Testing

To ensure the quality requirements and scenarios defined above are met, the system undergoes rigorous testing across multiple levels.

11.1. Unitary Tests

Unitary tests isolate individual components, functions, and services to verify their correctness in a controlled environment.

  • Frontend: Webapp UI components and hooks are tested using tools like Vitest and React Testing Library to ensure correct rendering, localization (i18n), and state management.

  • Gateway: API gateway is tested to ensure the performance and rerouting to the backend services.

  • Backend: All services tested to ensure they execute as expected independent of external databases or network dependencies.

11.2. E2E Tests

End-to-End (E2E) testing validates the entire application flow from the user’s perspective.

  • These tests simulate real user interactions in a browser environment.

  • They ensure that the frontend, backend microservices, and databases integrate correctly, verifying that core user journeys (e.g., logging in, viewing user lists) complete successfully.

11.3. Load Testing (Gatling)

Load testing was conducted using Gatling to verify the system’s resilience under concurrent usage. The test mocks for each user, loggin, playing against easy bot on small board, and against heuristic bot in largest board, in between the stats board is checked and some log out and log in is performed too.

11.3.1. Test Environment

  • Platform: Azure Virtual Machine

  • Configuration: 1 vCPU, 2 GB RAM

11.3.2. Load Test Results

The following table summarizes the performance metrics retrieved from the Gatling reports for scenarios of 4 and 10 concurrent users.

Metric 4 Concurrent Users 10 Concurrent Users

Total Requests

152

380

Successful Requests (OK)

148

366

Failed Requests (KO)

4

14

Error Rate

2.63%

3.68%

Mean Response Time

3,248 ms

7,572 ms

95th Percentile

22,991 ms

51,501 ms

Max Response Time

25,696 ms

60,007 ms

Primary Errors

Status 400

Status 400 & Request Timeouts

11.3.3. Analysis

  • Performance Bottlenecks: The test results indicate that while the system remains functional, it suffers from extreme latency. A 95th percentile of 51 seconds under just 10 users suggests the CPU is likely saturated, leading to the observed 60-second request timeouts.

  • Infrastructure Assessment: The current 1 vCPU and 2 GB RAM configuration is insufficient for handling concurrent traffic effectively, as the overhead of managing multiple microservices and the database exceeds the available processing power.

  • Considerations: Upgrading the infrastructure to at least 2 vCPUs and 4 GB RAM would allow for better thread management and enough memory buffer to prevent the request queuing that is currently causing the high response times.

12. Risks and Technical Debts

Following are stated the key risks and potential areas of technical debt that require attention (Relevance from 1(low) to 3(high)):

Category & Item Relevance Considerations Potential Mitigation

Performance Bottleneck (Resource Exhaustion)

3

Gatling tests show 95th percentile response times >50s and timeouts with only 10 concurrent users on the current 1vCPU/2GB RAM VM.

Upgrade Azure VM to 2vCPU/4GB RAM, optimize database queries, and implement horizontal scaling if load increases.

Workflow Imbalance (End-of-sprint rush)

2

Concentrating workload at the end of a sprint often leads to rushed implementation, higher defect rates, and technical debt.

Maintain strict "Work in Progress" (WIP) limits, ensure continuous integration, and prioritize the completion of tasks early in the cycle.

Integration Risk (Merge conflicts)

2

Frequent branch conflicts disrupt development momentum and may indicate gaps in testing or architectural alignment.

Require passing tests before merging, follow a consistent branching strategy, and address the root causes of recurring test failures.

Technology Adoption (React, MongoDB, Rust)

2

Limited experience with the project stack can result in inefficient code patterns, performance issues, or future maintenance challenges.

Share technical knowledge within the team, focus code reviews on framework best practices, and allocate time for researching documentation.

Knowledge Silos (Bus factor)

1

Relying on specific individuals for critical system knowledge creates a bottleneck and risks the long-term maintainability of the project.

Standardize documentation for core logic, encourage pair programming for complex features, and record all major design decisions in ADRs.
Contents

A list of identified technical risks or technical debts, ordered by priority

Motivation

“Risk management is project management for grown-ups” (Tim Lister, Atlantic Systems Guild.)

This should be your motto for systematic detection and evaluation of risks and technical debts in the architecture, which will be needed by management stakeholders (e.g. project managers, product owners) as part of the overall risk analysis and measurement planning.

Form

List of risks and/or technical debts, probably including suggested measures to minimize, mitigate or avoid risks or reduce technical debts.

Further Information

See Risks and Technical Debt in the arc42 documentation.

13. Glossary

Contents

The most important domain and technical terms that your stakeholders use when discussing the system.

You can also see the glossary as source for translations if you work in multi-language teams.

Motivation

You should clearly define your terms, so that all stakeholders

  • have an identical understanding of these terms

  • do not use synonyms and homonyms

Form

A table with columns <Term> and <Definition>.

Potentially more columns in case you need translations.

Further Information

See Glossary in the arc42 documentation.

Term Definition

Game Y Hexagonal Grid

The core hexagonal grid-based game that serves as the primary functional focus of the system.

YEN Notation

A specific data format used in this project to represent the game state and moves within JSON messages.

GameY Bot (AI)

An automated player implemented in the GameY Service (Rust) that provides moves and strategic logic to compete.

Gateway (Facade)

A central entry point (Node.js/Express) that routes frontend requests to internal microservices, improving security and decoupling.

Docker

A platform used to package the Webapp, Users Service, and GameY Service into isolated containers for consistent deployment.

Docker-compose

An orchestration tool used to define and run the multi-container environment (including the database) with a single command.

Microservices Approach

An architectural style where the system is divided into small, independent services (Persistence, Game Engine, Frontend) that communicate between them.

MongoDB

The NoSQL database used to store flexible data structures such as user profiles, match history, and game states.

Rust (Cargo)

The high-performance programming language and package manager used specifically for the GameY engine to ensure rapid move calculation.

React (Vite)

The frontend library and build tool used to create the interactive, component-based user interface for the browser.

Deployment Virtual Machine (Azure VM)

The on-demand, scalable computing resource that provides a virtualized Linux environment in the cloud, offering full control over the operating system and hardware configuration.
