About arc42

arc42, the template for documentation of software and system architecture.

Template Version 8.2 EN. (based upon AsciiDoc version), January 2023

Created, maintained and © by Dr. Peter Hruschka, Dr. Gernot Starke and contributors. See https://arc42.org.

Note

This version of the template contains some help and explanations. It is used for familiarization with arc42 and the understanding of the concepts. For documentation of your own system you use better the plain version.

1. Introduction and Goals

WIChat is an interactive web-based quiz game where users guess locations from images, earning rewards for correct answers. The system generates questions and hints using Wikidata and an external LLM, enhancing user experience through conversational clues. The platform includes user registration, game history tracking, and various gameplay modes.

Describes the relevant requirements and the driving forces that software architects and development team must consider. These include

  • underlying business goals,

  • essential features,

  • essential functional requirements,

  • quality goals for the architecture and

  • relevant stakeholders and their expectations

1.1. Requirements Overview

1.1.1. Business Goals

  • Enhance audience engagement through an interactive online quiz.

  • Automate question and hint generation using AI and Wikidata.

  • Provide a scalable and accessible web-based trivia game.

1.1.2. Essential Features

  • User registration, authentication, and game history tracking.

  • Quiz system with image-based multiple-choice questions.

  • AI-powered hint system via an external LLM API.

  • Timed responses, scoring, and rewards.

  • API access for user data and question generation.

1.1.3. Essential Functional Requirements

  • Automatic question and answer generation from Wikidata.

  • Conversational AI hints for user assistance.

  • Fair play enforcement with time constraints.

  • User performance tracking and leaderboard system.

Contents

Short description of the functional requirements, driving forces, extract (or abstract) of requirements. Link to (hopefully existing) requirements documents (with version number and information where to find it).

Motivation

From the point of view of the end users a system is created or modified to improve support of a business activity and/or improve the quality.

Form

Short textual description, probably in tabular use-case format. If requirements documents exist this overview should refer to these documents.

Keep these excerpts as short as possible. Balance readability of this document with potential redundancy w.r.t to requirements documents.

Further Information

See Introduction and Goals in the arc42 documentation.

1.2. Quality Goals

Priority Quality Goal Motivation

High

Scalability

Ensure the system can support a growing number of users and future feature expansions.

High

Performance

Provide low-latency interactions for real-time quiz gameplay.

High

Security

Protect user data and prevent cheating or unauthorized access.

High

Usability

Ensure that users can easily navigate and interact with the application.

Medium

Availability

Guarantee uptime and reliability for a seamless user experience.

Medium

Maintainability

Use a modular architecture to facilitate updates and future improvements.
Contents

The top three (max five) quality goals for the architecture whose fulfillment is of highest importance to the major stakeholders. We really mean quality goals for the architecture. Don’t confuse them with project goals. They are not necessarily identical.

Consider this overview of potential topics (based upon the ISO 25010 standard):

Categories of Quality Requirements
Motivation

You should know the quality goals of your most important stakeholders, since they will influence fundamental architectural decisions. Make sure to be very concrete about these qualities, avoid buzzwords. If you as an architect do not know how the quality of your work will be judged…​

Form

A table with quality goals and concrete scenarios, ordered by priorities

1.3. Stakeholders

Contents

Explicit overview of stakeholders of the system, i.e. all person, roles or organizations that

  • should know the architecture

  • have to be convinced of the architecture

  • have to work with the architecture or with code

  • need the documentation of the architecture for their work

  • have to come up with decisions about the system or its development

Motivation

You should know all parties involved in development of the system or affected by the system. Otherwise, you may get nasty surprises later in the development process. These stakeholders determine the extent and the level of detail of your work and its results.

Form

Table with role names, person names, and their expectations with respect to the architecture and its documentation.

Role/Name Contact Expectations

RTVE

RTVE Team

Ensure an engaging and well-integrated quiz experience aligned with their brand.

Users

Players

Enjoy a fun, challenging, and fair gameplay experience.

Developers

Dev Team

Work with a clear architecture and maintainable codebase.

System Administrators

Ops Team

Maintain reliable deployment, monitoring, and observability.

LLM API Providers

Third-party LLM Providers

Ensure access to the language model API.

Hosting Provider

Microsoft Azure

Provide reliable and scalable hosting solutions for the application.

2. Architecture Constraints

Contents

Any requirement that constraints software architects in their freedom of design and implementation decisions or decision about the development process. These constraints sometimes go beyond individual systems and are valid for whole organizations and companies.

Motivation

Architects should know exactly where they are free in their design decisions and where they must adhere to constraints. Constraints must always be dealt with; they may be negotiable, though.

Form

Simple tables of constraints with explanations. If needed you can subdivide them into technical constraints, organizational and political constraints and conventions (e.g. programming or versioning guidelines, documentation or naming conventions)

Further Information

See Architecture Constraints in the arc42 documentation.

2.1. Organizational Constraints

Constraints Explanations

Fixed data source

Questions, images, and hints must be generated exclusively from Wikidata data.

External language model

A LLM accessed through a predefined API will be used, limiting the choice of models, customization options, and potential for fine-tuning or adaptation to specific needs.

2.2. Technical Constraints

Constraints Explanations

Mandatory web platform

The application must be accessible via web browsers and deployed online.

Conversational hints logic

Hints must be generated while mitigating hallucinations using specific techniques, integrated with Wikidata.

Docker for containerization

Docker must be used for application containerization, as the solution’s architecture requires that all components be packaged into containers to ensure portability, isolation, and compatibility across environments

GitHub Actions for CI/CD

GitHub Actions must be used for automating the CI/CD pipeline, ensuring seamless integration, testing, and deployment processes.

2.3. Legal and Regulatory Constraints

Constraints Explanations

Privacy compliance

User data must comply with regulations like GDPR.

Data licensing

Images and data used must adhere to Wikidata licensing policies and ensure proper usage.

2.4. Product Constraints

Constraints Explanations

Fixed question format

Each question must have one correct answer and several incorrect ones generated automatically, with balanced and coherent options.

User registration

The system must include functionalities for registration, participation history, and statistics.

Mandatory interaction

Users must interact with the system to obtain conversational hints about the questions.

Time-limited answers

Each question must be answered within a set time, necessitating efficient interaction and time management design.

Automatic generation

Both the questions and distractors must be generated automatically, restricting manual design to ensure consistency and scalability.

2.5. Operational Constraints

Constraints Explanations

Scalability

The system must support multiple simultaneous users.

Monitoring and deployment

Observability and deployment automation are required. The deployment must maintain high availability, meaning the infrastructure must be capable of handling potential failures with minimal service disruption, ensuring maximum uptime. Due to this, an online virtual machine provider must be selected for deployment.

Docker for deployment

Docker is also used in the deployment process to ensure efficient management of production, testing, and development environments. This facilitates scalability and maintenance by allowing more precise control over dependencies and configurations.

3. Context and Scope

Contents

Context and scope - as the name suggests - delimits your system (i.e. your scope) from all its communication partners (neighboring systems and users, i.e. the context of your system). It thereby specifies the external interfaces.

If necessary, differentiate the business context (domain specific inputs and outputs) from the technical context (channels, protocols, hardware).

Motivation

The domain interfaces and technical interfaces to communication partners are among your system’s most critical aspects. Make sure that you completely understand them.

Form

Various options:

  • Context diagrams

  • Lists of communication partners and their interfaces.

Further Information

See Context and Scope in the arc42 documentation.

3.1. Business Context

Contents

Specification of all communication partners (users, IT-systems, …​) with explanations of domain specific inputs and outputs or interfaces. Optionally you can add domain specific formats or communication protocols.

Motivation

All stakeholders should understand which data are exchanged with the environment of the system.

Form

All kinds of diagrams that show the system as a black box and specify the domain interfaces to communication partners.

Alternatively (or additionally) you can use a table. The title of the table is the name of your system, the three columns contain the name of the communication partner, the inputs, and the outputs.

<Diagram or Table>

<optionally: Explanation of external domain interfaces>

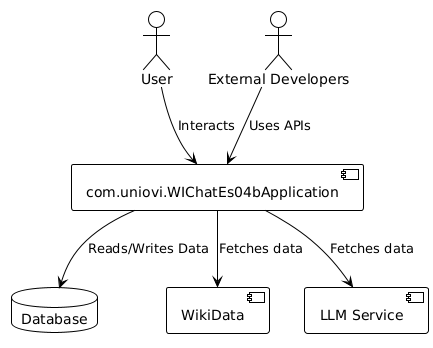

The WIChat system

WIChat is an interactive web-based quiz game application, inspired by "Saber y Ganar". Users can register, log in, and play the game, where they are presented with images and have to guess the associated place or object. The novelty lies in the integration of a conversational language model (LLM), which allows users to interact with the game and get hints for the answers dynamically. The questions and images are generated from Wikidata, providing an automated, real-time experience.

3.1.1. Involved Actors

Actor Description

User

A person who accesses the application to play the quiz game.

Administrator

Responsible for managing system infrastructure and security.

LLM Provider

External service that provides AI-generated quiz questions and hints.

Database

MySQL used to store user information, game history, and question data.

WikiData

External service used to retrieve image and metadata for question generation.

3.1.2. Business Context Table

Communication Partner Inputs Outputs

User

Login credentials, game interactions

Quiz questions, score updates

LLM Provider

Quiz prompts

AI-generated questions and answers

Database

User data, game records

Stored authentication and game history

WikiData

Data requests for images and metadata

Retrieved image and metadata for questions

3.2. Technical Context

Contents

Technical interfaces (channels and transmission media) linking your system to its environment. In addition a mapping of domain specific input/output to the channels, i.e. an explanation which I/O uses which channel.

Motivation

Many stakeholders make architectural decision based on the technical interfaces between the system and its context. Especially infrastructure or hardware designers decide these technical interfaces.

Form

E.g. UML deployment diagram describing channels to neighboring systems, together with a mapping table showing the relationships between channels and input/output.

<Diagram or Table>

<optionally: Explanation of technical interfaces>

<Mapping Input/Output to Channels>

The system consists of several services developed in Java using Spring Boot, a web frontend using HTML, and a relational database. Communication between services is handled via REST API and HTTPS.

3.2.1. Technical Interfaces

Component Technology Interface

Web Application

HTML, Spring (Java)

Connects to backend services via HTTPS

User Service

Spring (Java)

REST API for managing user data (login, history)

Question Service

Spring (Java)

REST API to retrieve and display questions and images

LLM Service

External (REST API)

Connects to external LLM provider for dynamic hints

WikiData Service

External (REST API)

Retrieves image and question metadata from Wikidata

Database

MySQL

Stores user data, game history, and question data

3.2.2. Mapping Input/Output to Channels

Component Input/Output Channel/Protocol

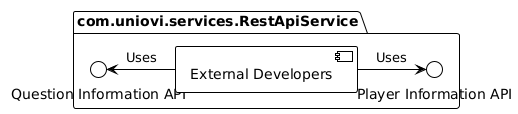

RestApiService

External developer interactions

HTTPS

Frontend

User interactions, game display

HTTPS

Database

User data, game history, questions

Specific database driver (MySQL)

WikiData

Data for question generation

HTTP

Question Generator

Generated questions

In-memory

Question Service

Questions for game

In-memory

Player Service

Player data

In-memory

LLM Service

Hint generation, AI responses

REST API via HTTPS

4. Solution Strategy

4.1. Introduction and Purpose

We chose to build upon last year’s base application, selecting technologies that we were most comfortable with and that aligned well with the project requirements. The application consists of a web-based platform where users can register, compete against others, and answer questions. Additionally, it integrates a Large Language Model (LLM) to provide hints and assist users in responding to quiz questions.

This section outlines the key architectural decisions and strategies that shape the system, including technology choices, architectural patterns, and approaches to achieving the system’s quality goals.

4.2. Technology Decisions

  • Architecture: Model-View-Controller (MVC) pattern.

  • Backend: Spring Boot for API development and business logic.

  • Frontend: Thymeleaf for dynamic rendering within the MVC framework.

  • Database: HSQLDB for structured data storage.

  • Authentication: Spring Security with JWT for secure access control.

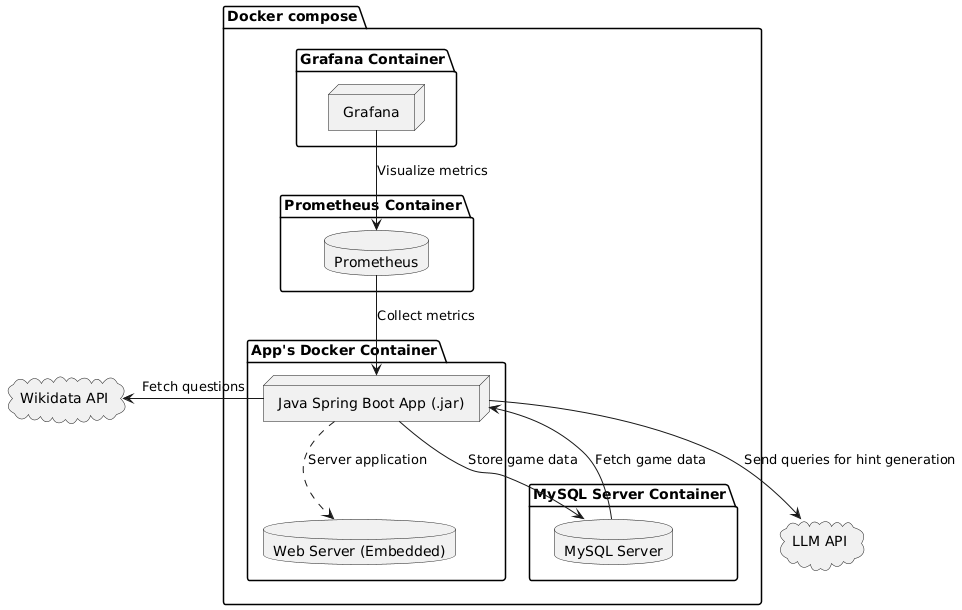

  • Hosting & Deployment: Docker and Kubernetes for scalability.

  • Integration: Wikidata API for question generation and an external LLM API for hints.

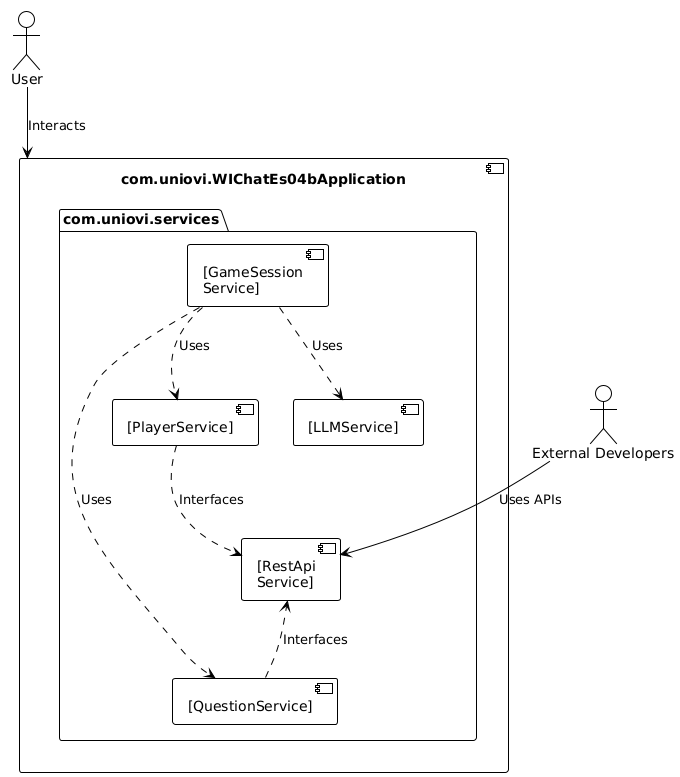

4.3. System Decomposition

The application follows an MVC architecture with clearly defined layers:

  • Model Layer: Represents the data and business logic.

  • View Layer: Uses Thymeleaf templates for rendering dynamic content.

  • Controller Layer: Manages requests and responses, handling business logic with Spring Boot.

  • Database: Stores user data, questions, and game history in PostgreSQL.

  • LLM Integration: Provides AI-generated hints via an external API.

  • External APIs: Wikidata for question data and third-party services for deployment.

4.4. Strategies for Quality Goals

Priority Quality Goal Strategy

High

Scalability

Load balancing, database connection pooling, and optimized queries.

High

Performance

Asynchronous processing with Spring Boot and caching mechanisms.

High

Security

Spring Security, encrypted storage, and role-based access control.

Medium

Availability

Deployment with Kubernetes and monitoring tools.

Medium

Maintainability

Modular architecture with well-documented Spring Boot services.

4.5. Organizational Decisions

  • Development Process: Agile methodology with Scrum.

  • Collaboration Tools: GitHub for version control and Jira for task management.

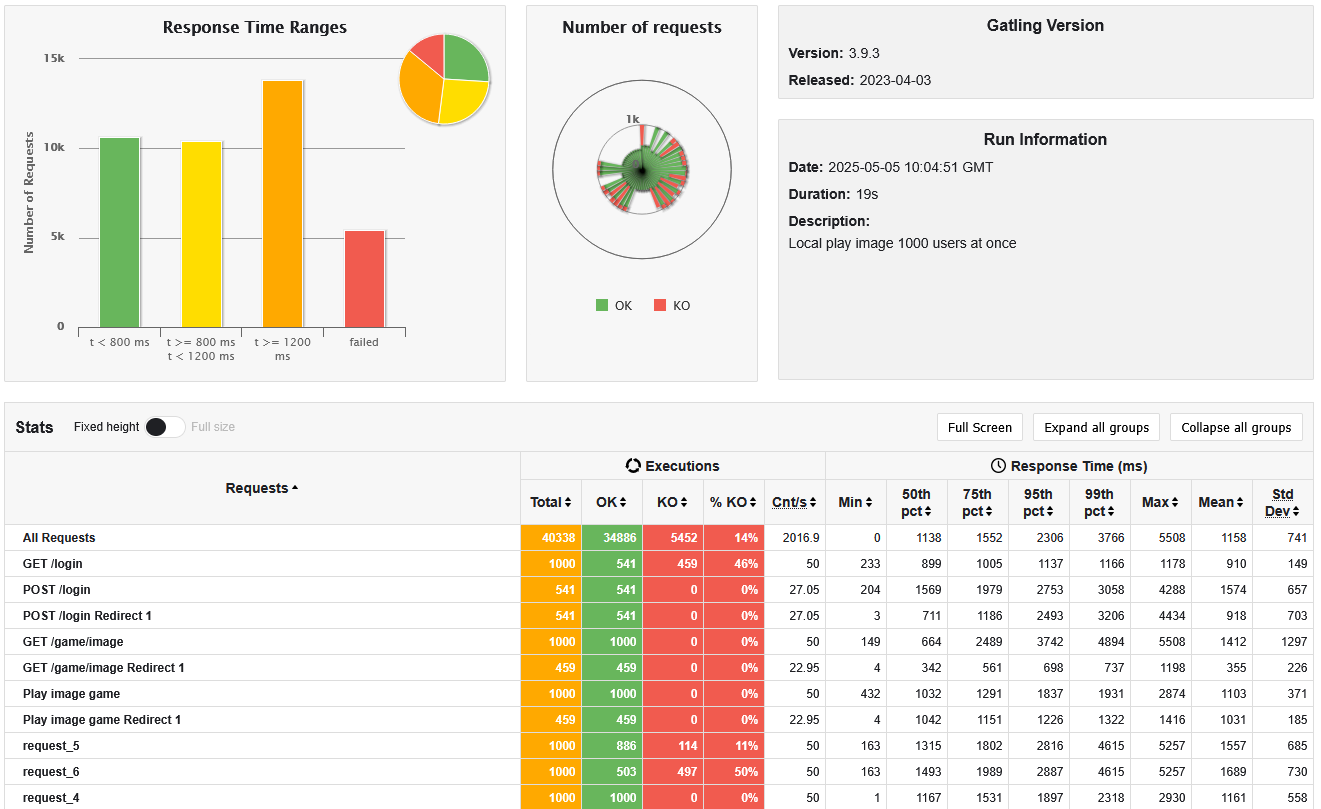

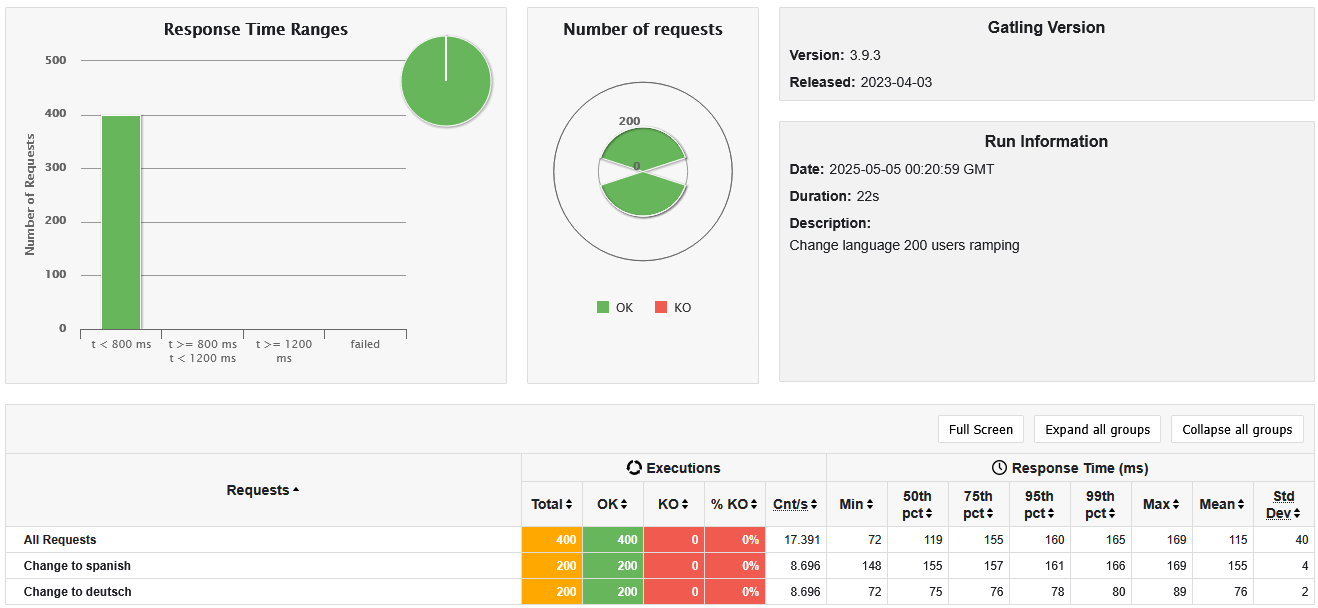

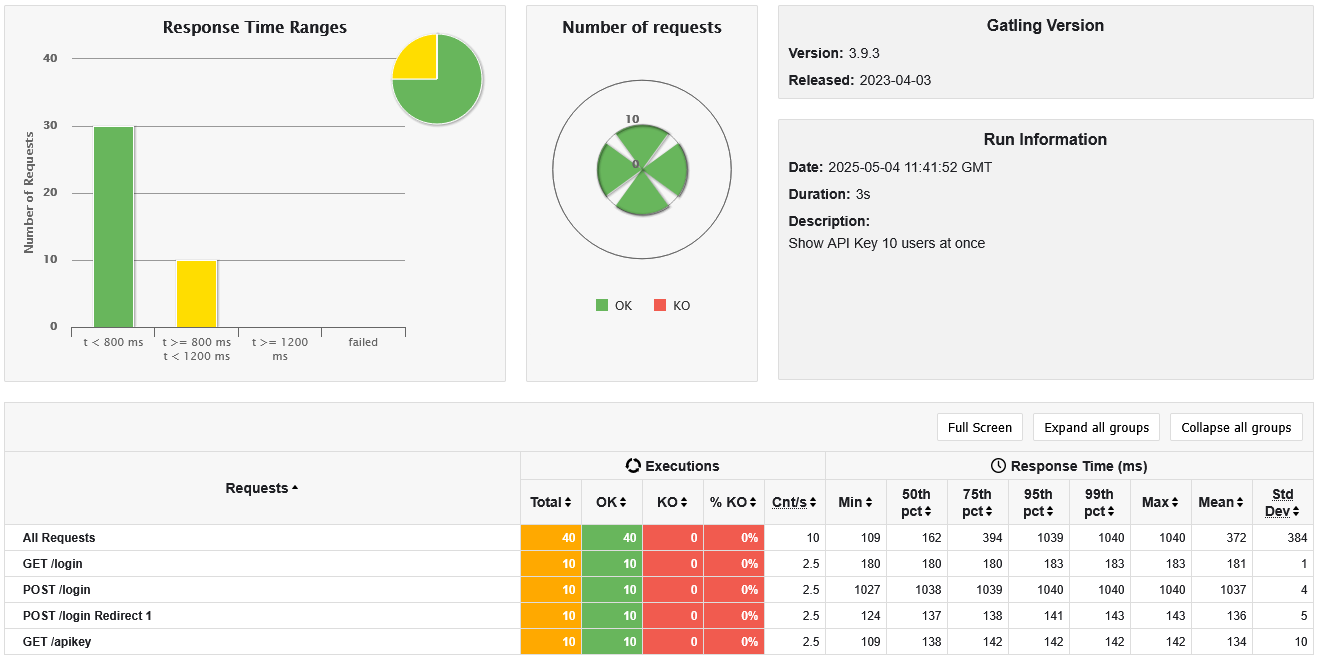

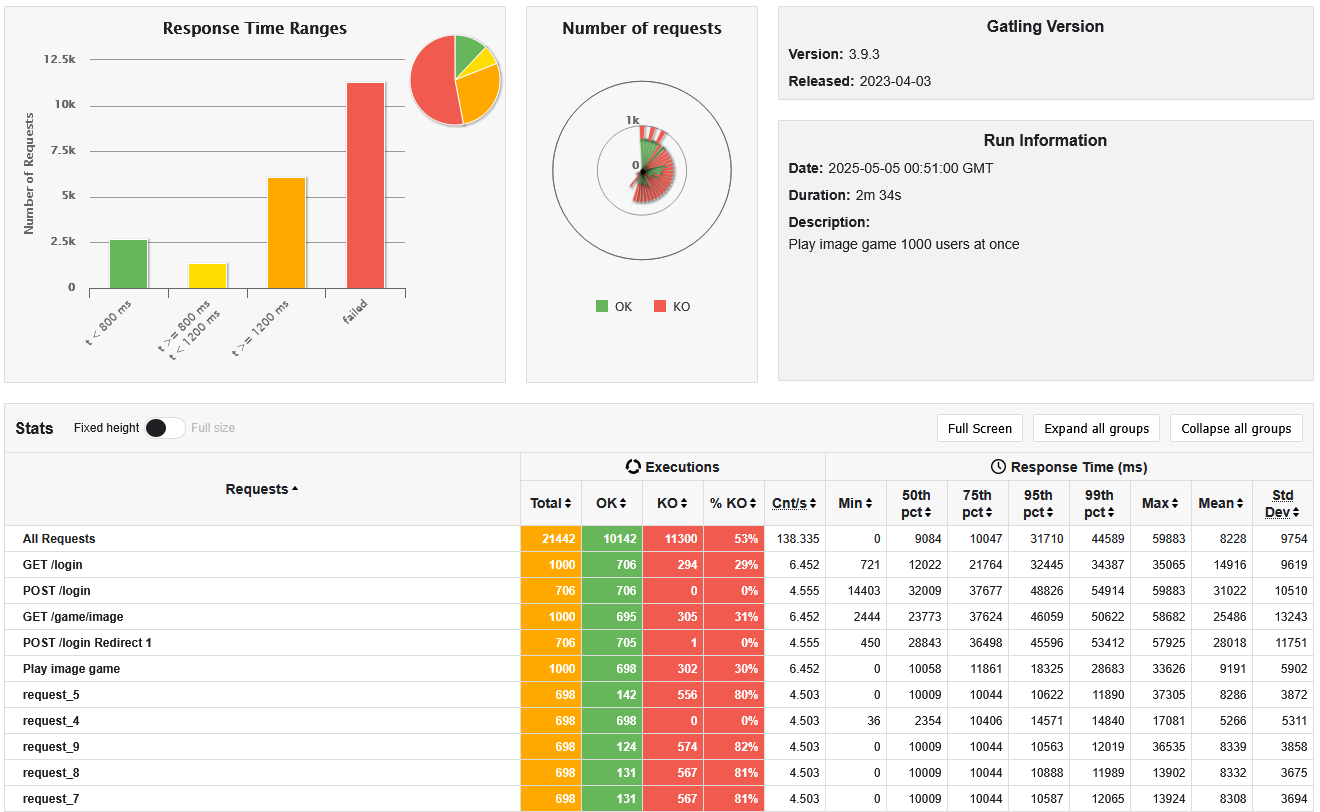

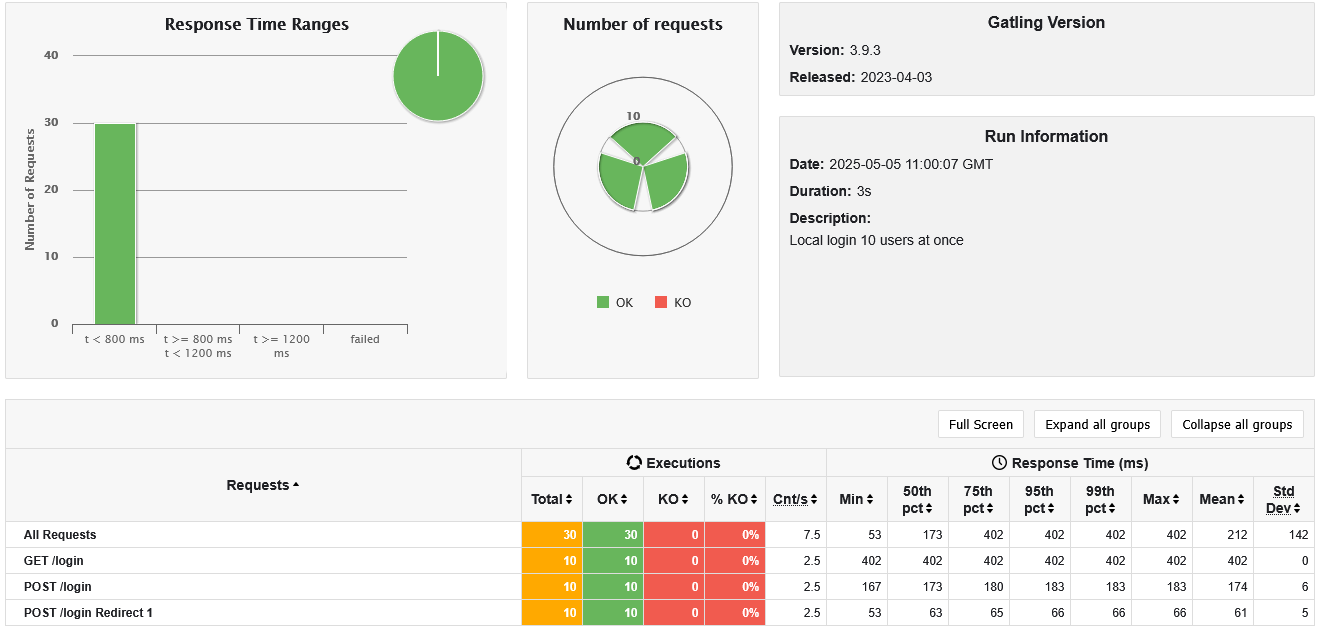

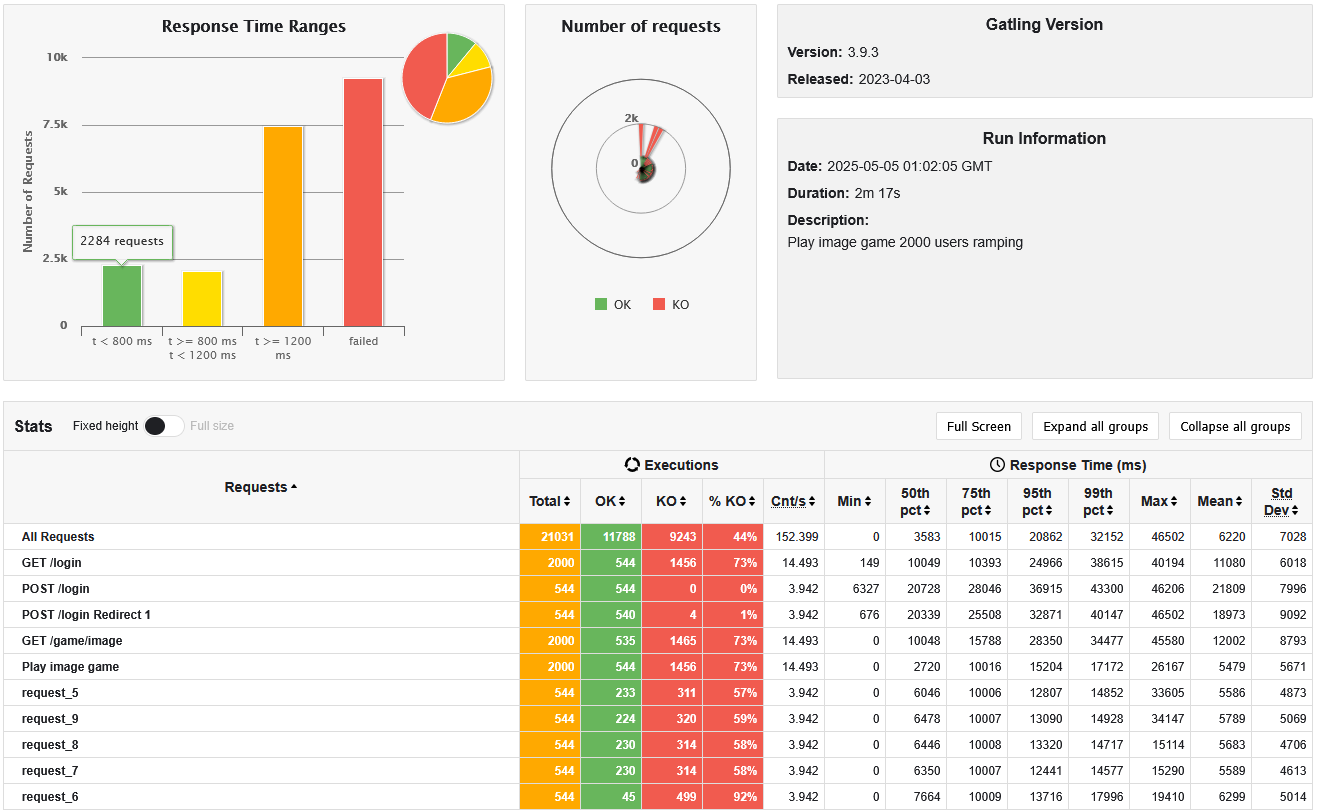

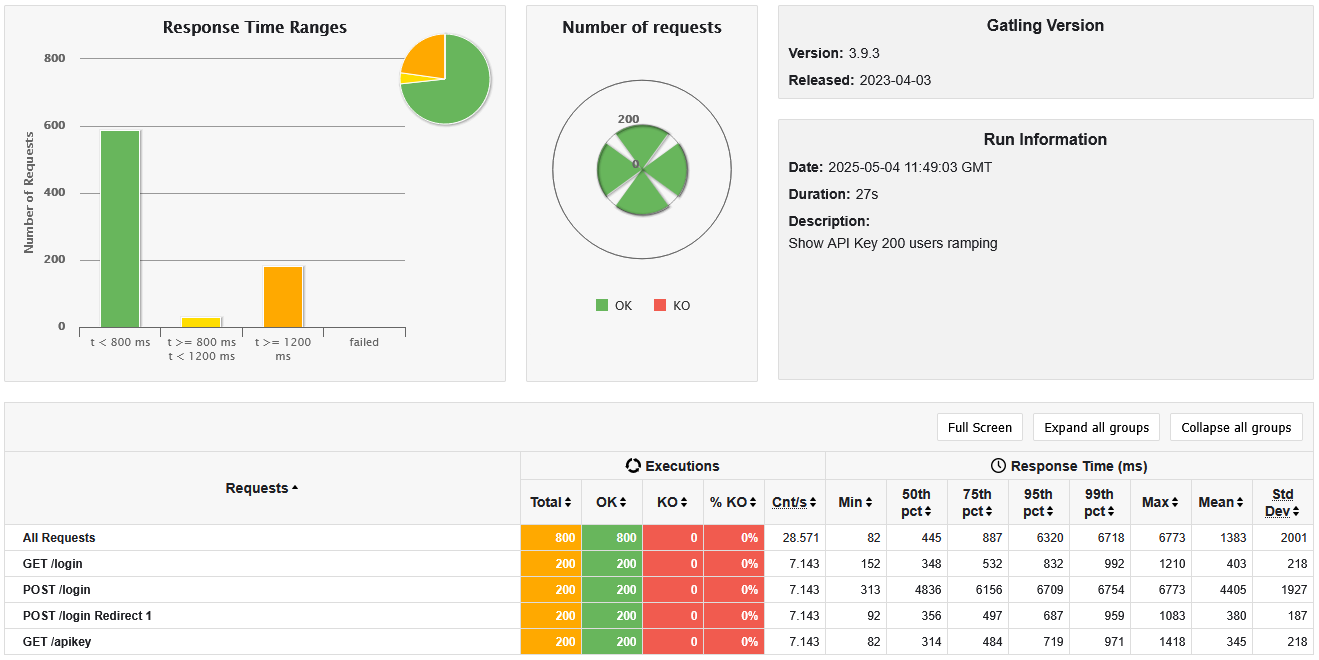

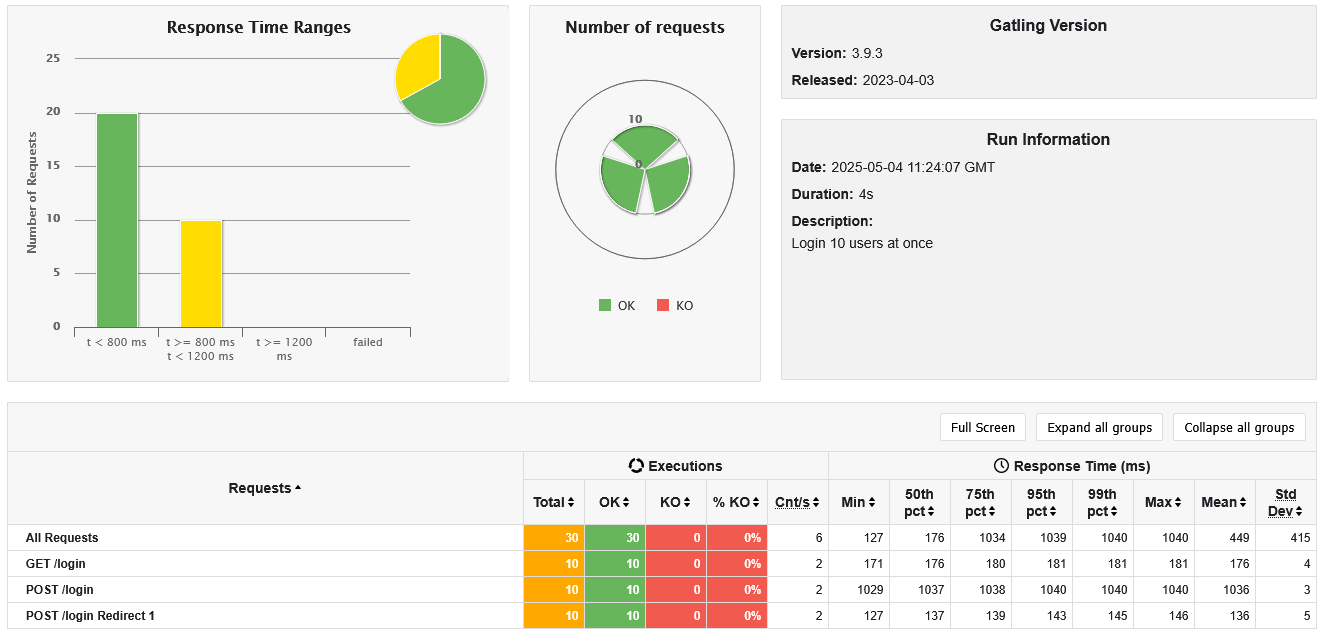

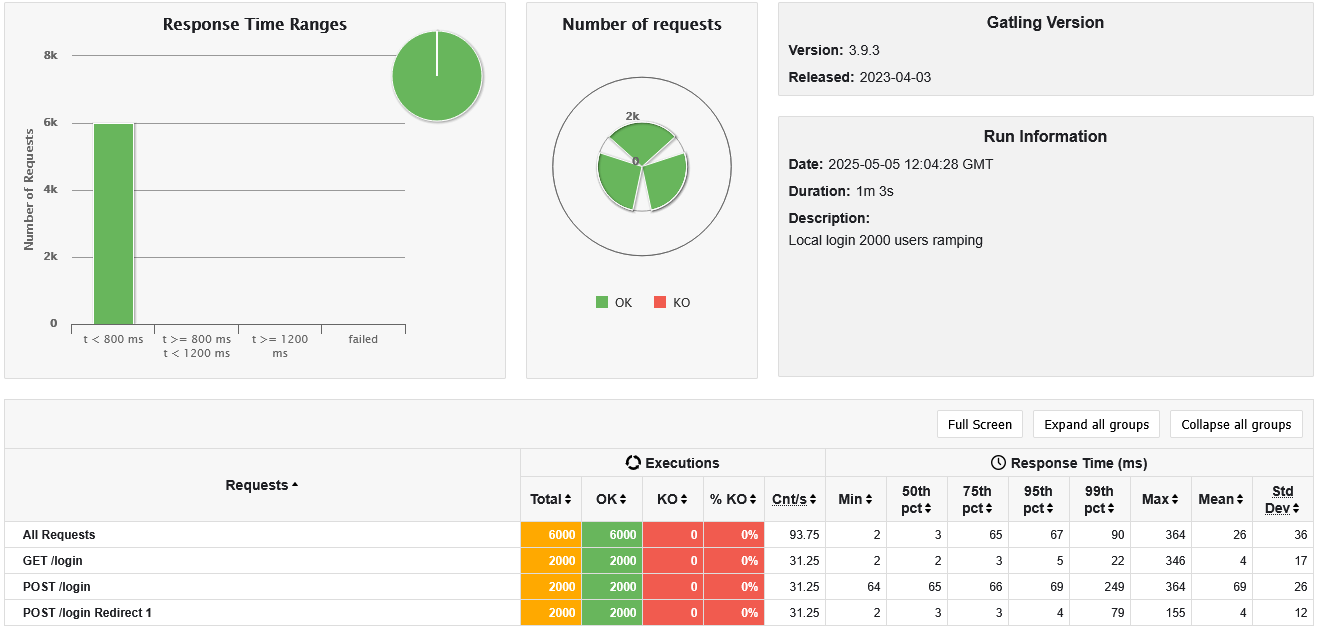

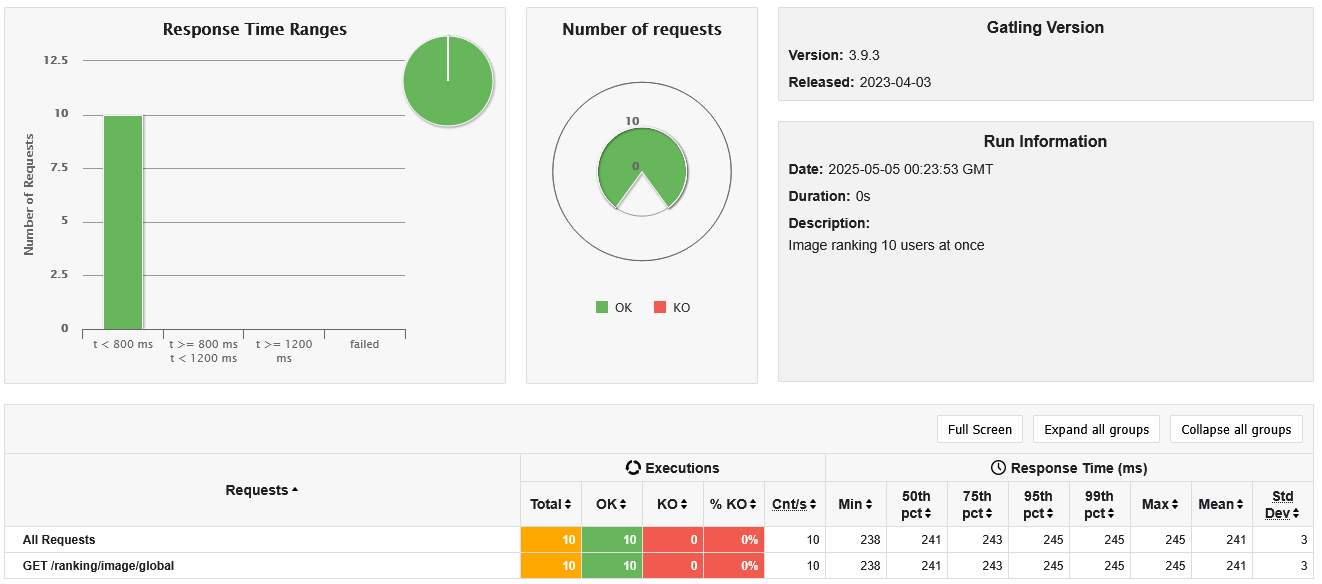

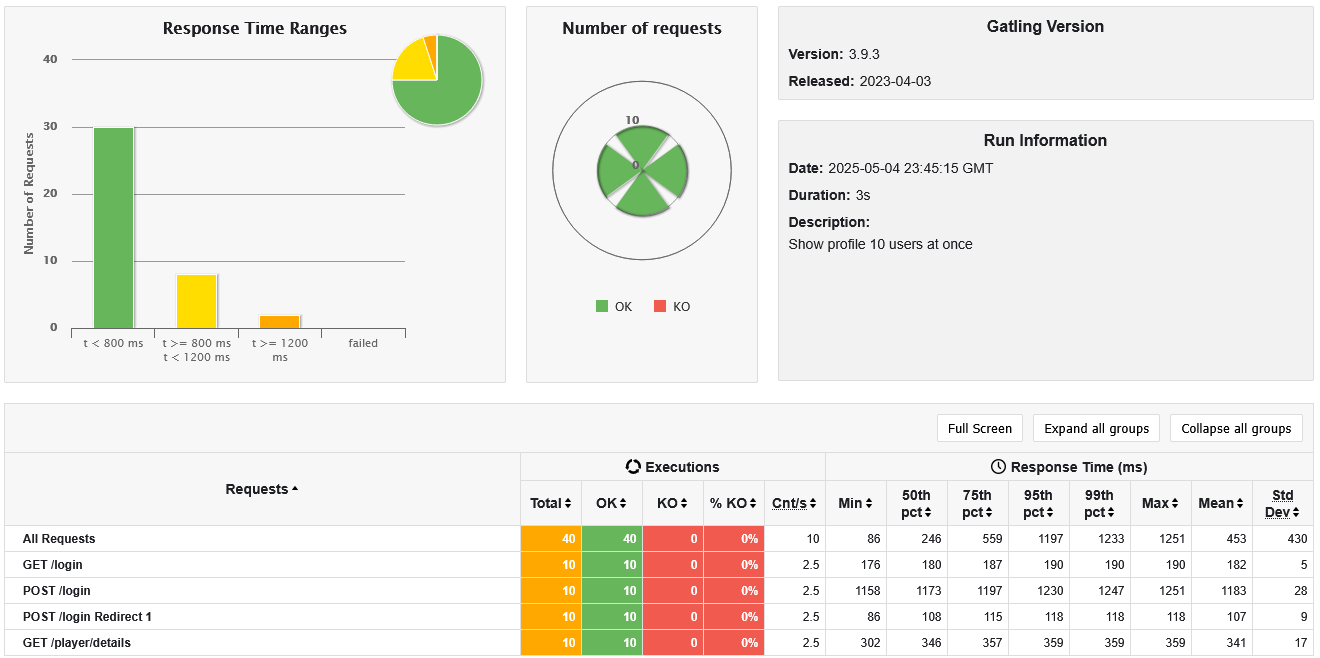

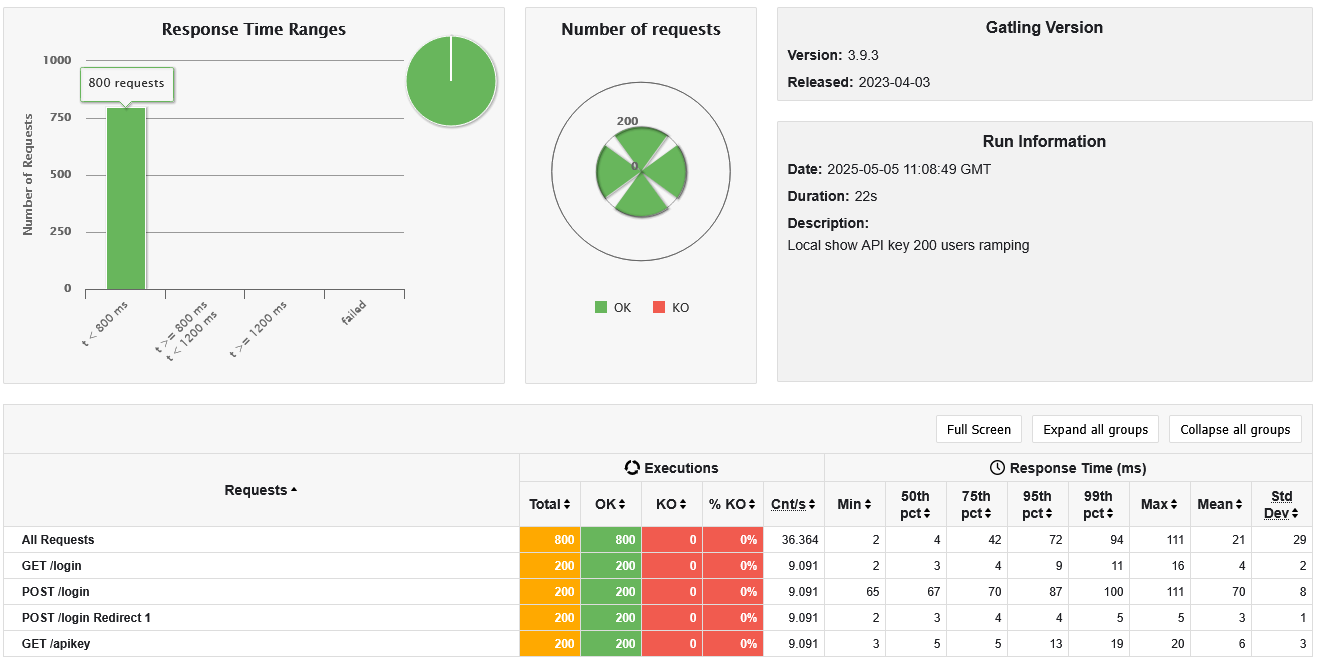

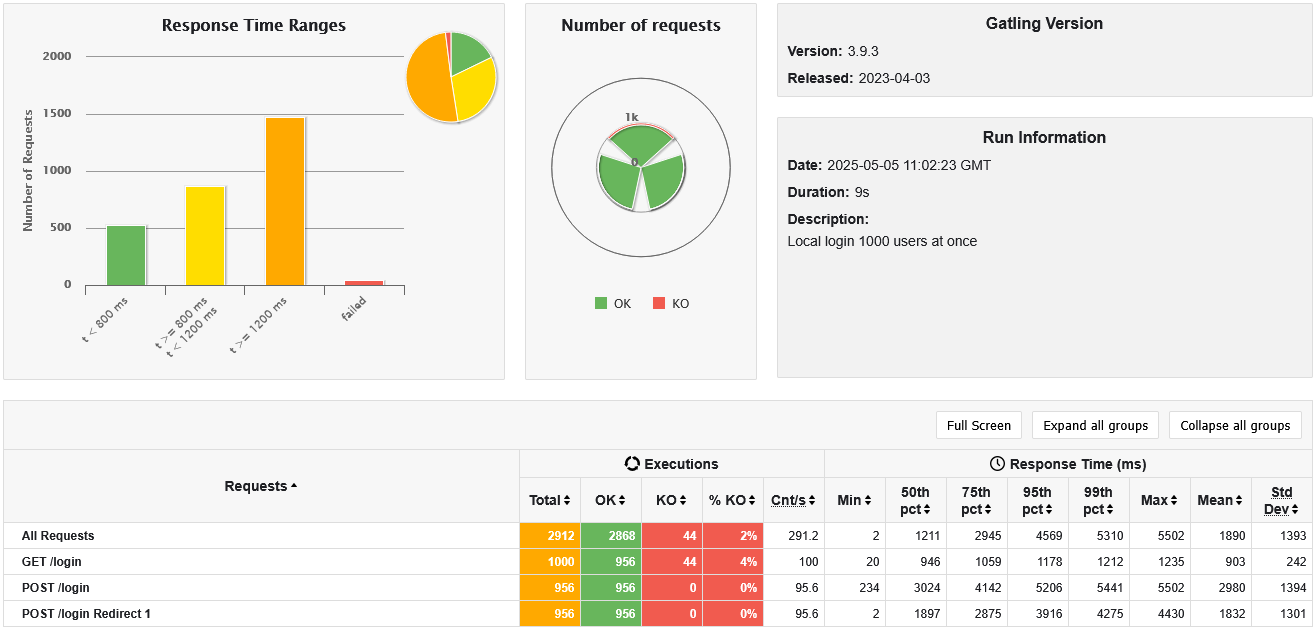

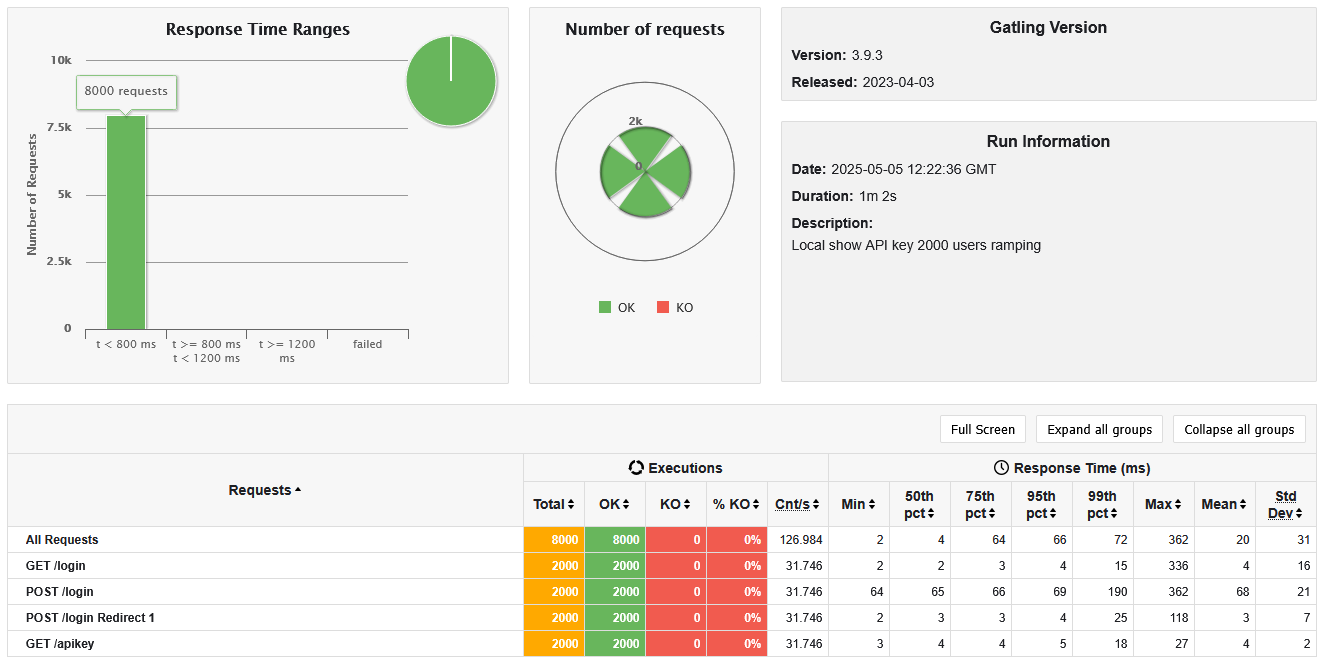

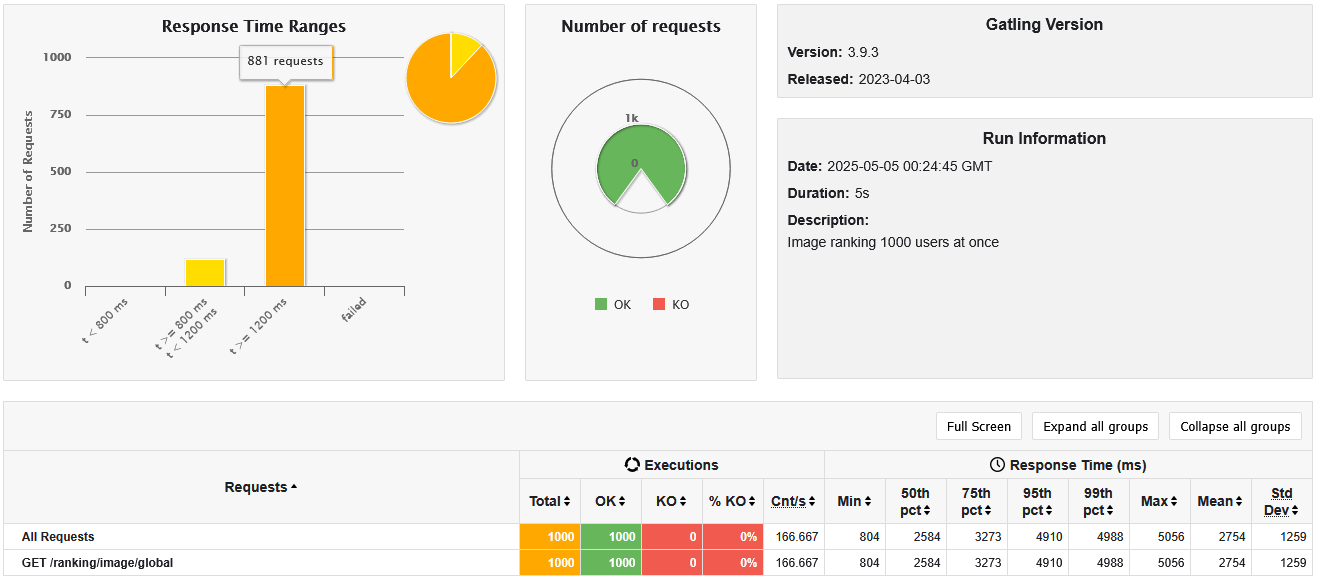

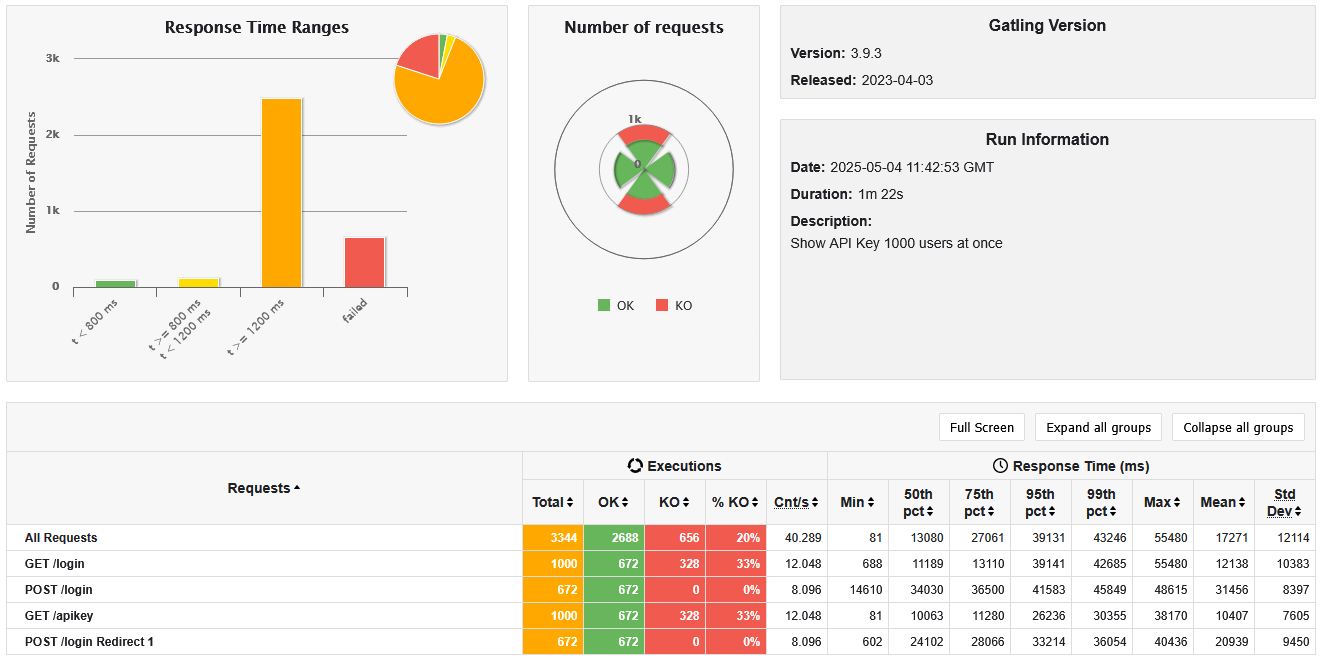

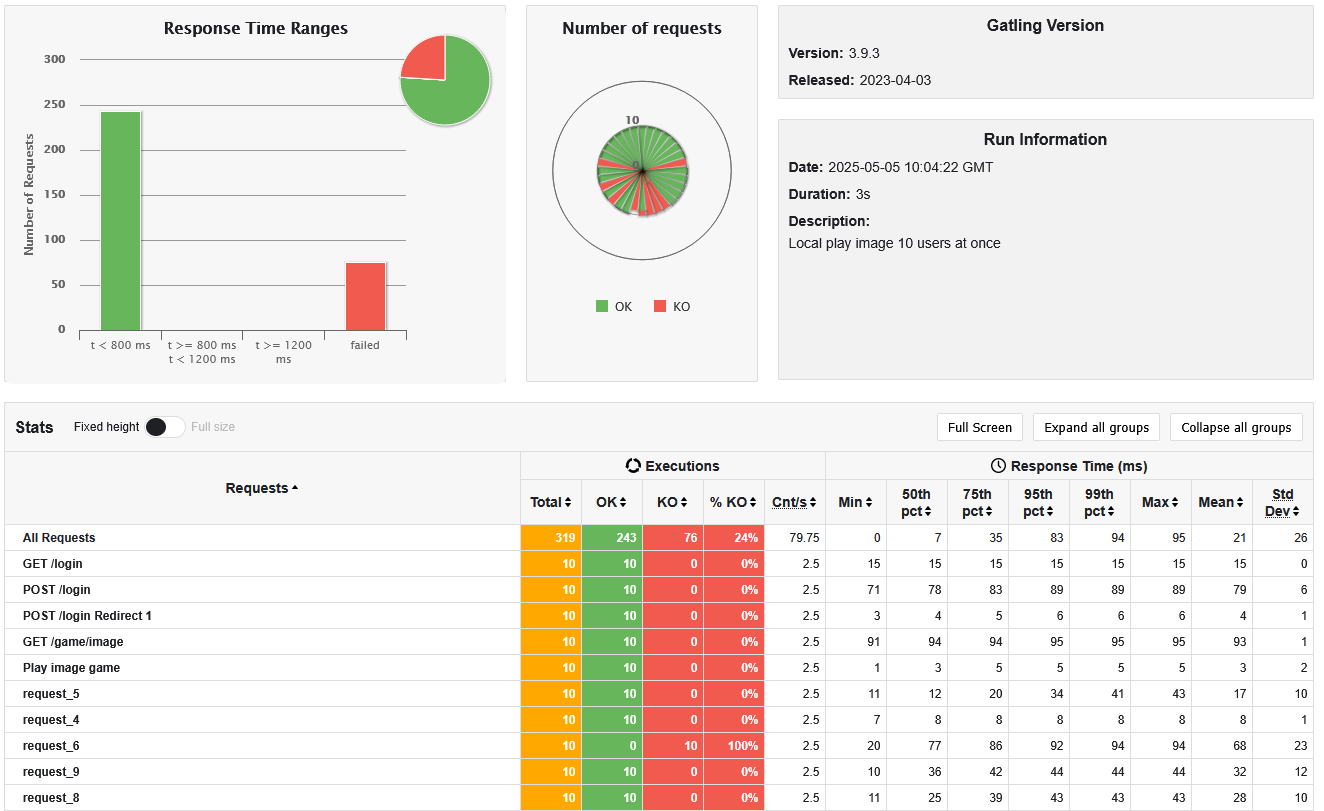

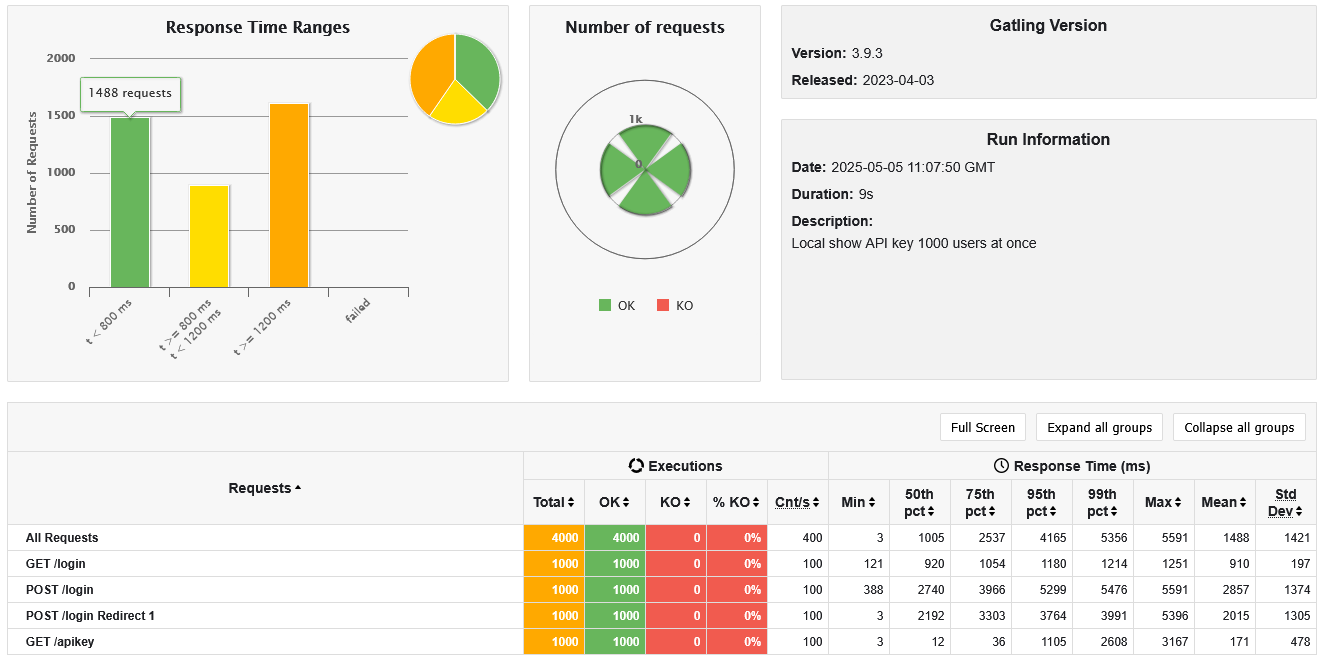

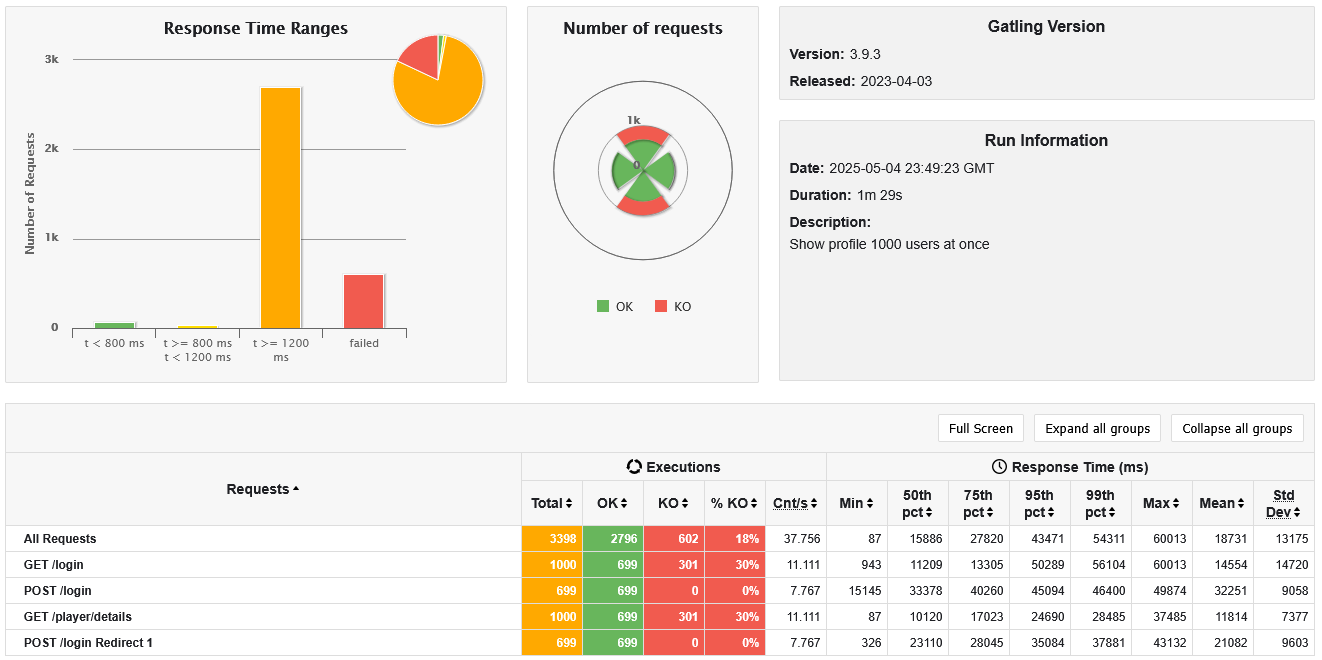

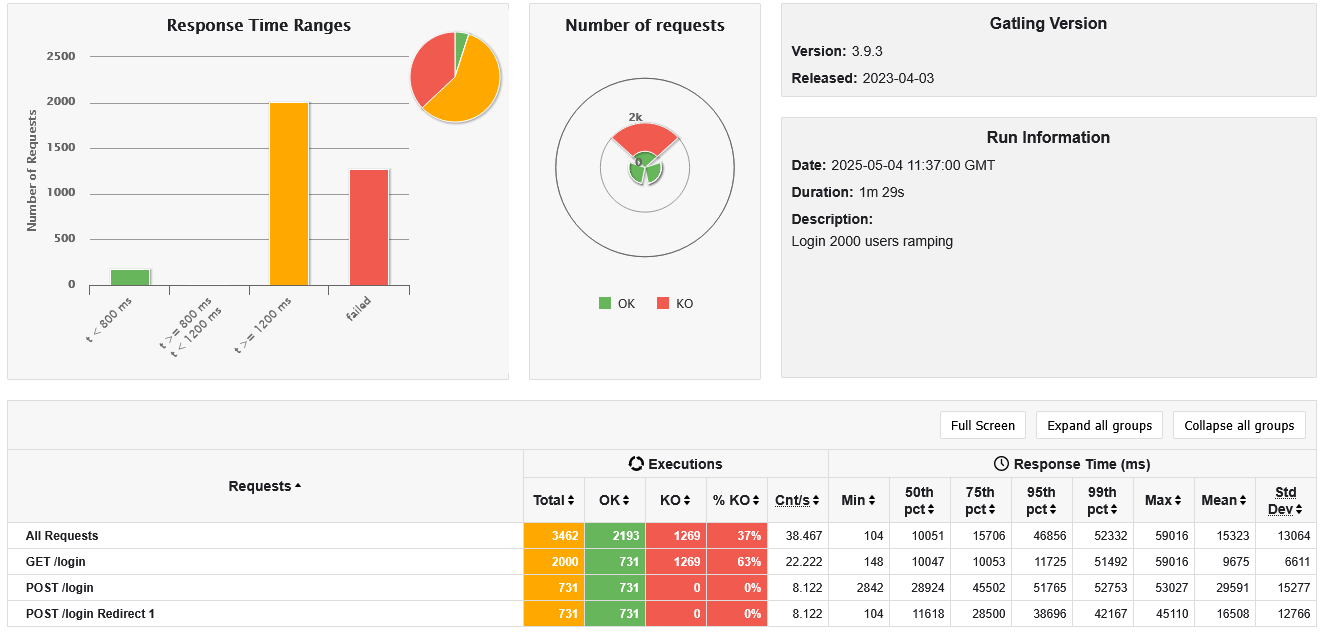

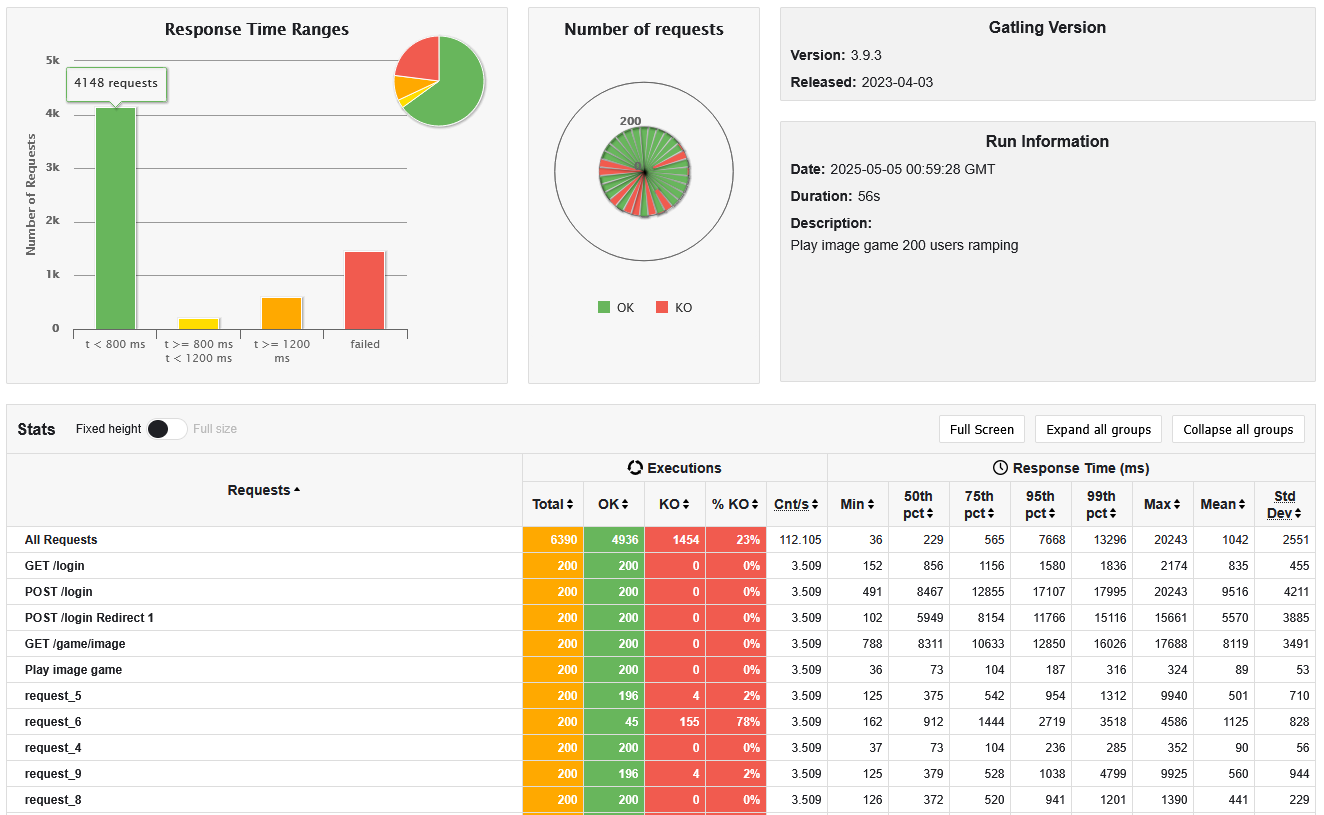

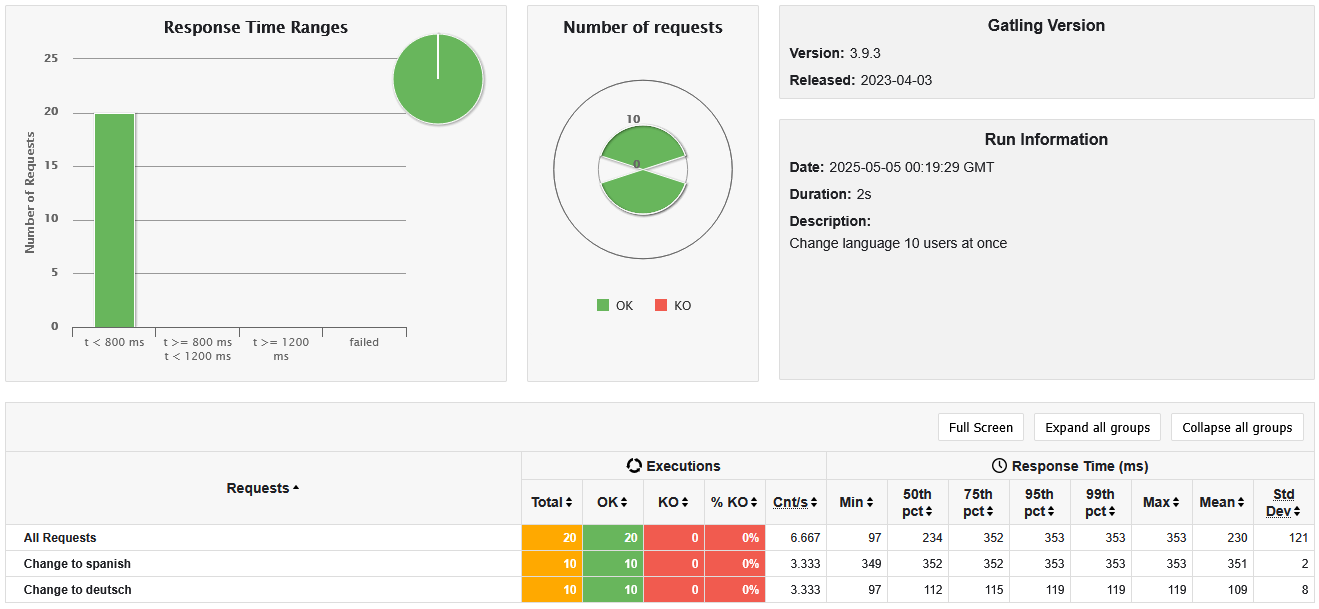

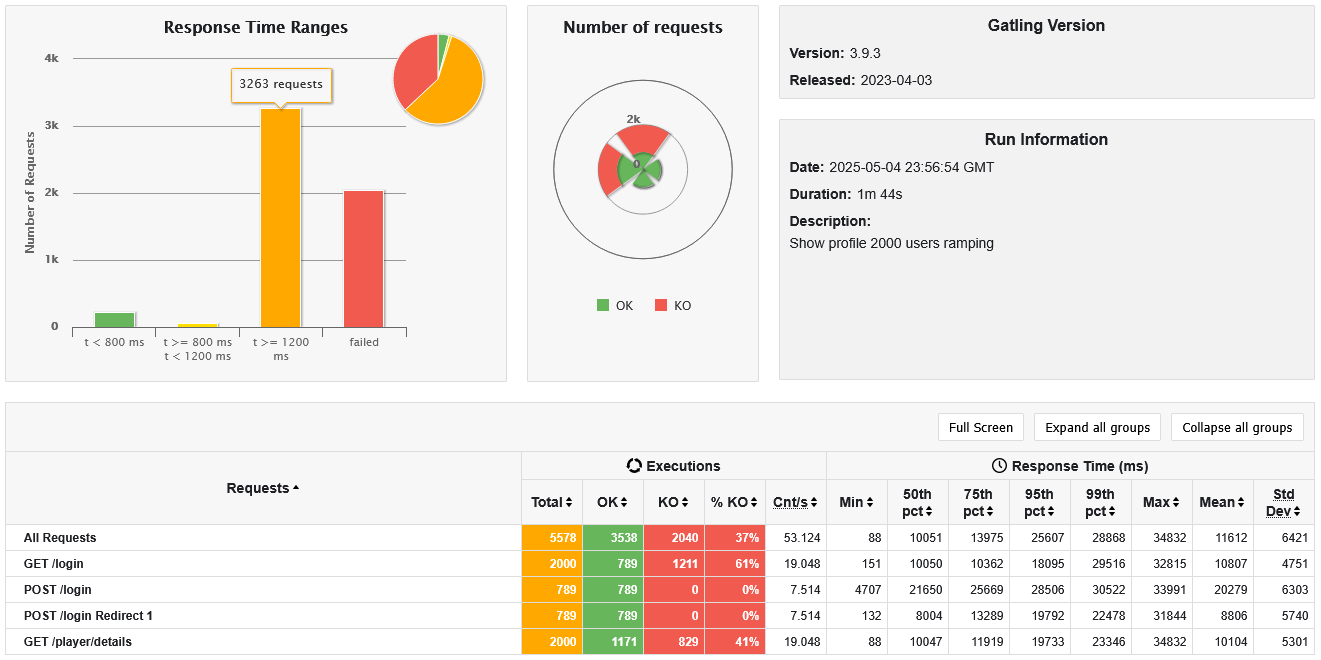

  • Testing Strategy: Unit tests with JUnit, integration tests with Spring Test, and performance testing.

4.6. Justification

These decisions ensure that the system is scalable, secure, and maintainable, leveraging Spring Boot’s powerful ecosystem for enterprise-grade applications while integrating AI-powered hints and automated question generation.

4.7. References

5. Building Block View

Content

The building block view shows the static decomposition of the system into building blocks (modules, components, subsystems, classes, interfaces, packages, libraries, frameworks, layers, partitions, tiers, functions, macros, operations, data structures, …​) as well as their dependencies (relationships, associations, …​)

This view is mandatory for every architecture documentation. In analogy to a house this is the floor plan.

Motivation

Maintain an overview of your source code by making its structure understandable through abstraction.

This allows you to communicate with your stakeholder on an abstract level without disclosing implementation details.

Form

The building block view is a hierarchical collection of black boxes and white boxes (see figure below) and their descriptions.

Hierarchy of building blocks

Level 1 is the white box description of the overall system together with black box descriptions of all contained building blocks.

Level 2 zooms into some building blocks of level 1. Thus it contains the white box description of selected building blocks of level 1, together with black box descriptions of their internal building blocks.

Level 3 zooms into selected building blocks of level 2, and so on.

Further Information

See Building Block View in the arc42 documentation.

5.1. Whitebox Overall System

Here you describe the decomposition of the overall system using the following white box template. It contains

  • an overview diagram

  • a motivation for the decomposition

  • black box descriptions of the contained building blocks. For these we offer you alternatives:

    • use one table for a short and pragmatic overview of all contained building blocks and their interfaces

    • use a list of black box descriptions of the building blocks according to the black box template (see below). Depending on your choice of tool this list could be sub-chapters (in text files), sub-pages (in a Wiki) or nested elements (in a modeling tool).

  • (optional:) important interfaces, that are not explained in the black box templates of a building block, but are very important for understanding the white box. Since there are so many ways to specify interfaces why do not provide a specific template for them. In the worst case you have to specify and describe syntax, semantics, protocols, error handling, restrictions, versions, qualities, necessary compatibilities and many things more. In the best case you will get away with examples or simple signatures.

<Overview Diagram>

Motivation

<text explanation>

Contained Building Blocks

<Description of contained building block (black boxes)>

Important Interfaces

<Description of important interfaces>

Insert your explanations of black boxes from level 1:

If you use tabular form you will only describe your black boxes with name and responsibility according to the following schema:

Name Responsibility

<black box 1>

 <Text>

<black box 2>

 <Text>

If you use a list of black box descriptions then you fill in a separate black box template for every important building block . Its headline is the name of the black box.

5.1.1. <Name black box 1>

Here you describe <black box 1> according the the following black box template:

  • Purpose/Responsibility

  • Interface(s), when they are not extracted as separate paragraphs. This interfaces may include qualities and performance characteristics.

  • (Optional) Quality-/Performance characteristics of the black box, e.g.availability, run time behavior, …​.

  • (Optional) directory/file location

  • (Optional) Fulfilled requirements (if you need traceability to requirements).

  • (Optional) Open issues/problems/risks

<Purpose/Responsibility>

<Interface(s)>

<(Optional) Quality/Performance Characteristics>

<(Optional) Directory/File Location>

<(Optional) Fulfilled Requirements>

<(optional) Open Issues/Problems/Risks>

5.1.2. <Name black box 2>

<black box template>

5.1.3. <Name black box n>

<black box template>

5.1.4. <Name interface 1>

…​

5.1.5. <Name interface m>

5.2. Level 2

Here you can specify the inner structure of (some) building blocks from level 1 as white boxes.

You have to decide which building blocks of your system are important enough to justify such a detailed description. Please prefer relevance over completeness. Specify important, surprising, risky, complex or volatile building blocks. Leave out normal, simple, boring or standardized parts of your system

5.2.1. White Box <building block 1>

…​describes the internal structure of building block 1.

<white box template>

5.2.2. White Box <building block 2>

<white box template>

…​

5.2.3. White Box <building block m>

<white box template>

5.3. Level 3

Here you can specify the inner structure of (some) building blocks from level 2 as white boxes.

When you need more detailed levels of your architecture please copy this part of arc42 for additional levels.

5.3.1. White Box <_building block x.1_>

Specifies the internal structure of building block x.1.

<white box template>

5.3.2. White Box <_building block x.2_>

<white box template>

5.3.3. White Box <_building block y.1_>

<white box template>

6. Runtime View

Contents

The runtime view describes concrete behavior and interactions of the system’s building blocks in form of scenarios from the following areas:

  • important use cases or features: how do building blocks execute them?

  • interactions at critical external interfaces: how do building blocks cooperate with users and neighboring systems?

  • operation and administration: launch, start-up, stop

  • error and exception scenarios

Remark: The main criterion for the choice of possible scenarios (sequences, workflows) is their architectural relevance. It is not important to describe a large number of scenarios. You should rather document a representative selection.

Motivation

You should understand how (instances of) building blocks of your system perform their job and communicate at runtime. You will mainly capture scenarios in your documentation to communicate your architecture to stakeholders that are less willing or able to read and understand the static models (building block view, deployment view).

Form

There are many notations for describing scenarios, e.g.

  • numbered list of steps (in natural language)

  • activity diagrams or flow charts

  • sequence diagrams

  • BPMN or EPCs (event process chains)

  • state machines

  • …​

Further Information

See Runtime View in the arc42 documentation.

6.1. <Runtime Scenario 1>

  • <insert runtime diagram or textual description of the scenario>

  • <insert description of the notable aspects of the interactions between the building block instances depicted in this diagram.>

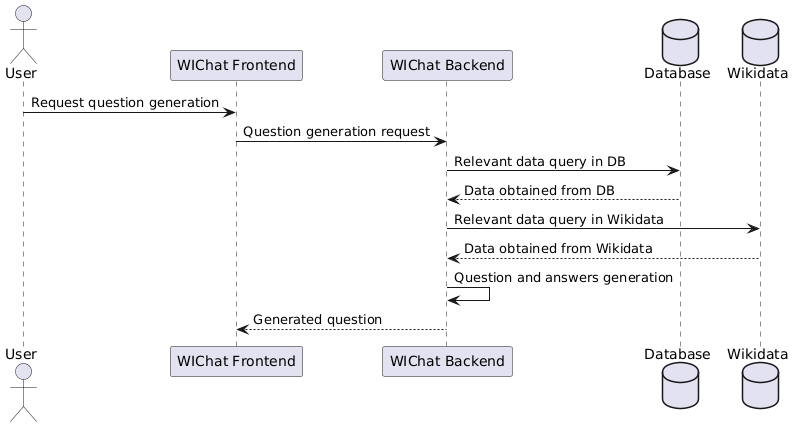

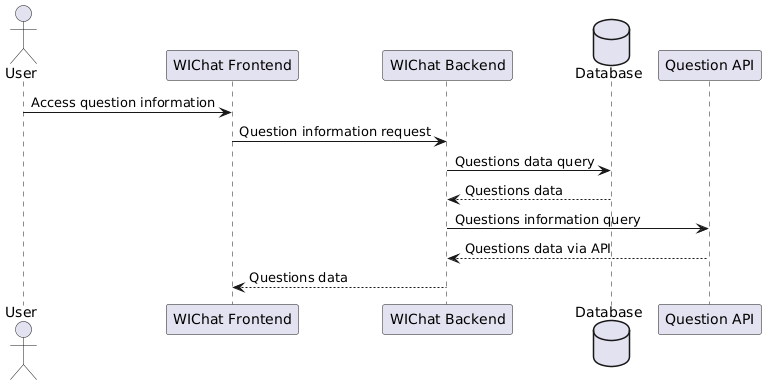

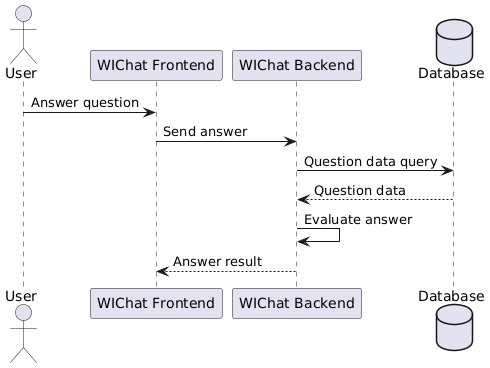

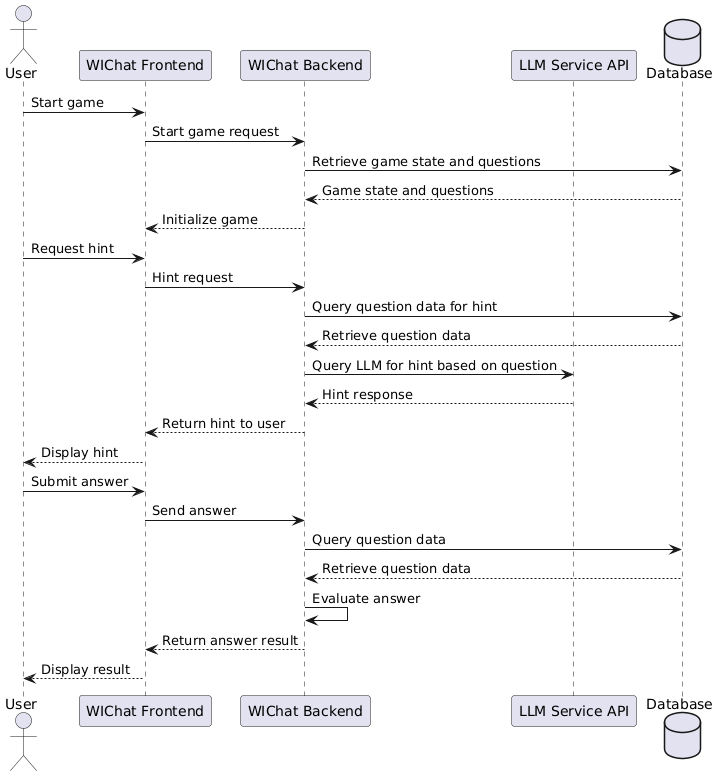

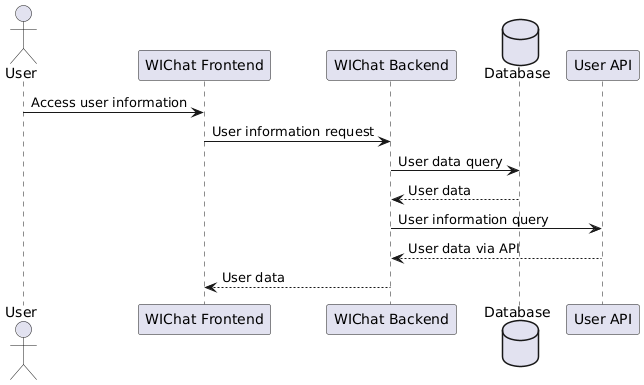

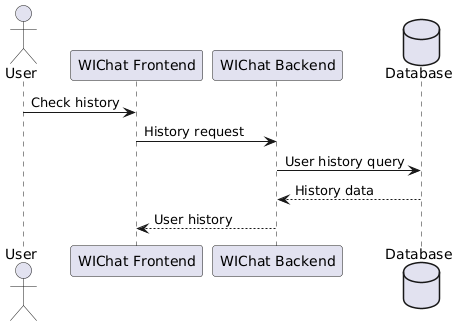

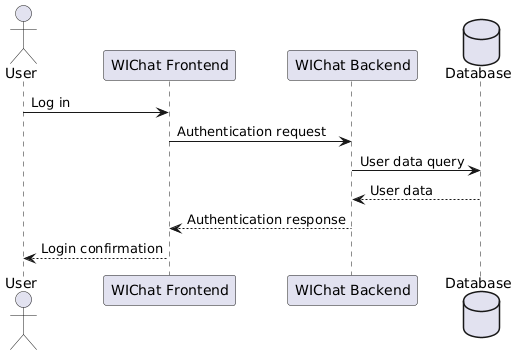

It is possible to use a sequence diagram:

Sequence diagram

6.2. <Runtime Scenario 2>

6.3. …​

6.4. <Runtime Scenario n>

7. Deployment View

Content

The deployment view describes:

  1. technical infrastructure used to execute your system, with infrastructure elements like geographical locations, environments, computers, processors, channels and net topologies as well as other infrastructure elements and

  2. mapping of (software) building blocks to that infrastructure elements.

Often systems are executed in different environments, e.g. development environment, test environment, production environment. In such cases you should document all relevant environments.

Especially document a deployment view if your software is executed as distributed system with more than one computer, processor, server or container or when you design and construct your own hardware processors and chips.

From a software perspective it is sufficient to capture only those elements of an infrastructure that are needed to show a deployment of your building blocks. Hardware architects can go beyond that and describe an infrastructure to any level of detail they need to capture.

Motivation

Software does not run without hardware. This underlying infrastructure can and will influence a system and/or some cross-cutting concepts. Therefore, there is a need to know the infrastructure.

Form

Maybe a highest level deployment diagram is already contained in section 3.2. as technical context with your own infrastructure as ONE black box. In this section one can zoom into this black box using additional deployment diagrams:

  • UML offers deployment diagrams to express that view. Use it, probably with nested diagrams, when your infrastructure is more complex.

  • When your (hardware) stakeholders prefer other kinds of diagrams rather than a deployment diagram, let them use any kind that is able to show nodes and channels of the infrastructure.

Further Information

See Deployment View in the arc42 documentation.

7.1. Infrastructure Level 1

Describe (usually in a combination of diagrams, tables, and text):

  • distribution of a system to multiple locations, environments, computers, processors, .., as well as physical connections between them

  • important justifications or motivations for this deployment structure

  • quality and/or performance features of this infrastructure

  • mapping of software artifacts to elements of this infrastructure

For multiple environments or alternative deployments please copy and adapt this section of arc42 for all relevant environments.

<Overview Diagram>

Motivation

<explanation in text form>

Quality and/or Performance Features

<explanation in text form>

Mapping of Building Blocks to Infrastructure

<description of the mapping>

7.2. Infrastructure Level 2

Here you can include the internal structure of (some) infrastructure elements from level 1.

Please copy the structure from level 1 for each selected element.

7.2.1. <Infrastructure Element 1>

<diagram + explanation>

7.2.2. <Infrastructure Element 2>

<diagram + explanation>

…​

7.2.3. <Infrastructure Element n>

<diagram + explanation>

8. Cross-cutting Concepts

Content

This section describes overall, principal regulations and solution ideas that are relevant in multiple parts (= cross-cutting) of your system. Such concepts are often related to multiple building blocks. They can include many different topics, such as

  • models, especially domain models

  • architecture or design patterns

  • rules for using specific technology

  • principal, often technical decisions of an overarching (= cross-cutting) nature

  • implementation rules

Motivation

Concepts form the basis for conceptual integrity (consistency, homogeneity) of the architecture. Thus, they are an important contribution to achieve inner qualities of your system.

Some of these concepts cannot be assigned to individual building blocks, e.g. security or safety.

Form

The form can be varied:

  • concept papers with any kind of structure

  • cross-cutting model excerpts or scenarios using notations of the architecture views

  • sample implementations, especially for technical concepts

  • reference to typical usage of standard frameworks (e.g. using Hibernate for object/relational mapping)

Structure

A potential (but not mandatory) structure for this section could be:

  • Domain concepts

  • User Experience concepts (UX)

  • Safety and security concepts

  • Architecture and design patterns

  • "Under-the-hood"

  • development concepts

  • operational concepts

Note: it might be difficult to assign individual concepts to one specific topic on this list.

Possible topics for crosscutting concepts
Further Information

See Concepts in the arc42 documentation.

8.1. <Concept 1>

<explanation>

8.2. <Concept 2>

<explanation>

…​

8.3. <Concept n>

<explanation>

9. Architecture Decisions

This section records the key architectural decisions made during the development of the project, ranked by importance. Each decision includes justifications, impacts and evaluated alternatives.

9.1. Decision Table - Index

ID Issue Importance

ADR-001

Inheriting the Project from Last Year

Very High

ADR-002

Git Flow Branching Strategy

Medium

ADR-003

Data Base Management System to use

Medium
Contents

Important, expensive, large scale or risky architecture decisions including rationales. With "decisions" we mean selecting one alternative based on given criteria.

Please use your judgement to decide whether an architectural decision should be documented here in this central section or whether you better document it locally (e.g. within the white box template of one building block).

Avoid redundancy. Refer to section 4, where you already captured the most important decisions of your architecture.

Motivation

Stakeholders of your system should be able to comprehend and retrace your decisions.

Form

Various options:

  • ADR (Documenting Architecture Decisions) for every important decision

  • List or table, ordered by importance and consequences or:

  • more detailed in form of separate sections per decision

Further Information

See Architecture Decisions in the arc42 documentation. There you will find links and examples about ADR.

10. Quality Requirements

Content

This section contains all quality requirements as quality tree with scenarios. The most important ones have already been described in section 1.2. (quality goals)

Here you can also capture quality requirements with lesser priority, which will not create high risks when they are not fully achieved.

Motivation

Since quality requirements will have a lot of influence on architectural decisions you should know for every stakeholder what is really important to them, concrete and measurable.

Further Information

See Quality Requirements in the arc42 documentation.

10.1. Quality Tree

Content

The quality tree (as defined in ATAM – Architecture Tradeoff Analysis Method) with quality/evaluation scenarios as leafs.

Motivation

The tree structure with priorities provides an overview for a sometimes large number of quality requirements.

Form

The quality tree is a high-level overview of the quality goals and requirements:

  • tree-like refinement of the term "quality". Use "quality" or "usefulness" as a root

  • a mind map with quality categories as main branches

In any case the tree should include links to the scenarios of the following section.

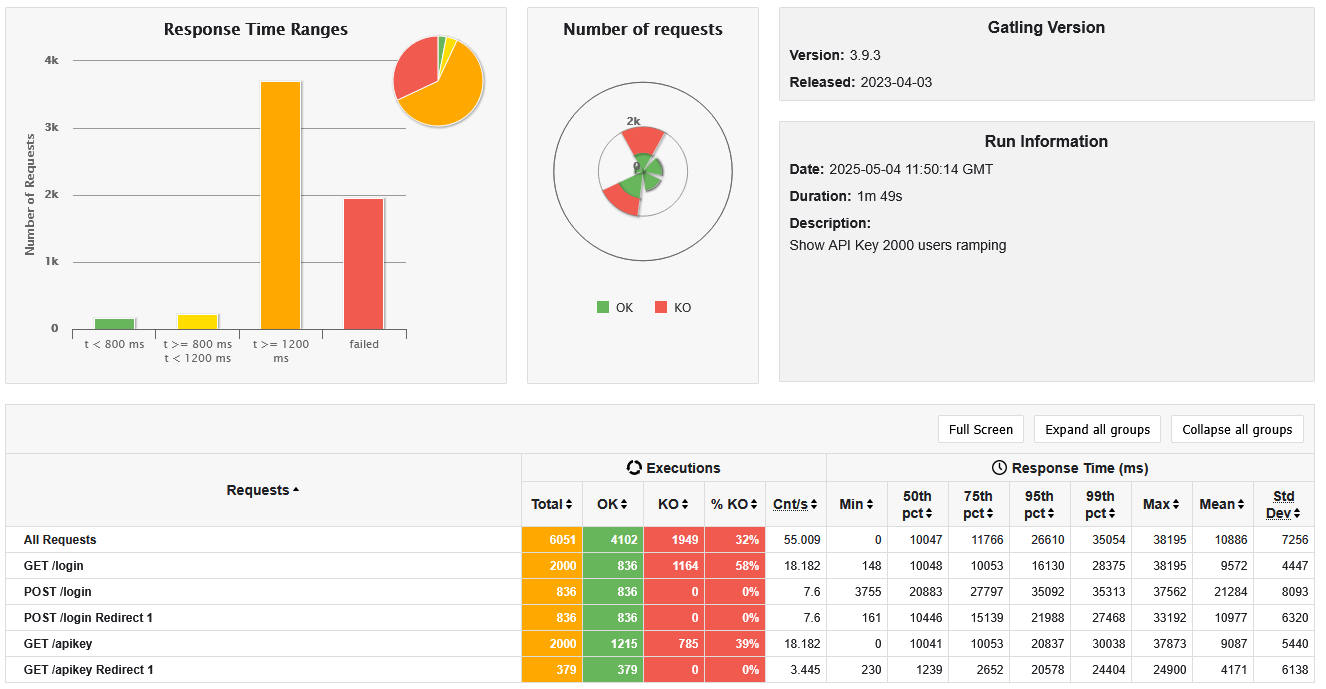

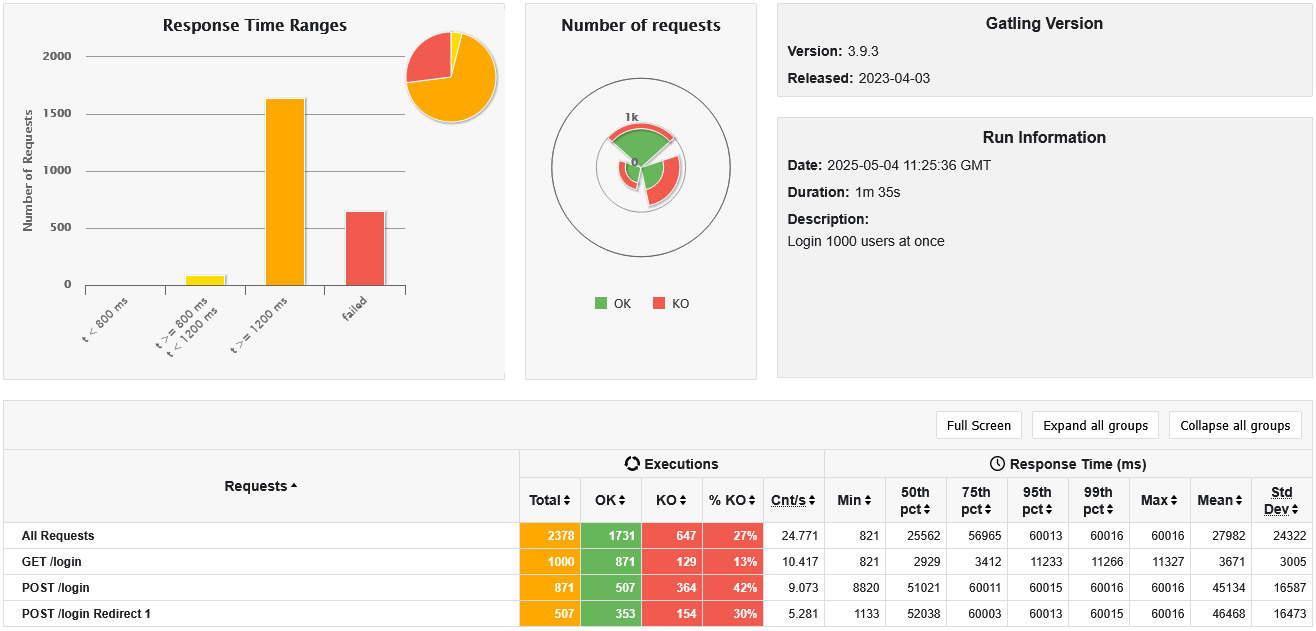

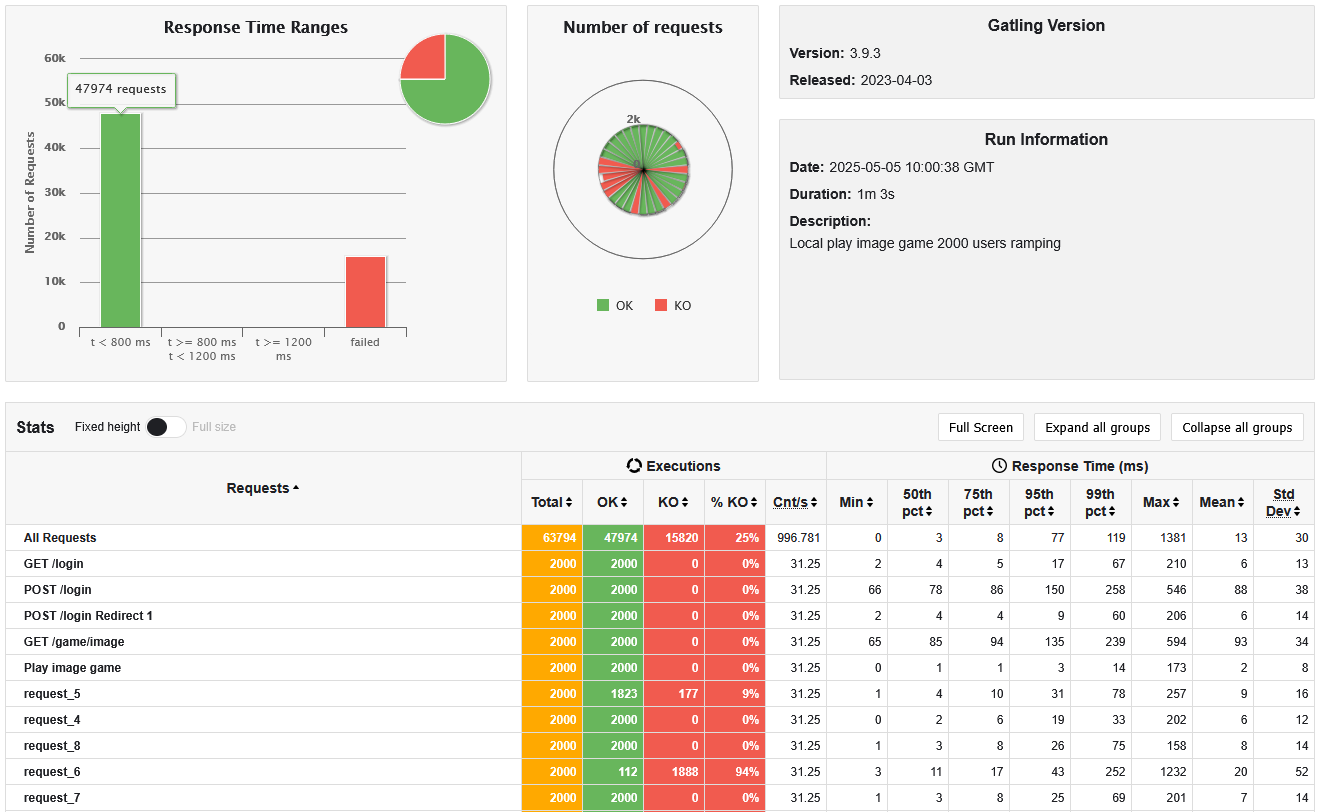

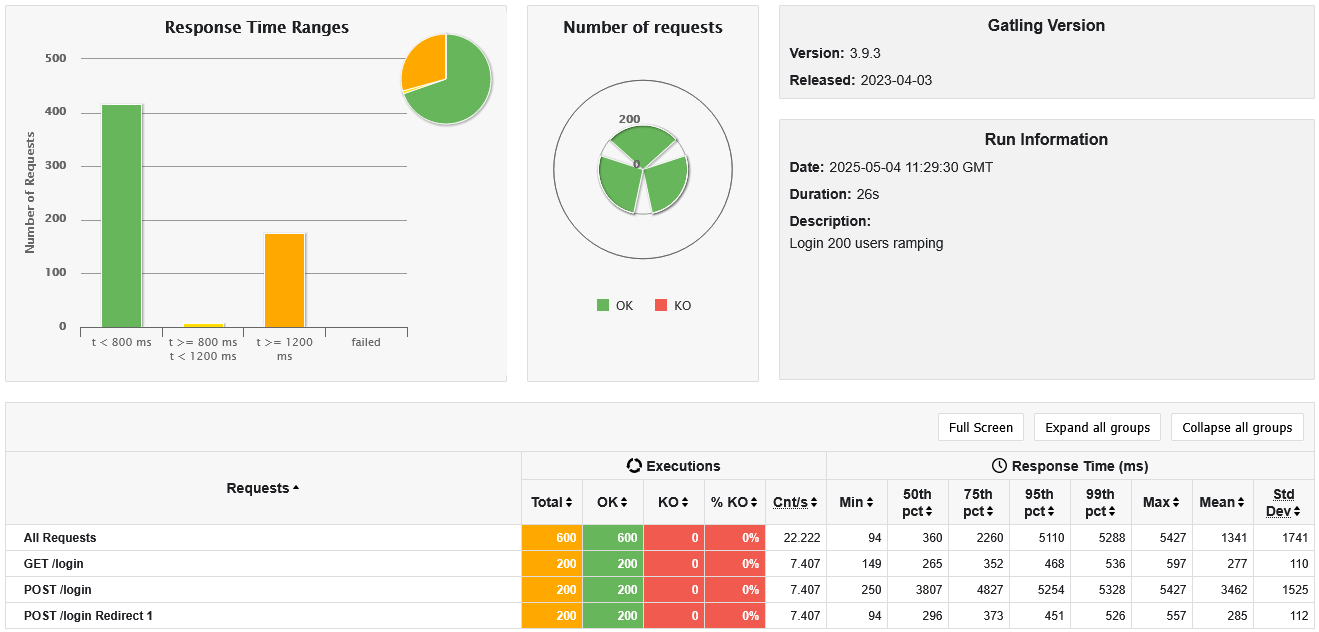

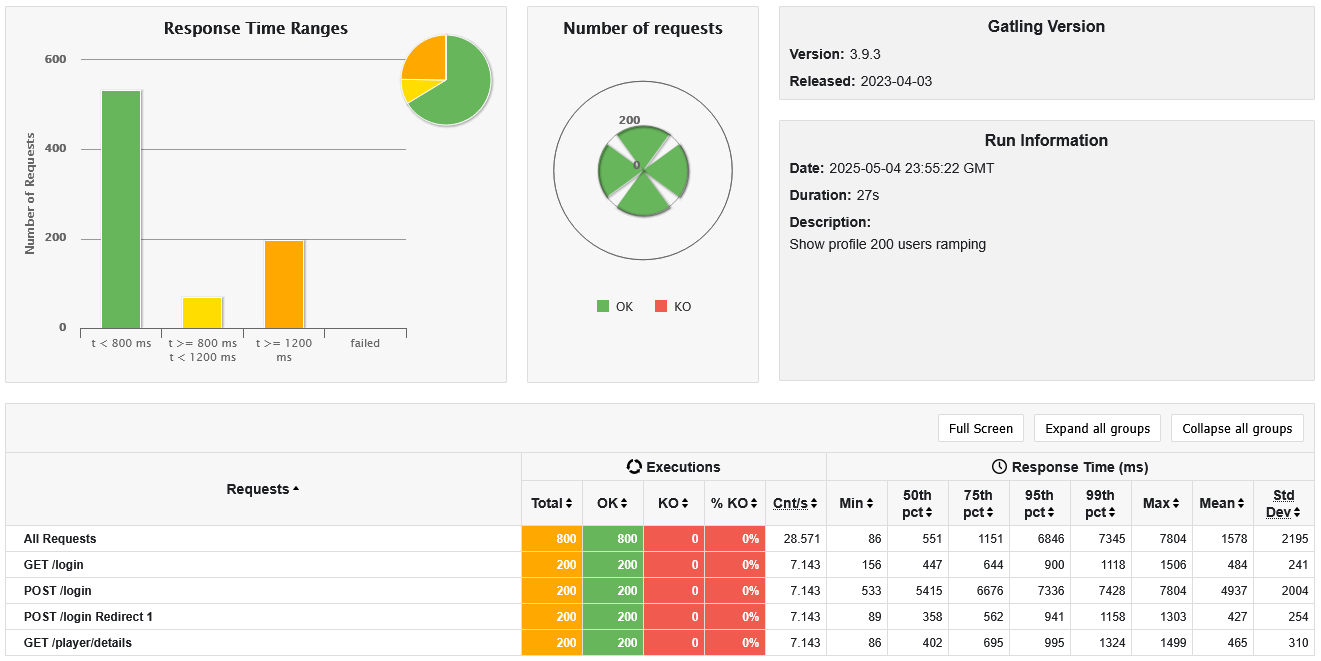

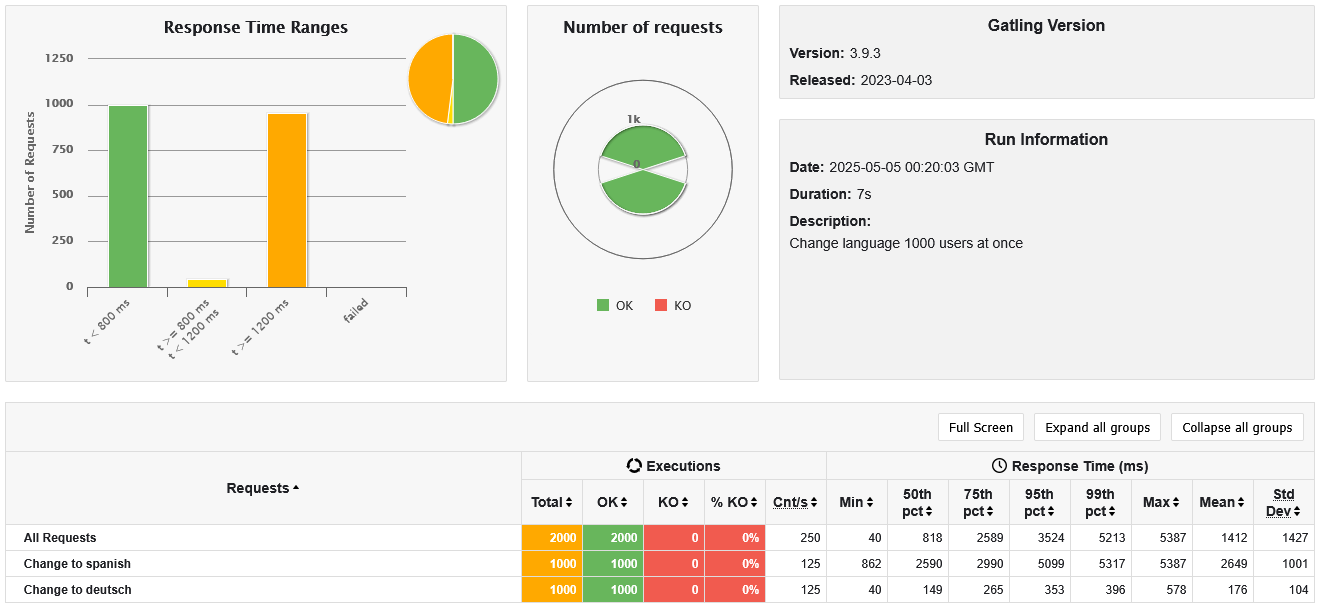

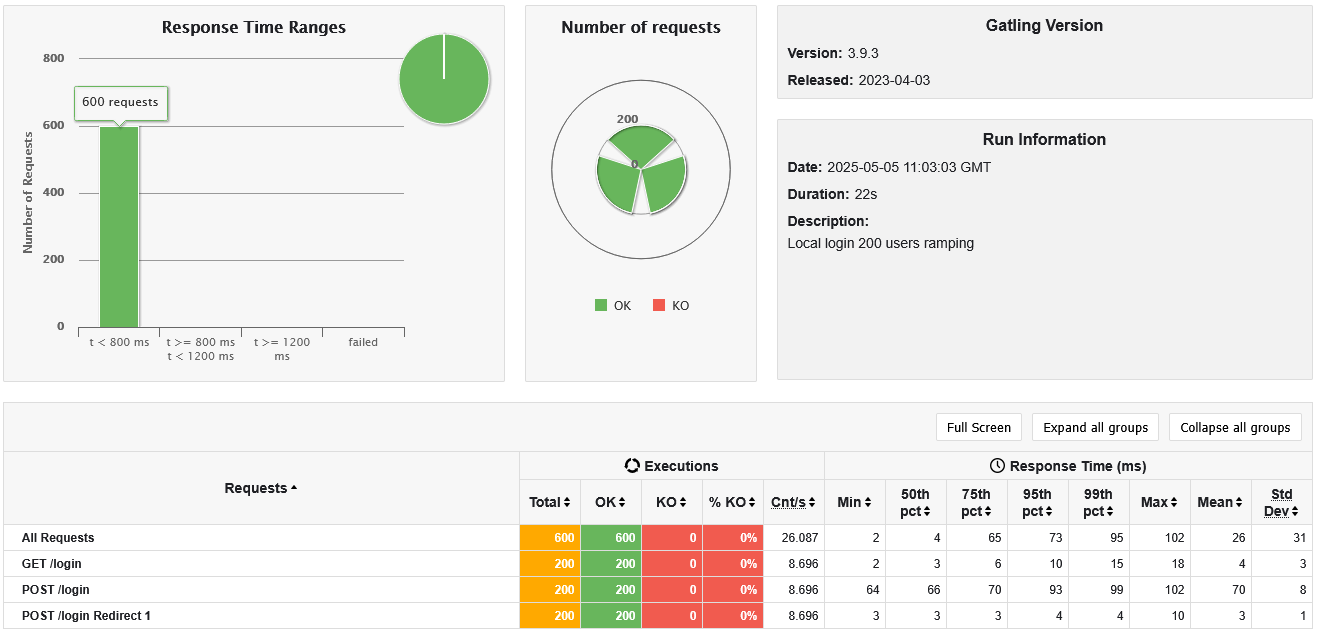

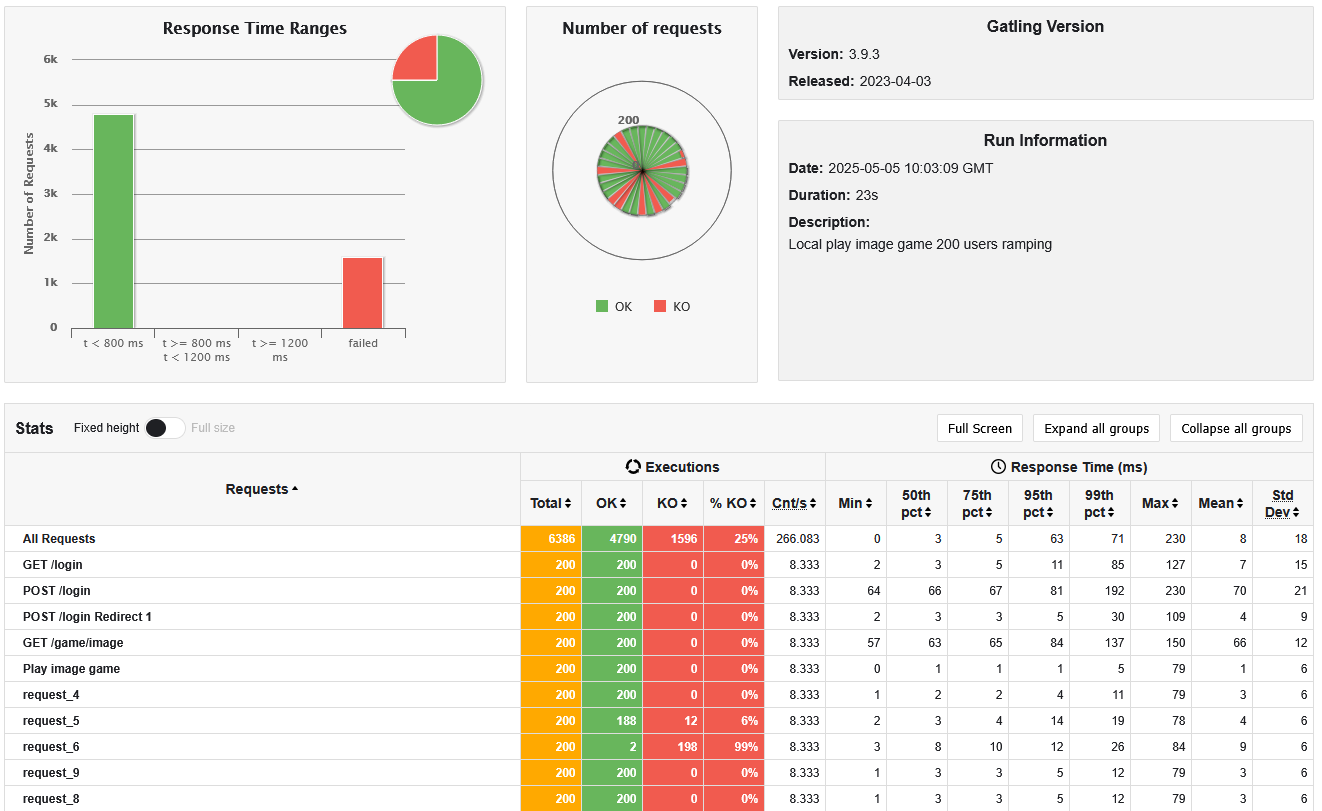

10.2. Quality Scenarios

Contents

Concretization of (sometimes vague or implicit) quality requirements using (quality) scenarios.

These scenarios describe what should happen when a stimulus arrives at the system.

For architects, two kinds of scenarios are important:

  • Usage scenarios (also called application scenarios or use case scenarios) describe the system’s runtime reaction to a certain stimulus. This also includes scenarios that describe the system’s efficiency or performance. Example: The system reacts to a user’s request within one second.

  • Change scenarios describe a modification of the system or of its immediate environment. Example: Additional functionality is implemented or requirements for a quality attribute change.

Motivation

Scenarios make quality requirements concrete and allow to more easily measure or decide whether they are fulfilled.

Especially when you want to assess your architecture using methods like ATAM you need to describe your quality goals (from section 1.2) more precisely down to a level of scenarios that can be discussed and evaluated.

Form

Tabular or free form text.

11. Risks and Technical Debts

Contents

A list of identified technical risks or technical debts, ordered by priority

Motivation

“Risk management is project management for grown-ups” (Tim Lister, Atlantic Systems Guild.)

This should be your motto for systematic detection and evaluation of risks and technical debts in the architecture, which will be needed by management stakeholders (e.g. project managers, product owners) as part of the overall risk analysis and measurement planning.

Form

List of risks and/or technical debts, probably including suggested measures to minimize, mitigate or avoid risks or reduce technical debts.

Further Information

See Risks and Technical Debt in the arc42 documentation.

12. Glossary

Contents

The most important domain and technical terms that your stakeholders use when discussing the system.

You can also see the glossary as source for translations if you work in multi-language teams.

Motivation

You should clearly define your terms, so that all stakeholders

  • have an identical understanding of these terms

  • do not use synonyms and homonyms

Form

A table with columns <Term> and <Definition>.

Potentially more columns in case you need translations.

Further Information

See Glossary in the arc42 documentation.

Term Definition

Wikidata

A free and open knowledge base that provides structured data to support various applications, including WIChat’s question generation.

LLM (Large Language Model)

An advanced AI model capable of understanding and generating human-like text, used in WIChat to provide interactive hints.

API (Application Programming Interface)

A set of protocols and tools that allow different software components to communicate, enabling external access to user and question data.

Gamification

The integration of game-like elements, such as rewards and leaderboards, to enhance user engagement and motivation.

Scalability

The ability of the system to handle increased load and users without significant performance degradation.

Observability

The capability to monitor, log, and analyze system performance and behavior to ensure reliability and quick issue resolution.
