1. Introducción y Objetivos

Describe las necesidades importantes y las fuerzas mayores que los arquitectos del software y el equipo de desarrollo deben considerar Esto incluye

  • Objetivos comerciales subyacentes,

  • Características esenciales,

  • Requisitos funcionales esenciales,

  • Objetivos de calidad para la arquitectura y

  • Partes interesadas relevantes y sus expectativas.

1.1. Descripción de los requisitos

  • Registro e Inicio de Sesión de Usuarios: Los usuarios deberán registrarse para participar en los juegos, o iniciar sesión si ya se han registrado previamente.

  • Generación de Preguntas y Respuestas: El sistema proporcionará preguntas de diversas temáticas. Se generarán automáticamente respuestas correctas e incorrectas utilizando datos de Wikidata. Cada pregunta tendrá 4 posibles respuestas.

  • Interacción con el Sistema de Pistas: Los usuarios podrán interactuar con la aplicación para obtener pistas sobre las preguntas Las pistas serán generadas de forma conversacional mediante un modelo de lenguaje (LLM), accediendo a través de una API.

  • Historial de Participación del Usuario: El sistema registrará el historial de los usuarios. Se almacenarán datos como el número de juegos jugados, preguntas acertadas y falladas, y el tiempo utilizado.

  • Límite de Tiempo para Responder: Cada pregunta tendrá un límite de tiempo determinado para ser respondida por los usuarios.

  • API de Acceso a la Información: Se ofrecerá una API documentada para acceder a la información de los usuarios y a las preguntas generadas. Esto facilitará la integración con otros servicios o plataformas.

  • Generación Automática de Contenidos: Las imágenes de las preguntas y las pistas serán generadas automáticamente utilizando datos de Wikidata. Esto garantizará la variedad y el contexto adecuado de las preguntas.

1.2. Objetivos de Calidad

Contenido

Los tres (máximo cinco) objetivos de calidad más importantes para la arquitectura, cuya satisfacción es de máxima importancia para los principales interesados. Nos referimos realmente a los objetivos de calidad de la arquitectura. No los confundas con los objetivos del proyecto. No son necesariamente idénticos.

Considera esta visión general de posibles temas (basados en el estándar ISO 25010):

Categorías de Requisitos de Calidad
Motivación

Debes conocer los objetivos de calidad de tus interesados más importantes, ya que influirán en decisiones arquitectónicas fundamentales. Asegúrate de ser muy concreto sobre estas cualidades y evita palabras de moda. Si como arquitecto no sabes cómo se juzgará la calidad de tu trabajo…​

Formato

Una tabla con los objetivos de calidad y escenarios concretos, ordenados por prioridades.

Meta Descripción

Rendimiento

El sistema debe garantizar tiempos de respuesta dentro de los límites aceptables, incluso en condiciones de alta demanda. Se optimizará el uso de recursos para minimizar la latencia y mejorar la experiencia del usuario. Además, se implementarán optimizaciones de consultas para reducir la carga en los servidores y mejorar la velocidad de ejecución de las funciones más críticas.

Escalabilidad

El diseño del sistema debe permitir un crecimiento eficiente, asegurando que pueda manejar un aumento en la cantidad de usuarios y datos sin afectar negativamente el rendimiento.

Seguridad

Se establecerán medidas de seguridad para proteger los datos de los usuarios y prevenir accesos no autorizados. Se implementarán mecanismos de autenticación y estándares básicos para garantizar la integridad y privacidad de la información.

Mantenibilidad

El código del sistema debe ser claro, modular y bien documentado para facilitar futuras modificaciones y mejoras. Se adoptarán buenas prácticas de desarrollo, como la separación de responsabilidades, la reutilización de código y la escritura de pruebas unitarias para garantizar la estabilidad del sistema a lo largo del tiempo. Además, se fomentará el uso de herramientas de control de versiones para gestionar los cambios de manera eficiente.

Usabilidad

Para asegurar una experiencia de usuario óptima, el sistema contará con una interfaz intuitiva y coherente. Se priorizará un diseño claro y accesible, facilitando la navegación. Se tendrán en cuenta principios de usabilidad como la predictibilidad, la coherencia visual y la retroalimentación adecuada, de manera que cualquier usuario, independientemente de su experiencia, pueda utilizar el sistema sin dificultades.

1.3. Stakeholders

Contenido

Descripción explícita de los interesados del sistema, es decir, todas las personas, roles u organizaciones que

  • deben conocer la arquitectura

  • les debe convencer la arquitectura

  • deben trabajar con la arquitectura o con el código

  • necesitan la documentación de la arquitectura para su trabajo

  • deben tomar decisiones sobre el sistema o su desarrollo

Motivación

Debe conocer a todas las partes involucradas en el desarrollo del sistema o afectadas por el sistema. De lo contrario, puede tener sorpresas desagradables más adelante en el proceso de desarrollo. Estos interesados determinan el alcance y el nivel de detalle de su trabajo y sus resultados.

Forma

Tabla con nombres de roles, nombres de personas y sus expectativas con respecto a la arquitectura y su documentación.

Rol/Nombre Contacto Expectativas

Cliente

RTVE

Alta disponibilidad, seguridad y cumplimiento de normativas

Compañía Contratada

ChattySw

Entrega a tiempo, dentro del presupuesto y con alta calidad

Equipo de Desarrollo

Andrea Acero Suárez, Ana Díez Díaz, Aitor Gómez Ogueta, Adriana Herrero González, Claudia Nistal Martínez, Javier Sanabria Miranda

Claridad en los requisitos, apoyo continuo del cliente y herramientas adecuadas

Usuarios

Futuros usuarios de la aplicación

Facilidad en el uso, rendimiento eficiente y características claras e innovadoras

2. Restricciones de arquitectura

Contenidos

Cualquier requisito que limite la libertad de los arquitectos de software en sus decisiones de diseño e implementación, o en decisiones sobre el proceso de desarrollo. Estas restricciones a veces van más allá de los sistemas individuales y son aplicables a organizaciones y empresas enteras.

Motivación

Los arquitectos deben saber exactamente dónde tienen libertad en sus decisiones de diseño y dónde deben adherirse a restricciones. Las restricciones siempre deben ser consideradas; sin embargo, pueden ser negociables.

Formato

Tablas simples de restricciones con explicaciones. Si es necesario, puedes subdividirlas en: Restricciones técnicas, Restricciones organizativas y políticas, y convenciones (por ejemplo, guías de programación o versionado, documentación o convenciones de nomenclatura).

Información Adicional

Consulta Architecture Constraints en la documentación de arc42.

Para desarrollar cualquier proyecto de software, aparecen limitaciones y condiciones que debemos tener en cuenta. No tenemos total libertad ni para diseñar el sistema ni para implementarlo. Además, el nivel y la cantidad de restricciones aumentan a medida que el desarrollo evoluciona. Un ejemplo de esto es la mayor dificultad para modificar el modelo de datos a medida que pasa el tiempo.

Es importante que el arquitecto sepa cómo equilibrar los requisitos del proyecto con las restricciones del mismo. Las restricciones encontradas en nuestro proyecto han sido las siguientes:

RESTRICCIONES TÉCNICAS

Restricción Descripción

Uso de un LLM

Se utilizará un modelo de lenguaje grande (LLM) para generar automáticamente preguntas y respuestas y permitir obtener pistas.

Wikidata

Las preguntas y respuestas, así como las pistas, se generarán a partir de los datos de Wikidata.

Docker

La web deberá estar desplegada y accesible a través de la Web.

Generación de Preguntas

Las preguntas tendrán una respuesta correcta y varias incorrectas. Las respuestas se generarán automáticamente.

API Usage

Se utilizarán APIs para acceder a la información de usuarios y preguntas generadas.

Frontend Web

El sistema tendrá al menos un frontend web desplegado y accesible a través de la Web.

Límite de tiempo

Las preguntas deben ser respondidas dentro de un plazo de tiempo determinado.

RESTRICCIONES ORGANIZATIVAS

Restricción Descripción

Gestión de Usuarios

Los usuarios podrán registrarse, iniciar sesión y revisar su historial de participación en el sistema.

Grupos de 4-6 personas

Grupos pequeños de alumnos para realizar el trabajo, elegidos por el profesor.

RESTRICCIONES POLÍTICAS

Restricción Descripción

Tema de la Aplicación

La aplicación será similar al programa "Saber y Ganar", por lo que las preguntas estarán relacionadas con imágenes.

Uso de Arc42

El proyecto seguirá el estándar de documentación Arc42.

Repositorio Público

El código fuente estará alojado en un repositorio público en GitHub, y será accesible para los miembros del equipo.

CONVENCIONES

Restricción Descripción

Convenciones de Nombres

El nombre de la aplicación será WIChat.

Uso de Git y Github

Se utilizará Git como sistema de control de versiones, y el repositorio será alojado en GitHub.

Documentación Arc42

Se seguirá la convención de documentación Arc42.

3. Contexto y Alcance

Contenido

El ámbito y contexto del sistema, como su nombre lo indica, delimita el sistema (es decir, su ámbito) de todos sus interlocutores (sistemas y usuarios vecinos, es decir, el contexto del sistema). De este modo, especifica las interfaces externas.

Si es necesario, diferencie el contexto empresarial (entradas y salidas específicas del dominio) del contexto técnico (canales, protocolos, hardware)..

Motivación

Las interfaces de dominio y las interfaces técnicas con los socios de comunicación se encuentran entre los aspectos más críticos de su sistema. Asegúrese de comprenderlas por completo.

Formato

Varias opciones:

  • Varios diagramas de contexto

  • Listas de socios de comunicación y sus interfaces.

Más información

Vea Context and Scope en la documentación arc42.

3.1. Contexto de Negocio

png
Elemento Descripción

Usuario

El concursante que interactúa con la aplicación, juega y recibe pistas.

Base de Datos

Sistema de almacenamiento que guarda información relevante sobre el usuario.

WIChat

Aplicación web principal donde se desarrolla el juego.

Wikidata

Fuente de donde se extraen las preguntas, las imágenes y las respuestas.

LLM_API

API que integra un modelo de lenguaje que se utiliza para generar pistas dinámicas y conversacionales que ayudan al concursante a responder las preguntas.

Contenido

Especificación de todos los interlocutores (usuarios, sistemas informáticos, etc.) con explicaciones de las entradas y salidas o interfaces específicas del dominio. Opcionalmente, puede añadir formatos o protocolos de comunicación específicos del dominio.

Motivación

Todas las partes interesadas deben comprender qué datos se intercambian con el entorno del sistema.

Formato

Todo tipo de diagramas que muestran el sistema como una caja negra y especifican las interfaces del dominio con los socios de comunicación.

Como alternativa (o adicionalmente), puede utilizar una tabla. El título de la tabla es el nombre de su sistema, las tres columnas contienen el nombre del interlocutor, las entradas y las salidas.

3.2. Contexto Técnico

Contenido

Interfaces técnicas (canales y medios de transmisión) que juntan el sistema con su entorno. Además un mapeo del dominio especifico de entrada/salida a los canales, es decir una explicación de qué entrada salida usa cada canal.

Motivación

Muchos stakeholders toman decisiones arquitectónicas basadas en las interfaces técnicas entre el sistema y su contexto. En especial, los diseñadores de hardware o infraestructura deciden estas interfaces técnicas.

Forma

E.g. Diagrama UML de despliegue describiendo canales con los sistemas vecinos, junto a una tabla de mapeo mostrando las relaciones entre canales y la entrada/salida.

3.2.1. Diagrama de Despliegue

Diagrama de Despliegue

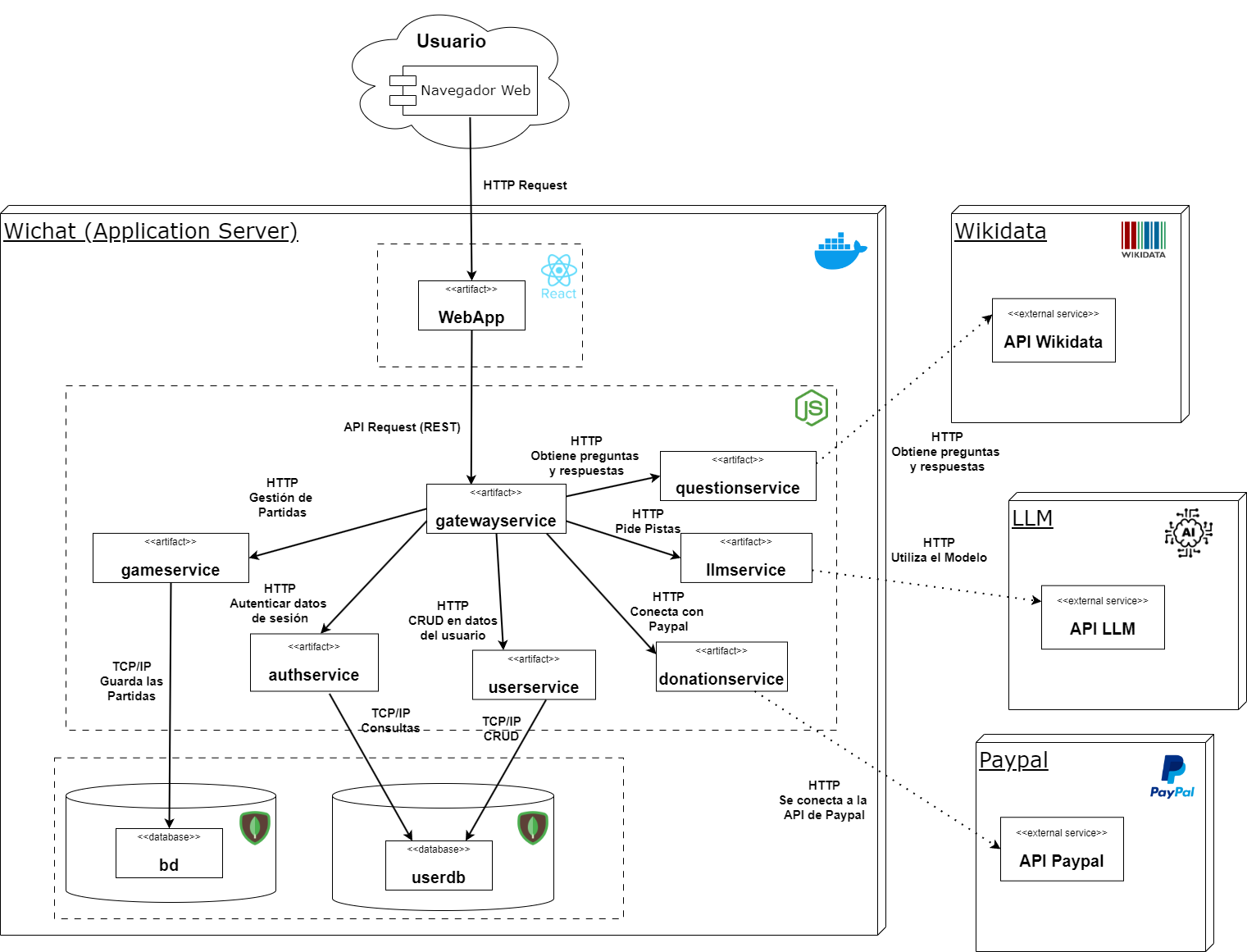

3.2.2. Explicación de Interfaces Técnicas

Gateway

API que hace de enlace entre las distintas partes de la aplicación

Aplicación React

Aplicación web hecha con React que aporta al usuario una interfaz con la que interactuar y por medio de la cual hacer las peticiones correspondientes al backend

Base de Datos de Usuarios

Base de datos que almacena toda la información referente a los usuarios como su nombre de usuario, sus datos de logIn, su histórico de partidas, etc

Servicio de Autenticación

Interfaz que se comunica con la base de datos de usuarios a fin de comprobar si los datos introducidos de inicio de sesión se corresponden con un usuario relaciones

Servicio de Usuario

Interfaz que se comunica con la base de datos de usuarios a fin de consultar y actualizar la información referente a los usuarios y sus partidas

Servicio LLM

Servicio que, por medio de las pistas obtenidas de WikiData, procesará y responderá a las pistas que pida el usuario

API LLM

Servicio externo que nos permite acceder al modelo de lenguaje y utilizarlo

API WikiData

API del servicio web WikiData que aportará a la aplicación las imágenes para el juego, las respuestas a las mismas y las pistas que el LLM utilizará para responder a los usuarios

3.2.3. Mapeo de Canales de Entrada/salida

Canal Entrada Salida

Aplicación React

Peticiones HTTP del usuario indicando sus acciones

Responde con información a través de la interfaz.

Gateway

Peticiones REST de webapp para obtener datos como imágenes y respuestas o solicitar operaciones como iniciar sesión

Respuesta con la información solicitada.

Servicio Autenticación

Datos de inicio de sesión de un usuario

Consulta de comprobación de los datos de inicio de sesión

Servicio Usuario

Datos a consultar o insertar en la base de datos

Consulta o inserción completa a la base de datos

Base de Datos de Usuarios

Instrucciones SQL para consultas o insercioes

Resultado de las consultas o confirmación de las inserciones

Servicio LLM

Prompt de solicitud de pistas

Pista generada por el modelo a partir de información de Wikidata

API LLM

Prompt de solicitu de pistas

Respuesta del modelo de lenguaje generada a partir del prompt

API Wikidata

Solicitud de imagenes o pistas

Imagen nueva, respuesta o pista sobre la imagen ofrecida con anterioridad

4. Solution Strategy

Contents

A short summary and explanation of the fundamental decisions and solution strategies, that shape system architecture. It includes

  • technology decisions

  • decisions about the top-level decomposition of the system, e.g. usage of an architectural pattern or design pattern

  • decisions on how to achieve key quality goals

  • relevant organizational decisions, e.g. selecting a development process or delegating certain tasks to third parties.

Motivation

These decisions form the cornerstones for your architecture. They are the foundation for many other detailed decisions or implementation rules.

Form

Keep the explanations of such key decisions short.

Motivate what was decided and why it was decided that way, based upon problem statement, quality goals and key constraints. Refer to details in the following sections.

Further Information

See Solution Strategy in the arc42 documentation.

5. Building Block View

Content

The building block view shows the static decomposition of the system into building blocks (modules, components, subsystems, classes, interfaces, packages, libraries, frameworks, layers, partitions, tiers, functions, macros, operations, data structures, …​) as well as their dependencies (relationships, associations, …​)

This view is mandatory for every architecture documentation. In analogy to a house this is the floor plan.

Motivation

Maintain an overview of your source code by making its structure understandable through abstraction.

This allows you to communicate with your stakeholder on an abstract level without disclosing implementation details.

Form

The building block view is a hierarchical collection of black boxes and white boxes (see figure below) and their descriptions.

Hierarchy of building blocks

Level 1 is the white box description of the overall system together with black box descriptions of all contained building blocks.

Level 2 zooms into some building blocks of level 1. Thus it contains the white box description of selected building blocks of level 1, together with black box descriptions of their internal building blocks.

Level 3 zooms into selected building blocks of level 2, and so on.

Further Information

See Building Block View in the arc42 documentation.

5.1. Whitebox Overall System

Here you describe the decomposition of the overall system using the following white box template. It contains

  • an overview diagram

  • a motivation for the decomposition

  • black box descriptions of the contained building blocks. For these we offer you alternatives:

    • use one table for a short and pragmatic overview of all contained building blocks and their interfaces

    • use a list of black box descriptions of the building blocks according to the black box template (see below). Depending on your choice of tool this list could be sub-chapters (in text files), sub-pages (in a Wiki) or nested elements (in a modeling tool).

  • (optional:) important interfaces, that are not explained in the black box templates of a building block, but are very important for understanding the white box. Since there are so many ways to specify interfaces why do not provide a specific template for them. In the worst case you have to specify and describe syntax, semantics, protocols, error handling, restrictions, versions, qualities, necessary compatibilities and many things more. In the best case you will get away with examples or simple signatures.

<Overview Diagram>

Motivation

<text explanation>

Contained Building Blocks

<Description of contained building block (black boxes)>

Important Interfaces

<Description of important interfaces>

Insert your explanations of black boxes from level 1:

If you use tabular form you will only describe your black boxes with name and responsibility according to the following schema:

Name Responsibility

<black box 1>

 <Text>

<black box 2>

 <Text>

If you use a list of black box descriptions then you fill in a separate black box template for every important building block . Its headline is the name of the black box.

5.1.1. <Name black box 1>

Here you describe <black box 1> according the the following black box template:

  • Purpose/Responsibility

  • Interface(s), when they are not extracted as separate paragraphs. This interfaces may include qualities and performance characteristics.

  • (Optional) Quality-/Performance characteristics of the black box, e.g.availability, run time behavior, …​.

  • (Optional) directory/file location

  • (Optional) Fulfilled requirements (if you need traceability to requirements).

  • (Optional) Open issues/problems/risks

<Purpose/Responsibility>

<Interface(s)>

<(Optional) Quality/Performance Characteristics>

<(Optional) Directory/File Location>

<(Optional) Fulfilled Requirements>

<(optional) Open Issues/Problems/Risks>

5.1.2. <Name black box 2>

<black box template>

5.1.3. <Name black box n>

<black box template>

5.1.4. <Name interface 1>

…​

5.1.5. <Name interface m>

5.2. Level 2

Here you can specify the inner structure of (some) building blocks from level 1 as white boxes.

You have to decide which building blocks of your system are important enough to justify such a detailed description. Please prefer relevance over completeness. Specify important, surprising, risky, complex or volatile building blocks. Leave out normal, simple, boring or standardized parts of your system

5.2.1. White Box <building block 1>

…​describes the internal structure of building block 1.

<white box template>

5.2.2. White Box <building block 2>

<white box template>

…​

5.2.3. White Box <building block m>

<white box template>

5.3. Level 3

Here you can specify the inner structure of (some) building blocks from level 2 as white boxes.

When you need more detailed levels of your architecture please copy this part of arc42 for additional levels.

5.3.1. White Box <_building block x.1_>

Specifies the internal structure of building block x.1.

<white box template>

5.3.2. White Box <_building block x.2_>

<white box template>

5.3.3. White Box <_building block y.1_>

<white box template>

6. Runtime View

Contents

The runtime view describes concrete behavior and interactions of the system’s building blocks in form of scenarios from the following areas:

  • important use cases or features: how do building blocks execute them?

  • interactions at critical external interfaces: how do building blocks cooperate with users and neighboring systems?

  • operation and administration: launch, start-up, stop

  • error and exception scenarios

Remark: The main criterion for the choice of possible scenarios (sequences, workflows) is their architectural relevance. It is not important to describe a large number of scenarios. You should rather document a representative selection.

Motivation

You should understand how (instances of) building blocks of your system perform their job and communicate at runtime. You will mainly capture scenarios in your documentation to communicate your architecture to stakeholders that are less willing or able to read and understand the static models (building block view, deployment view).

Form

There are many notations for describing scenarios, e.g.

  • numbered list of steps (in natural language)

  • activity diagrams or flow charts

  • sequence diagrams

  • BPMN or EPCs (event process chains)

  • state machines

  • …​

Further Information

See Runtime View in the arc42 documentation.

6.1. <Runtime Scenario 1>

  • <insert runtime diagram or textual description of the scenario>

  • <insert description of the notable aspects of the interactions between the building block instances depicted in this diagram.>

It is possible to use a sequence diagram:

Sequence diagram

6.2. <Runtime Scenario 2>

6.3. …​

6.4. <Runtime Scenario n>

7. Deployment View

Content

The deployment view describes:

  1. technical infrastructure used to execute your system, with infrastructure elements like geographical locations, environments, computers, processors, channels and net topologies as well as other infrastructure elements and

  2. mapping of (software) building blocks to that infrastructure elements.

Often systems are executed in different environments, e.g. development environment, test environment, production environment. In such cases you should document all relevant environments.

Especially document a deployment view if your software is executed as distributed system with more than one computer, processor, server or container or when you design and construct your own hardware processors and chips.

From a software perspective it is sufficient to capture only those elements of an infrastructure that are needed to show a deployment of your building blocks. Hardware architects can go beyond that and describe an infrastructure to any level of detail they need to capture.

Motivation

Software does not run without hardware. This underlying infrastructure can and will influence a system and/or some cross-cutting concepts. Therefore, there is a need to know the infrastructure.

Form

Maybe a highest level deployment diagram is already contained in section 3.2. as technical context with your own infrastructure as ONE black box. In this section one can zoom into this black box using additional deployment diagrams:

  • UML offers deployment diagrams to express that view. Use it, probably with nested diagrams, when your infrastructure is more complex.

  • When your (hardware) stakeholders prefer other kinds of diagrams rather than a deployment diagram, let them use any kind that is able to show nodes and channels of the infrastructure.

Further Information

See Deployment View in the arc42 documentation.

7.1. Infrastructure Level 1

Describe (usually in a combination of diagrams, tables, and text):

  • distribution of a system to multiple locations, environments, computers, processors, .., as well as physical connections between them

  • important justifications or motivations for this deployment structure

  • quality and/or performance features of this infrastructure

  • mapping of software artifacts to elements of this infrastructure

For multiple environments or alternative deployments please copy and adapt this section of arc42 for all relevant environments.

<Overview Diagram>

Motivation

<explanation in text form>

Quality and/or Performance Features

<explanation in text form>

Mapping of Building Blocks to Infrastructure

<description of the mapping>

7.2. Infrastructure Level 2

Here you can include the internal structure of (some) infrastructure elements from level 1.

Please copy the structure from level 1 for each selected element.

7.2.1. <Infrastructure Element 1>

<diagram + explanation>

7.2.2. <Infrastructure Element 2>

<diagram + explanation>

…​

7.2.3. <Infrastructure Element n>

<diagram + explanation>

8. Cross-cutting Concepts

Content

This section describes overall, principal regulations and solution ideas that are relevant in multiple parts (= cross-cutting) of your system. Such concepts are often related to multiple building blocks. They can include many different topics, such as

  • models, especially domain models

  • architecture or design patterns

  • rules for using specific technology

  • principal, often technical decisions of an overarching (= cross-cutting) nature

  • implementation rules

Motivation

Concepts form the basis for conceptual integrity (consistency, homogeneity) of the architecture. Thus, they are an important contribution to achieve inner qualities of your system.

Some of these concepts cannot be assigned to individual building blocks, e.g. security or safety.

Form

The form can be varied:

  • concept papers with any kind of structure

  • cross-cutting model excerpts or scenarios using notations of the architecture views

  • sample implementations, especially for technical concepts

  • reference to typical usage of standard frameworks (e.g. using Hibernate for object/relational mapping)

Structure

A potential (but not mandatory) structure for this section could be:

  • Domain concepts

  • User Experience concepts (UX)

  • Safety and security concepts

  • Architecture and design patterns

  • "Under-the-hood"

  • development concepts

  • operational concepts

Note: it might be difficult to assign individual concepts to one specific topic on this list.

Possible topics for crosscutting concepts
Further Information

See Concepts in the arc42 documentation.

8.1. <Concept 1>

<explanation>

8.2. <Concept 2>

<explanation>

…​

8.3. <Concept n>

<explanation>

9. Architecture Decisions

Contents

Important, expensive, large scale or risky architecture decisions including rationales. With "decisions" we mean selecting one alternative based on given criteria.

Please use your judgement to decide whether an architectural decision should be documented here in this central section or whether you better document it locally (e.g. within the white box template of one building block).

Avoid redundancy. Refer to section 4, where you already captured the most important decisions of your architecture.

Motivation

Stakeholders of your system should be able to comprehend and retrace your decisions.

Form

Various options:

  • ADR (Documenting Architecture Decisions) for every important decision

  • List or table, ordered by importance and consequences or:

  • more detailed in form of separate sections per decision

Further Information

See Architecture Decisions in the arc42 documentation. There you will find links and examples about ADR.

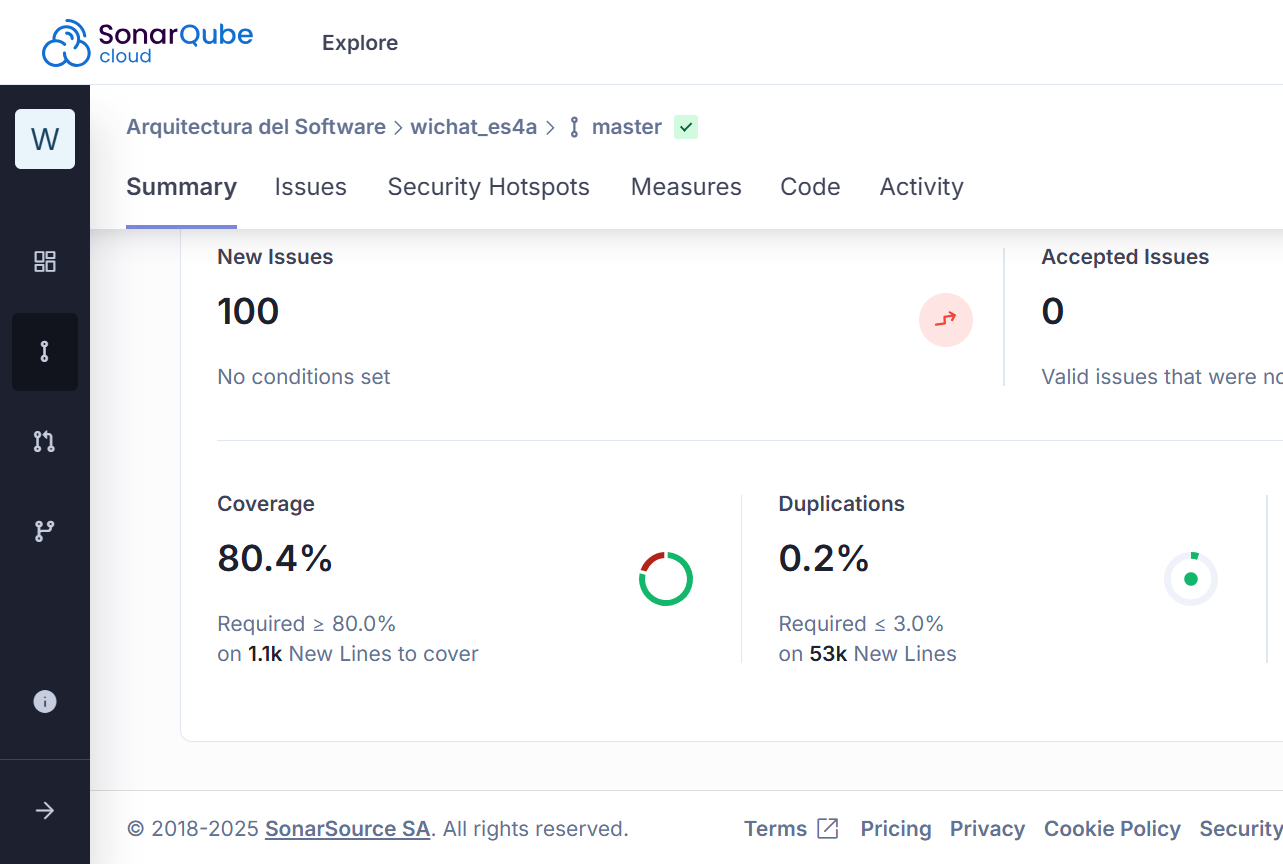

10. Quality Requirements

Content

This section contains all quality requirements as quality tree with scenarios. The most important ones have already been described in section 1.2. (quality goals)

Here you can also capture quality requirements with lesser priority, which will not create high risks when they are not fully achieved.

Motivation

Since quality requirements will have a lot of influence on architectural decisions you should know for every stakeholder what is really important to them, concrete and measurable.

Further Information

See Quality Requirements in the arc42 documentation.

10.1. Quality Tree

Content

The quality tree (as defined in ATAM – Architecture Tradeoff Analysis Method) with quality/evaluation scenarios as leafs.

Motivation

The tree structure with priorities provides an overview for a sometimes large number of quality requirements.

Form

The quality tree is a high-level overview of the quality goals and requirements:

  • tree-like refinement of the term "quality". Use "quality" or "usefulness" as a root

  • a mind map with quality categories as main branches

In any case the tree should include links to the scenarios of the following section.

10.2. Quality Scenarios

Contents

Concretization of (sometimes vague or implicit) quality requirements using (quality) scenarios.

These scenarios describe what should happen when a stimulus arrives at the system.

For architects, two kinds of scenarios are important:

  • Usage scenarios (also called application scenarios or use case scenarios) describe the system’s runtime reaction to a certain stimulus. This also includes scenarios that describe the system’s efficiency or performance. Example: The system reacts to a user’s request within one second.

  • Change scenarios describe a modification of the system or of its immediate environment. Example: Additional functionality is implemented or requirements for a quality attribute change.

Motivation

Scenarios make quality requirements concrete and allow to more easily measure or decide whether they are fulfilled.

Especially when you want to assess your architecture using methods like ATAM you need to describe your quality goals (from section 1.2) more precisely down to a level of scenarios that can be discussed and evaluated.

Form

Tabular or free form text.

11. Risks and Technical Debts

Contents

A list of identified technical risks or technical debts, ordered by priority

Motivation

“Risk management is project management for grown-ups” (Tim Lister, Atlantic Systems Guild.)

This should be your motto for systematic detection and evaluation of risks and technical debts in the architecture, which will be needed by management stakeholders (e.g. project managers, product owners) as part of the overall risk analysis and measurement planning.

Form

List of risks and/or technical debts, probably including suggested measures to minimize, mitigate or avoid risks or reduce technical debts.

Further Information

See Risks and Technical Debt in the arc42 documentation.

12. Glossary

Contents

The most important domain and technical terms that your stakeholders use when discussing the system.

You can also see the glossary as source for translations if you work in multi-language teams.

Motivation

You should clearly define your terms, so that all stakeholders

  • have an identical understanding of these terms

  • do not use synonyms and homonyms

Form

A table with columns <Term> and <Definition>.

Potentially more columns in case you need translations.

Further Information

See Glossary in the arc42 documentation.

Term Definition

<Term-1>

<definition-1>

<Term-2>

<definition-2>
